8Ch SD/HD H.264 Encoder With Hdmi Dvb-t Modulator and ip Streamer

HDMI To IP H.264 Encoder

built-in Multiplexer, RF Modulator and RF Up-Conversion

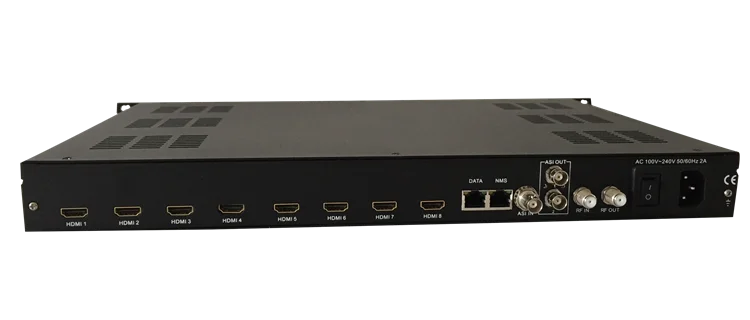

EMI3381 is a Cost-effective,high definition MPEG4 AVC broadcast distribution encoder with QAM modulation and RF up- conversion built in.It has equipped with up to 8 channels of HDMI inputs, 1 ASI input, and output with 2 ASI ports, 1 UDP IP port, and 1 RF port.

The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. Its output signal is to be received by a DVB-C/T/ATSC standard TV, STB.

The device can be used in public place such as metro, market hall, theatre, hotels, resorts, etc for advertising. It also can be used for monitoring, training and educating in company, schools, campuses, hospital… besides that it’s a good choice for bars to offer HD sports channels, for VIP entertainment channels, and more.

Feature

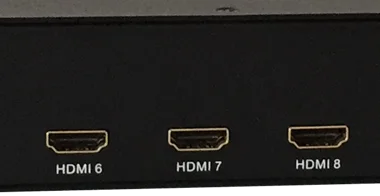

1.Up to 8 channel HDMI(HDCP) Encoding per chassis

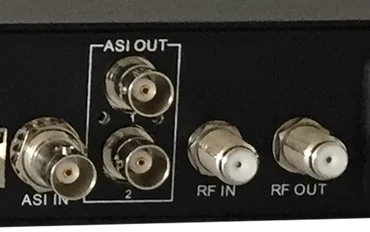

2.Simultaneous outputs via IP, DVB-ASI and modulated interfaces

3.Support Single,Dual,Quad Modular channel out

4.Advanced MPEG-4 AVC HP@L4 video compression

5.ASIC technologies which offer broadcast video quality, generally video bitrate advised 720p about 2mbps,1080p about 5mbps for lowest bitrates

6.HDMI 1.3a interface, Auto detect the HDMI input of resolutions

7.Resolution: 1080p,1080i,720p@50/60Hz, 576p,480p

8.RF attenuation range is from -30~-10dbm (81~97dbμV) with 0.1db step

9.Cascading via DVB-ASI or RF Port

10.Excellent modulation quality MER≥42dB

11.Optional DVB-C(QAM),DVB-T(COFDM), ATSC-T modular

12.RF frequency:30-960MHz,1khz step

13.High performance standard of Encoder/Modulator with superior RF specifications,stream and processing functionality

14.PSI/SI generate and NIT insertion,LCN modify

15.PID filter,Pass and remapping

16.High quality video and audio outputs

17.Management via WEB,Local front panel with LCD

18.Easy-to-Use System Managemen
