Technical Specifications
I. Specifications of the host
1. The host adopts 1U standard which is 19 inches in height; it’s made of aluminum alloy CNC industrial manufacturing and equipped with speakers; and the host can be rack-mounted.
2. The host has a built-in 1.4-inch LCD screen from which users can set channel, body number, power, communication password, language and other function options.
3. Support AES128 communication encryption, support 6-digit custom call password to prevent the same kind of product and frequency from stealing voice information.
4. Support microphone gains from -6db to 6db. Enter the setting page and set the appropriate gain according to your needs.

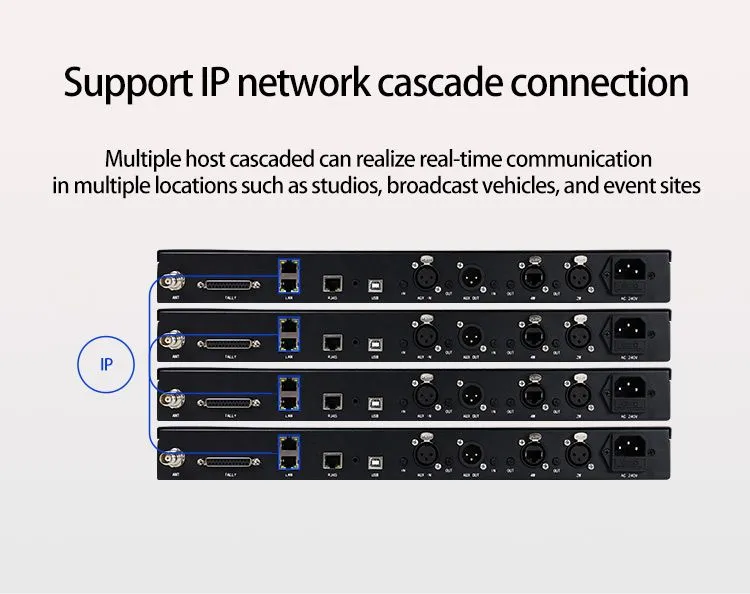

5. Support IP network calls, support AUX IN, AUX OUT, 2W, 4W audio interfaces, support gooseneck microphone connection and external audio.

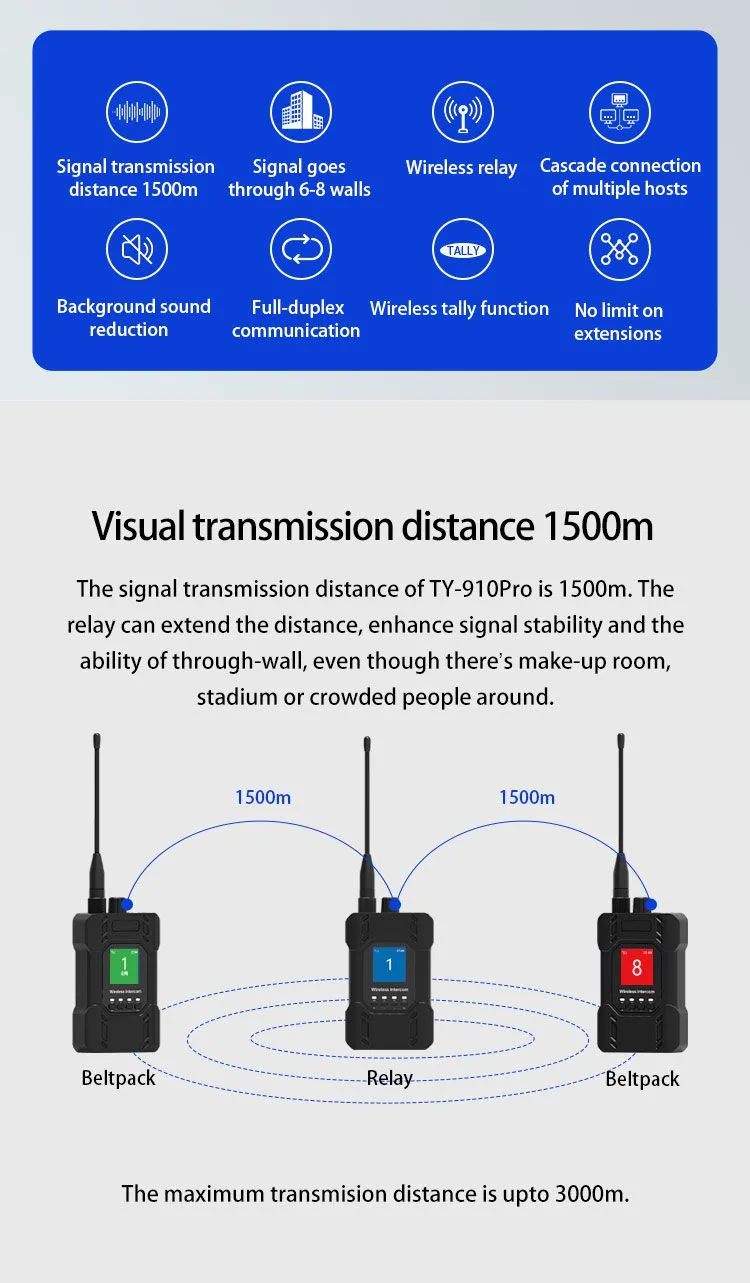

6. The host device has an operating voltage of AC 220V, a frequency range of 420-480MHZ, a bandwidth of 500KHZ, GFSK mode, a transmission power of 30dBm, and a visible transmission distance of 1500 meters in an open space. The number of channels is 99, and it supports 1000mW and 2000mW power. Enter the settings page and set the appropriate power as needed.
7. The host is equipped with an ALL reset button and a speaker button. User can turn on and off the host speaker as needed.
8. Support one-way/two-way call control buttons and encryption configuration buttons to realize extension selection calls, group calls, extension isolation, and forced call to remind extensions.

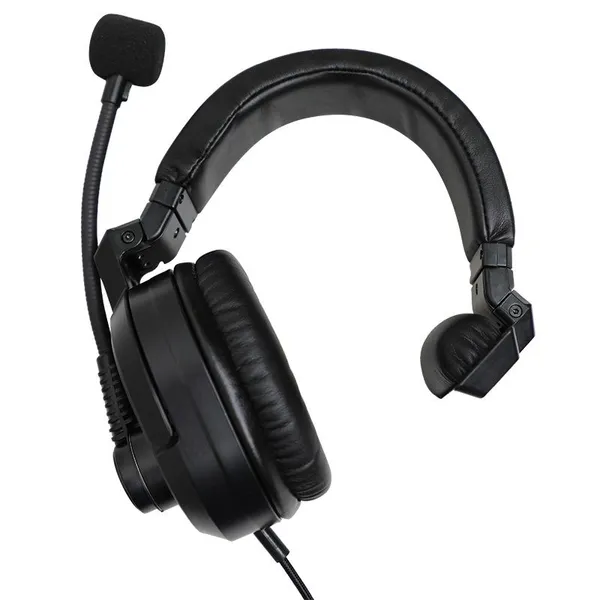

9. Interface for external headphone. When the headphone button light is on, it means that the headphone function is turned on, and the director voice can be sent and received through the external headphones.
10. Support independent control to realize one to one, one to many and many to many wireless calls; one-to-one encryption design between the host and the extension; multiple sets of intercom systems can be used at the same time on one site; high sensitivity microphone design, clear sound quality.

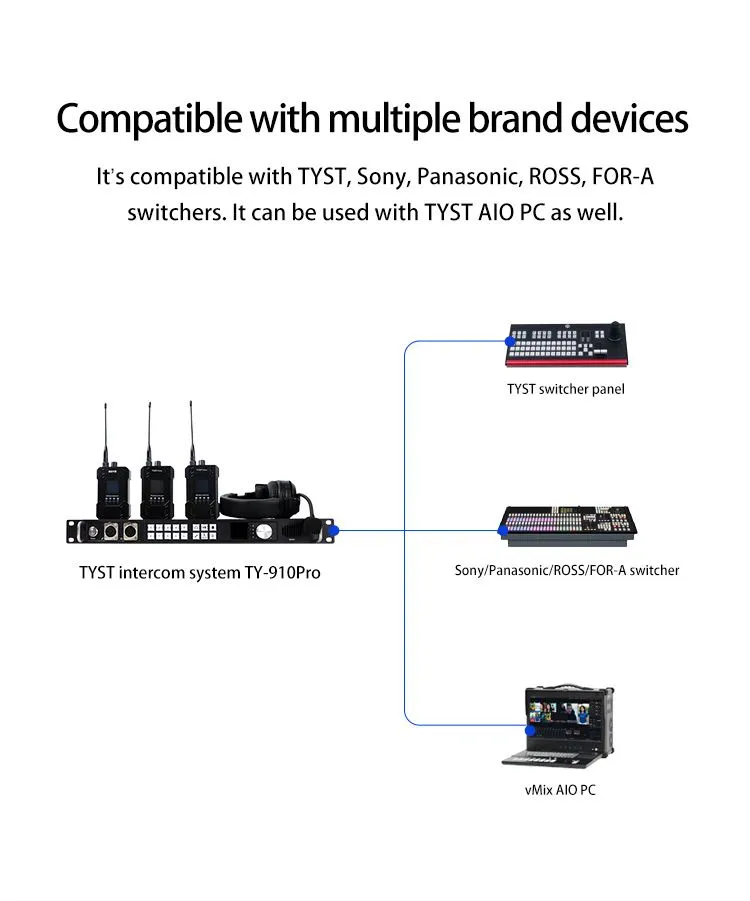

11. Support tally docking with mainstream director switchers such as Datavideo, Sony, Panasonic, Ross, BlackMagic, etc.; set high level and low level freely; a total of 4 TALLY options, to realize tally prompts.
II. Specifications of the extension (beltpack)

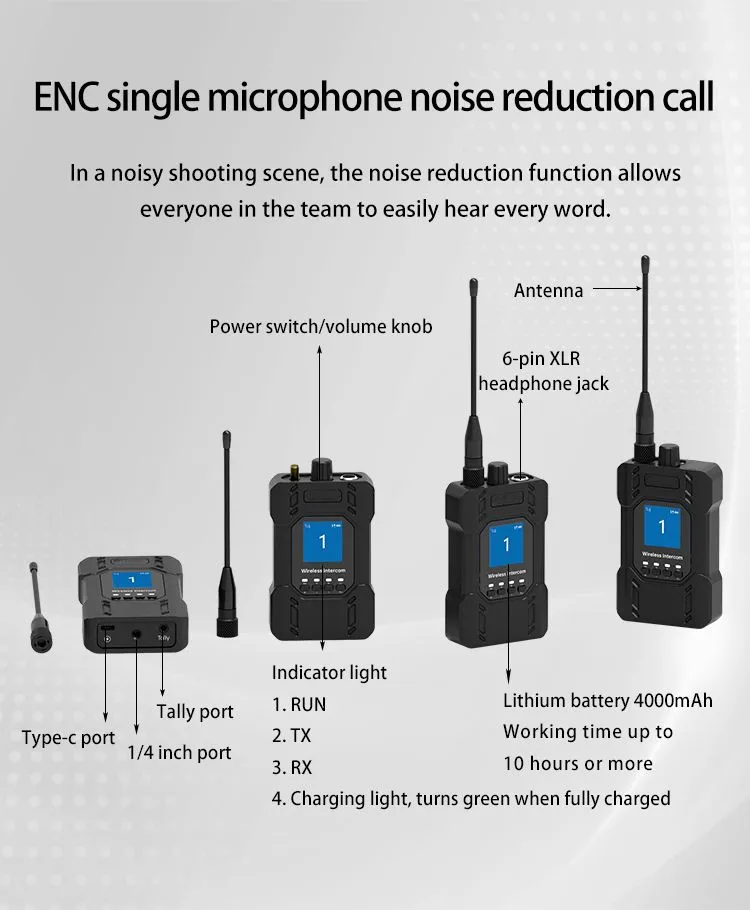

1. The extension is designed with an anodized aluminum alloy shell, providing ant transceiver interface, volume knob, 6-pin m-XLR headphone port, setting operation combination button, TALLY external interface and type-c charging port. It is powered by a 5000mAh large-capacity lithium battery, which can meet more than 10 hours of continuous work.
2. The extension operation mode language has two language modes: Chinese and English. The language type can be switched as needed.
3. The extension adopts ultra-low call delay, and the single-microphone intelligent noise reduction algorithm improves the call quality in a noisy environment. A total of 6 different noise reduction levels can be set as needed. The noise reduction level is 0-5, and the noise reduction effect gradually increases, so that the extension can clearly pick up human voices even in a noisy environment.
4. The extension is embedded with a 1.4-inch LED display and provides four operation buttons. The screen display has power display, extension configuration, call connection indicator, transmission and reception status indication, etc.
5. The extension operation function can make real-time adjustments to push-to-talk, push-free talk, channel setting, extension number setting, group number setting, communication password setting, power setting, microphone volume, sidetone setting, noise reduction setting, button setting, TALLY setting, and language setting.

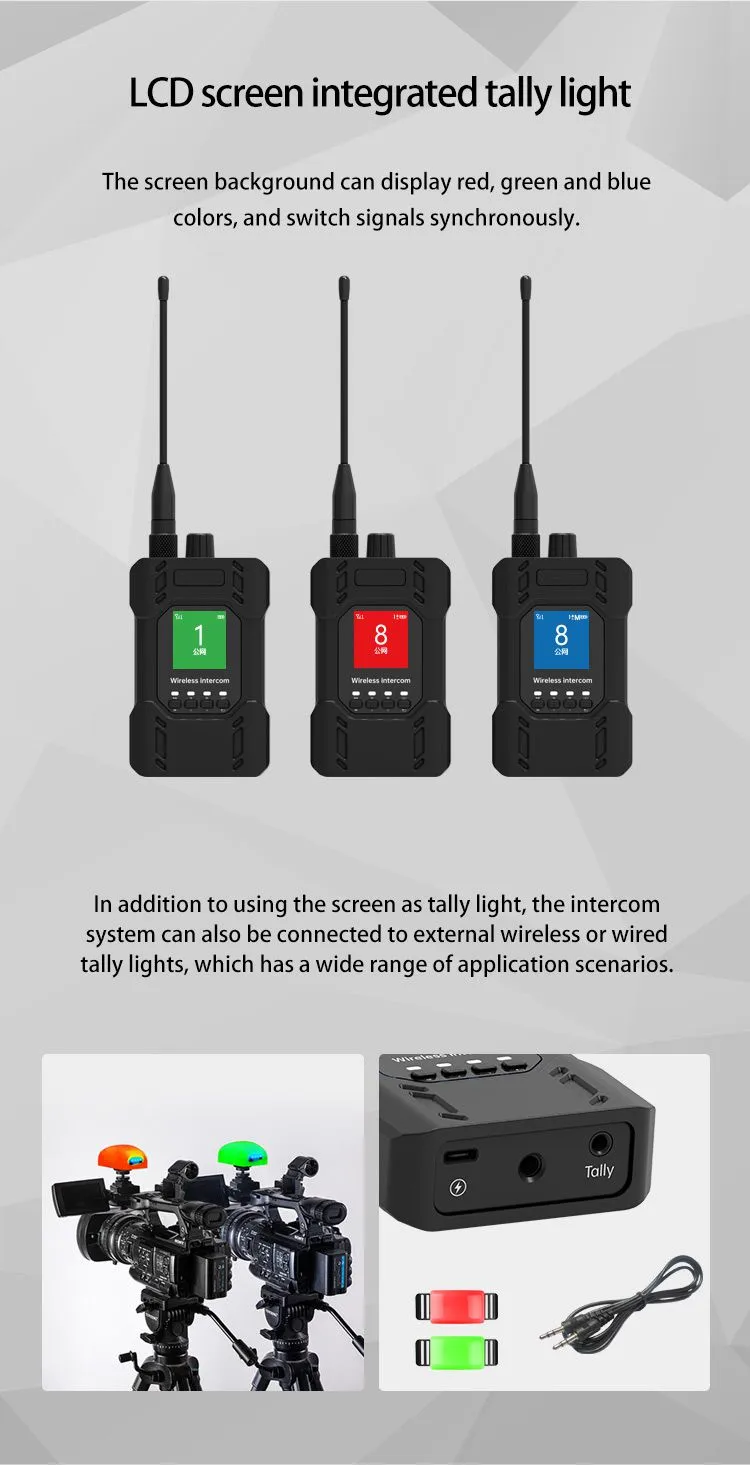

6. When the extension receives the PGM and PVW signals from the switcher, the screen changes different colors according to the signal received, and coordinates the staff at various positions through visual prompts to keep abreast of the progress of the program. Support external Tally lights and built-in Tally can be displayed simultaneously during use.
7. The extension is connected to the headphone interface. Users can send and receive voice through external headphones.
8. Working current: host 330mA/5V (no voice), extension 170mA/4.2V (no voice).
