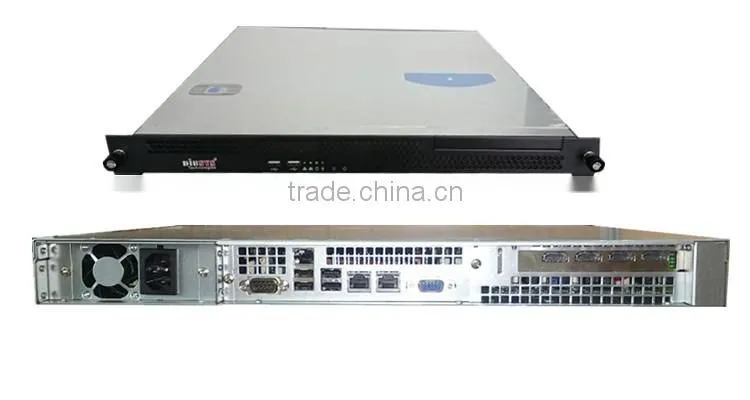

1/2/4 channels MPEG4/H.264 HDMI/HD-SDI to ip encoder

Name: 1/2/4 channels MPEG4/H.264 HDMI/HD-SDI to ip encoder
Brand: Dibsys
Price: USD $1 - 10,000 / Set

FOB Price

USD $1 - $10,000 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Shanghai/Hangzhou
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Zhejiang, China

Brand Name:

Dibsys

Model Number:

Caster-T310

Product Description

Caster-T310 high-performance High definition solution allows content owners and service providers to significantly increase the content hours delivered while adhering to processing timetables and video quality targets in a cost-effective and scalable manner.a real-time multi-channel,codec,format IP-based encoder for multi- screen delivery(TV, Mobile, and Web). With the support for various encapsulation formats base on embedded Linux operating system appliances. It relies on an Intel 4 or more Core CPU as an accelerator.

Caster-T310 can push /pull H.264,MPEG-4 encoding video streams deliver to various servers, such as Adobe Flash Server, Wowza Server, Windows Media Server, Apples HTTP Live Streaming, and some other servers base on UDP/RTSP/RTMP/HTTP/RTP protocols.

Feature

1.Optimized for 500 Kbps for 480i/576i, 1.5 Mbps for HD 720p, 2.5 Mbps for HD 1080i and 3.5 Mbps for HD 1080p.

2.Up to Four HDMI or HD-SDI per chassis

3.Multiple output streams per input service to support Broadcast,VOD,IPTV and OTT,mobile/ web,Set top box applications

4.HD MPEG2/H.264 to any resolution encoding

5.Mulltiple Codec,Protocol,Bitrate,Resolution, Profile per channel

6.GbE IP outputs – UDP,RTSP,RTMP,HTTP,HTTP Live Smooth(HLS),FTP

7.M3u8 playlist files

8.Audio support: AAC,MPEG,MP3 or Dolby Digital AC-3 passthrough

9.High quality pre-processing including filtering,Deinterlacing,cross scaling,image insertion

10.Based on embedded unbuntu Linux

11.Superior video quality at ultra-low bitrates, generally video advised SD about 500kbps , 720p 800kbps,1080p 4Mbps for lowest bitrate

12.Selectable any resolution from QSIF to 1080P

13.Easy-to-Use System Management

14.Web Management

INPUTS
Baseband input	1,2,4 channels HDMI v1.3a
	1,2,4 channels HD-SDI

OUTPUTS
IP Output type	Two Gig Ethernet Ports
ASI output type	Mutliplexed (optional)
Streaming format	Mpeg-2/H.264/H.263/MPEG4 SP/MPEG4 ASP; MPEG-1 Layer II,AAC,AC3,AMR,WM A ,MP3 TS Over UDP/RTP/HTTP 3GP Over RTP FLV Over HTTP/RTMP HTTP Live streaming Apple HLS (m3u8)

File Output
Encoding	3GPP/3GPP2/WMV/FLV/TS
	File output support timing and capacitive record

Pre-processing
Image setting	Video adjustments（Brightness, contrast, Saturation, Hue）
Frame rate	from 2fps to 60fps
Aspect ratio	4:3 and 16:9, WSS control
Image insertion	LOGO insertion
Subtitle Overlay	Static or roll subtitle, up to 3 way (optional)
PID Configuration	Depending on the configuration, it forwards selected programs via IP data casting; PAT, PMT, video PID, audio PID(s) and PCR information are transmitted.

Video encoding
Bitrate mode	VBR,CBR
Resolutions	80x64 • 176x120 • 128x96 (4:3) • 176x128 • 144x80 • 176x144 144x140 • 220x176 • 160x90 (16:9) • 240x176 • 320x240 352x288 • 400x300 • 480x360 • 720x576 • 854x480(16:9) 1280x720p • 1920x1080p
Max channels per RU	Singal Input	H.264 Out	Channels	Notes
	HDMI /HD-SDI	SD in 1.5Mbps	Up to 8 streams	Take those information as reference only,For details contact us
		720p in 2Mbps	Up to 4 streams
		1080p in 4Mbps	Up to 4 streams
	Up to multiple concurrent outputs per one stream input
Video codec	H.263 Profile0, Levels 10,20,30 MPEG-4 SP, Levels 0,0b, 1,2,3 H.264 Baseline Levels 1,1b,2,3; H.264 Main Profile/High Profile 3.0- 5.1 MPEG-2 MP@ML 4:2:0
GOP Size	I-Frame Time Interval; B-Frame Number; Reference Frame
Video Bitrate	32kbps to 4Mbps
Enhancement filter	Deinterlacing; MABFF CABAC; Noise reduction; Sharpening; Visual Optimizing

Audio encoding
Audio encoding	LC-AAC,HE-AAC and HE-AACv2 (including Parametric Stereo) MPEG-1 Layer, AC3,MP3
Sample rate	8khz to 48khz
Data rate	8kbps to 384kbps

Management
Interfaces	LCD display, key button, WEB

Environment
Power Supply	110-240 VAC
Power consumption	50W
Operation temperature	0 -50°C (32 -122°F)
Storage temperature	-40-70°C (-40-158°F)
Dimensions	483mm (W) x 534mm (L) x 45mm (H)
Weight	11kg(24lbs)

Multiscreen SD Encoder
Caster-T300	Up to 6x CVBS inputs
Caster-T305	Up to 4x SDI inputs

Multiscreen HD Encoder
Caster-T310	Up to 1,2,4x HDMI inputs
Caster-T315	Up to 1,2,4x HD-SDI inputs

Multiscreen Transcoder
Caster-T320D	Two ports GigE IP in/ out: up to 8x SD ,10x SD, 12x SD streams out
Caster-T320A	Up to 4x ASI inputs,Two ports GigE ip in/out: up to 8x SD ,10x SD, 12x SD streams out
