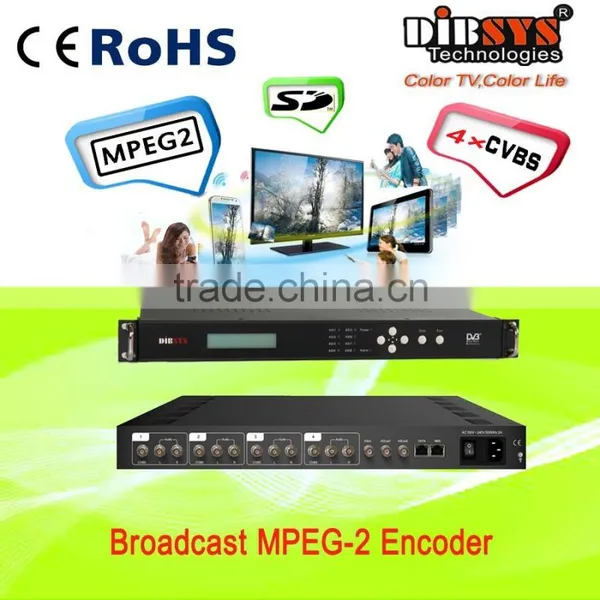

4 in 1 low bitrate MPEG-2 encoder
Overview
ENC3044is world’s most advanced MPEG-2 standard definition (SD) encoding platform, designed to address this ever increasing demand for more video and audio services. With high density,high reliability and advanced compress arithmetic,using MPEG-2 4:2:0 MP@ML and MPEG-4 Level 5 ASPvideo and MPEG-1 Layer-II audio compression. It provides one of the highest compression efficiencies in the mpeg2 broadcasting,making it possible to transmit high quality video content at the lowest possible bandwidth. And produce ASI(MPTS Mode) and IP(SPTS/MPTS) output data streams.
Key Features
- Up to 4 channels composite and 4 pairs R/L analog audio per chassis
- Advanced MPEG-2 MP@ML4:2:0 and MPEG-4 Level 5 ASP video compression, specially the channel 1, 3 could be MPEG-4 video coding
- MPEG-2 TS over IP output
- In iptv applications,set the SPTS/IP mode to up to four separate IP address and ports,in DVB applications. set the MPTS/IP model to one IP
- Ultra-low series MPEG-2 Video encoding, generally, good image quality for SD is about 3mbps bitrate adjustable range: 1~7Mbps
- NIT Insertion
- Audio sample rate: 32KHz, 44.1KHz, 48KHz
- Channel 3 and 4 can support Dynamic Encoding to ensure error-free output.
- According to the user needs, can be equipped with ASI re-multiplexed optional
- Precise synchronization, timing control, AV delay
- ≤ ± 15ms, PCR jitter ≤ ± 37ns
- Video aspect ratio support: 4:3
- System output data rate range: 2~60Mbps
- Hi-Fi audio processing R / L channel, stereo input,
- input video format (PAL / NTSC) adaptive selection
- 7x188 bytes per udp packet
- Web or SNMP management
Technical specifications
Input | |
Video Input |
Analog Composite video signal: 1.0Vp-p level |
Frequency: 25Hz~5.75MHz | |
|
Video format:PAL60/SECAM/NTSC4.43/NTSC(M/J)/PAL (COMBINATION-N) /PAL(M)/PAL(D/K/B/G/H/I/N) | |
Quantitative: 10bits, comply to CCIR-601 | |
Sampling frequency Rate: 27MHz | |
Impedance: 75Ω, unbalanced | |
Connector: 4 Way BNC | |
Audio Input |
R/L channel level 2Vpp,impedance 600Ω |
Connector:4 pairs of Stereo Audios, BNC | |
ASI Output | |
|
EN 50083-9 ASI interface standard |
Data bitrate:2-60Mbps | |
Signal Level:200-800mVp-p | |
Packet Length:188 bytes | |
2 identical ASI, BNC, 75Ω | |
MPEG-TS/IP Output | |
|
100M base-T,Full Duplex |
Bit rate: ≤40Mbps | |
Data Protocol:SPTS and MPTS over UDP | |
7x188 bytes per udp packet | |
Video Encoding | |
|
Comply to the International standard,main profile |
ISO 11172(MPEG-1) and ISO 13818(MPEG-2) | |
Encode Format: MPEG-2 4:2:0MP@ML, MPEG-4 ASP | |
Video screen ratio:4:3 | |
Lightness/ Contrast/ Saturation/ HUE/Horizontal Offset | |
Adaptive field frame (AFF);MPEG 2 on the base of FB | |
Operation mode: CBR/VBR | |
Format: DVB standard transport stream (MPEG-TS) | |
GOP:IPPPP,IBPBP,IBBPB,IBBBP | |
Each bitrate: 1 ~ 7Mbps continuously adjustable output | |
Advanced Pretreatment: noise reduction, sharpening | |
Audio Encoding | |
|
|
Audio Sampling Frequency: 32/44.1/48kHz |
Bit rate: 64/128/192/224/256/384Kbps | |
Encoding Format: MPEG I Layer 2 | |
Quantitative:16bit | |
Stereo or dual, single channel | |
Resolution | |
|
Accordance with CCIR601 standard |
PAL: 720*576/544*576/480*576/352*576/352*288@50Hz | |
NTSC: 720*480/544*480/480*480/352*480/352*240@60Hz | |
TS Re-multiplexing | |
|
Output program:1-4 |
1x ASI with multiplexed (option) | |
PAT/PMT/ SDT Automatically,NIT manual Generate | |
Control | |
|
100M Base T Ethernet, RJ45, WEB, SNMP |
7 keys:UP,DOWN,LEFT,RIGHT,ENTER,ESC,Lock | |
LED indicate light and LCD in front panel | |
Environment | |
|
Radiation safety requirements and comply with GB13837-92 and GB8898-88 standards |
Power Supply: AC 90-250V 50/60Hz | |
Power consumption: 25 W | |
Operating temperature:-10 - 50°C | |
Storage temperature: -10 - 75°C | |
Dimensions: 300(L)x483(W)x 44mm(H) (1RU) | |
Weight: 5kg | |
Our advantages
1) High quality and low price
2) 3-year warranty
3) Perfect after-sale service and technical support
Order informations
ENC3044 |
4xCVBS in, ASI+IP out,SPTS/MPTS out |
ENC3044P |
4xCVBS in with ASI remultiplexed, ASI+IP out, SPTS or MPTS out |
