♦Two feeding systems are available for customers at custmer's choice,namely the fouar-shaft front roller feeding system and ejector back-kicking feeding system.
♦The built-in skip(intermittent)feeding feature makes offers the capability for making large-sized cartons.
♦The de-dusting device can substantially remove the dust and dirt from the printing surface of the sheets and enhance the printing quality.
♦All the transmission gears are made from quality steel through heat treatment and grinding.
♦The application of the spline-free shaft collar ensures long term operating performance and high alignment precision in printing.
♦Automatic zero-setting and automatic resetting.
♦Large-sized double-piece cartons can be produced by moving the middle die.
♦The powerful cylinder main lock for the whole machine makes the systerm more stable

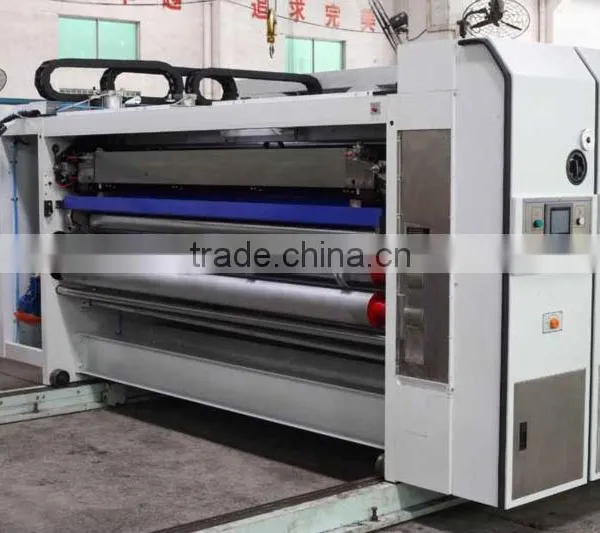

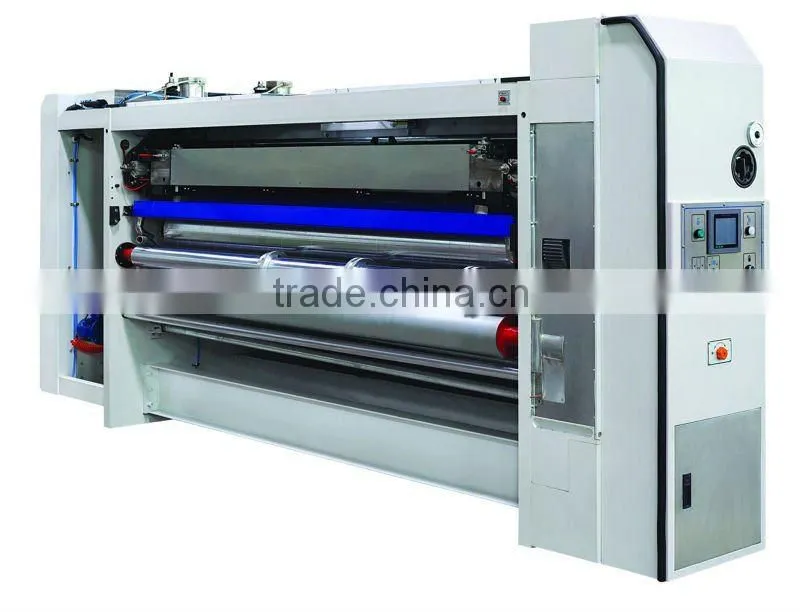

Features in printing section
l Applies hanging plate printing system, easy for plate changing; and has pedal swtich, easy for plate hanging
l Has anilox roller plus paper feeding system auto lifting device ( in feeding anilox roller drops and contacts printing plate, whereas in stop, it rises to separate from the printing plate.).
l The cirumferential adjustment mechanism of the pringting platen applies planetary gear structure.
l The printing phase can be subjest to a 360-degree adjutment by means of a transducer a touch screen control or in an electric numeral way (in both running and stop statuses)
l The inking roller uses wearable high-precision right chrome anilox roller.(the ceramic anilox is optional)
l rubber roller is formed by means of wrapping a steel pipe with wearable rubber,and has good ink transfer effect.
l Has auto low ink warning, avoiding damaging the rubber roller and anilox roller.
l The gap between printing press wheel and paper feeding wheel is electrically adjustable,with adjusted date shown on the dial and touch screen.
l The transverse position can be adjusted in an electrical numeral way, with total distance adjustable from right to left being20mm.
l Printing phase fixing device applies electromagnetic clutch braking mechanism. When the machine table separate or adjust the phase, the braking mechanism restricts the table rotation and maintains original gear position fixin point.
l T ouch screen is set on the control panel, easy for operation.

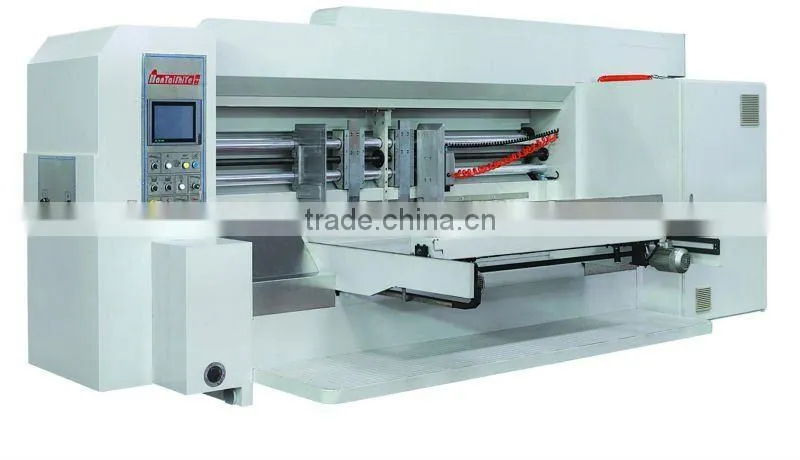

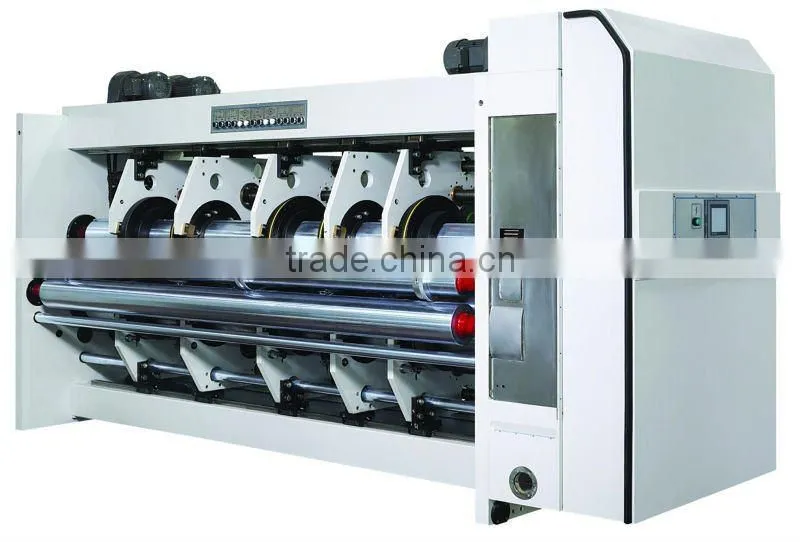

Features in slotting section
l The axial adjustment of line-press wheel, paper-feeding wheel and slotting kinife head has touch screen date predefining and manual adjustment tow manners, being prompt and accurate; and the next order sizes can be predefined during production.
l The scoroing roller, the feeding roller and the slottter seat move axially,guiding by a rolling straight guiding track so that movement is stable and positionning is accurate.
lThe slot phase applies transducer and touch screen control, can be electrically regulated within 360-degree in numeral (both in running and stop), has restoration fuction; and can store orders.
l A Touch screen is et on the control pannel that can control the feeding section, printing section and soltting section, easy to operate.
l The gap between line-press wheel, feeding wheel and the slotting knife head is electrically adjustable, with adjusted date shown on the dial and the touch screen.
l Has central knife moving, being able o produce large-sized 2-piece cartons.
l The slotter shaft and the feeding roller shaft are hard-chrome plated and finely polishe, enjoying long lifespan and no vibration during moving.
l Punching device is optional according to user’s necessity.

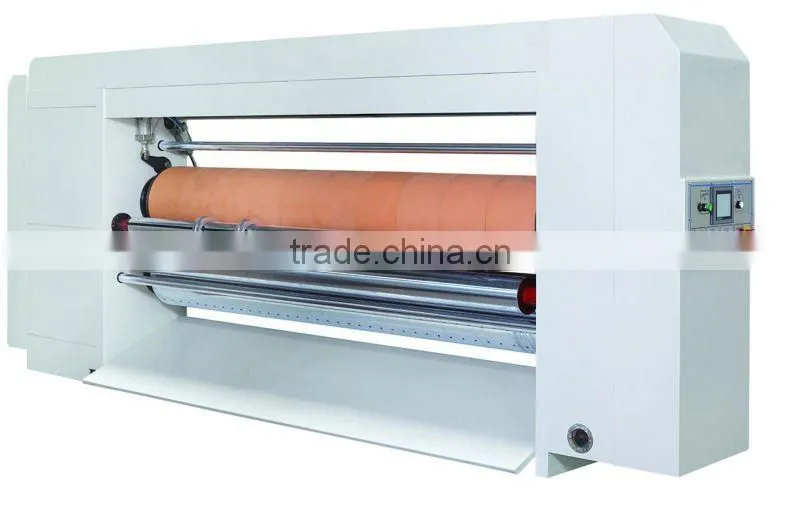

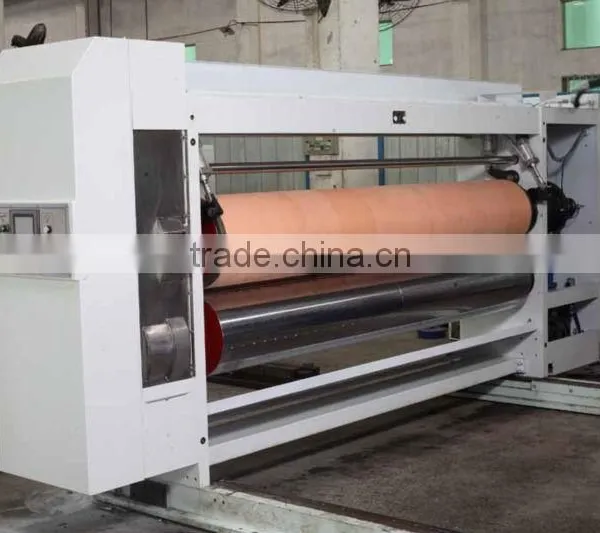

Features in die cutting unit
l The rubber roller is designed as folded rubber cushion, providing convenience and ease for removal, installation and replacement
l The rubber rooller can move axially 50mm leftward and rigthward, controlled by a hydraulic control system. The displacement of each rount of rotation is adjustable to ensure a steady and reliable movement.
l A frequency converter is adopted at the pahse position of the cutter unit. The touch screen and the electric-digital device provice 360-degree adjustment.Order forms can e stored in the system..
l The transverse position of the die can be regulated through the electric-digital adjuste. The total adjustable distant is about 20mm.
l A PLC touch screen is used to control the spacing beween the die roller and the rubber roller.
lA speed difference offsetting device is adopted that can automatically adjust the rotaion speed of the rubber so that the die cutting carton has exactly the same shape as the die shape.
l The cores of the rubber roller and the die roller are made from quality steel and are hard-charome plated and finely polished. The track path is balanced and calibrated to enhance the stablity of movement.

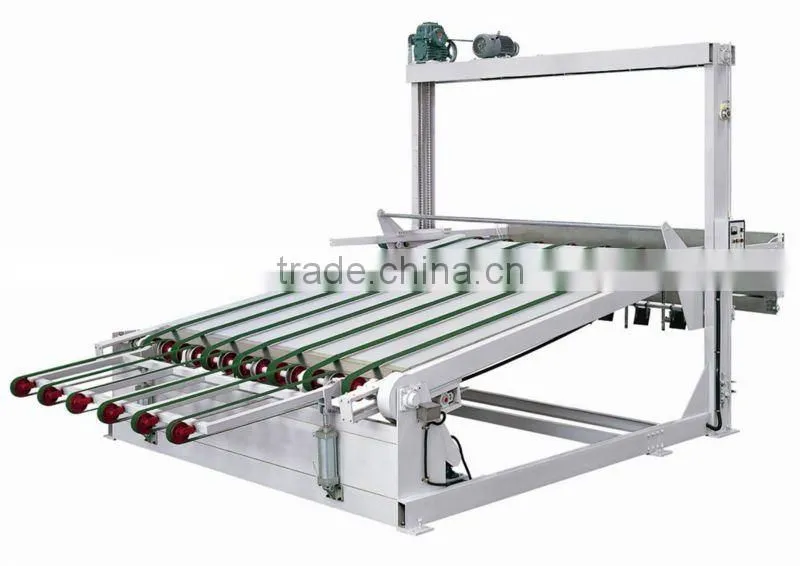

Features in Stacker unit
- The whole pocedure of piling cardboards is automatically finished in the control system.
- Paper receiving arm can be manual or ato operated.
- Cardboard feeding speed is adjustable according to production need.
- Reliable safety prevention is available when the section is in work.
- The rear blocking plate is electrically adjustable in both running and stop statuses.
| MODEL | NT1632 |
| Production Speed | 160 pcs/min |
| Maximum Paper Size | 1600x3200mm |
| Minimum Paper Size | 450x700mm |
| Interval feeding Maximum Paper Size | 2000x3200mm |
| Maximum Printing Size | 1600x3150mm |
| Standard Printing Plate Thickness | 7.2mm |
| Minimum Slotting Space |
Are knives170x170x170x170mm Anti-knife 240x70x240x70mm |
| Maximum Depth | 350mm |

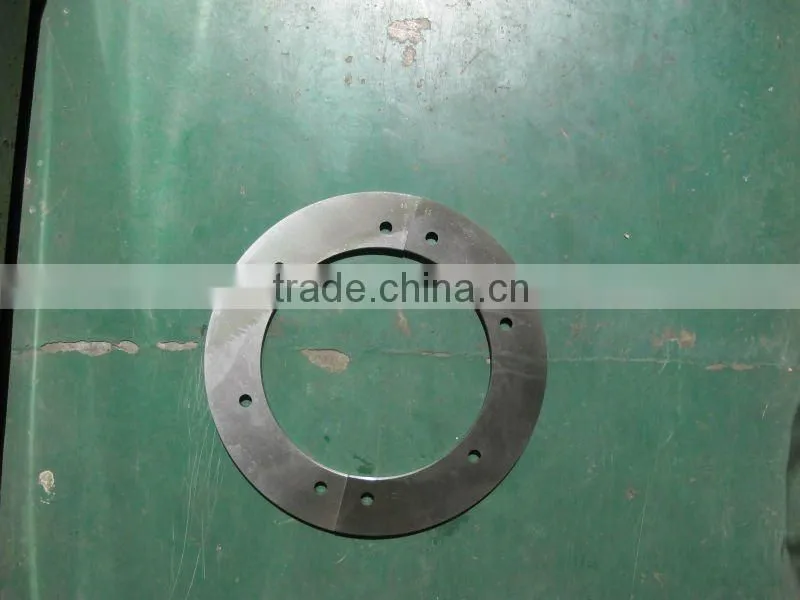

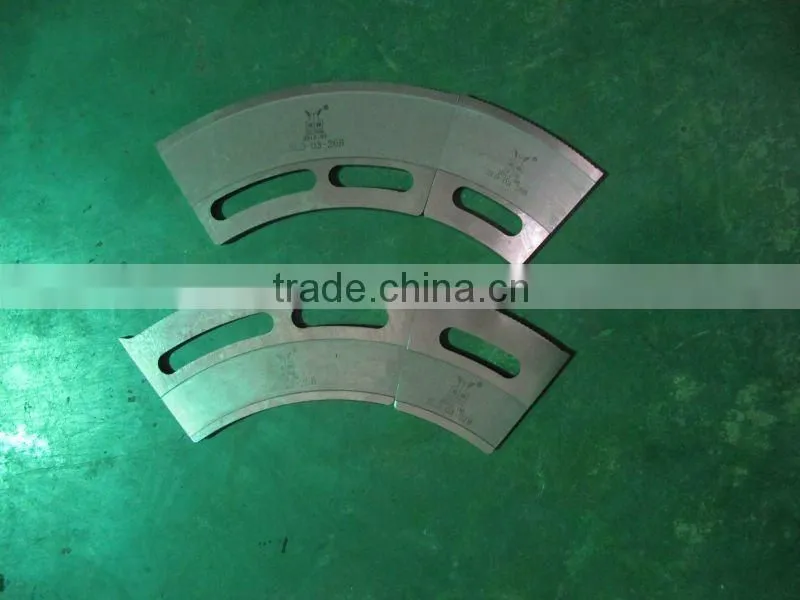

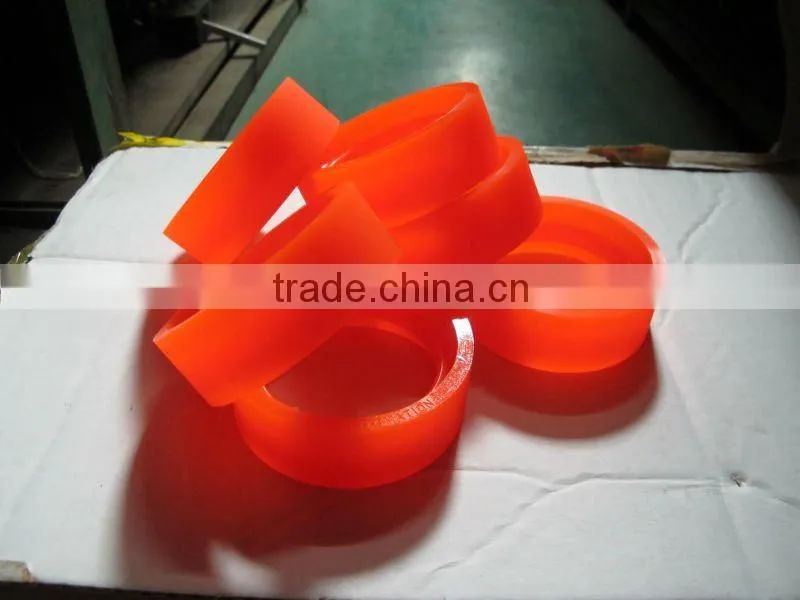

quick-wear parts
Carton Sample

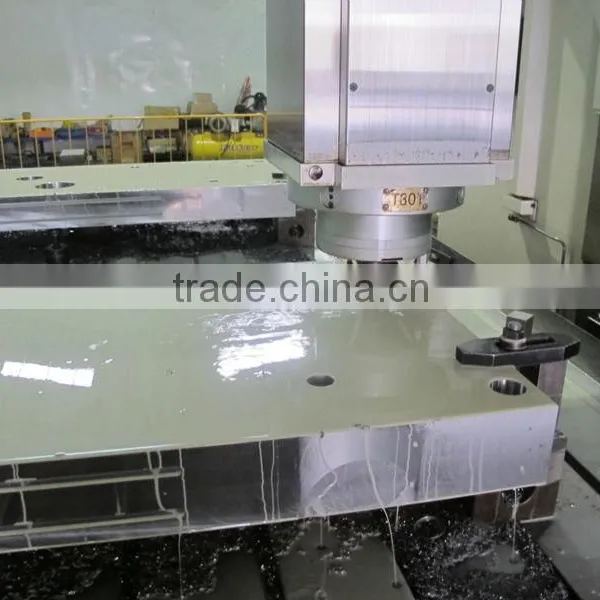

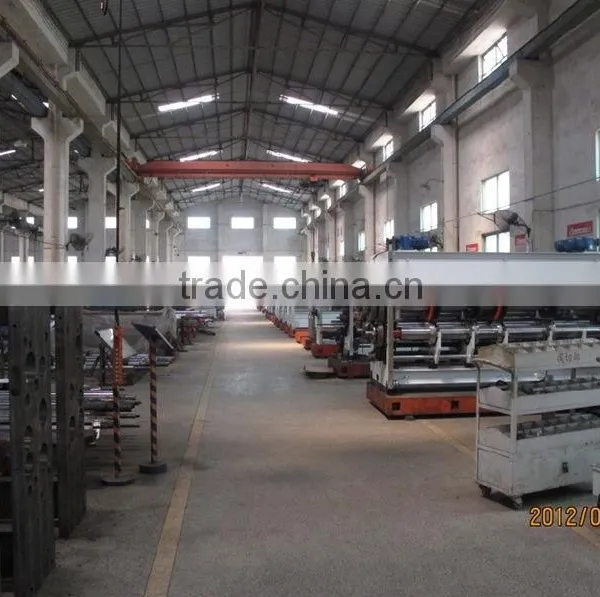

Factory View
