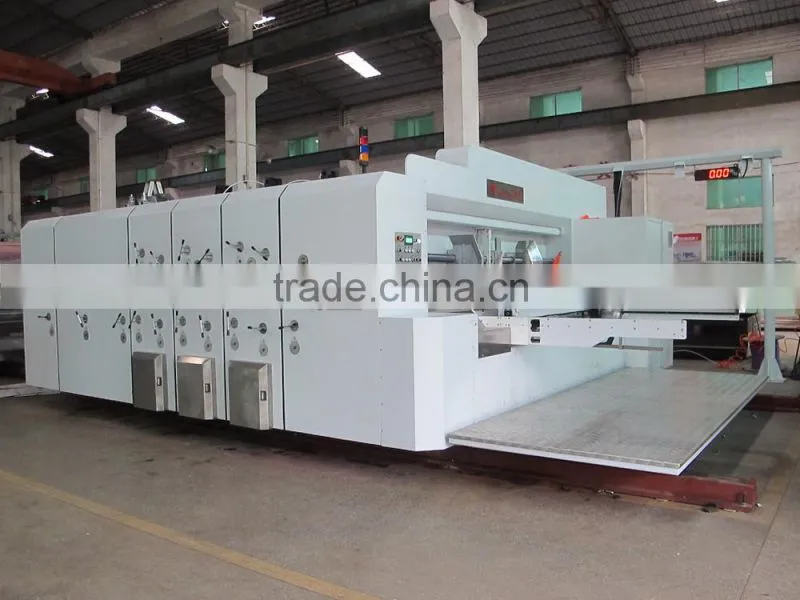

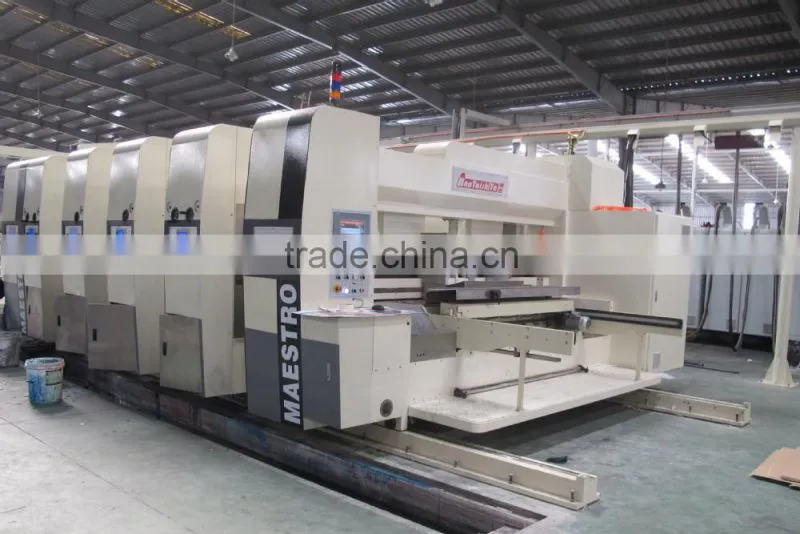

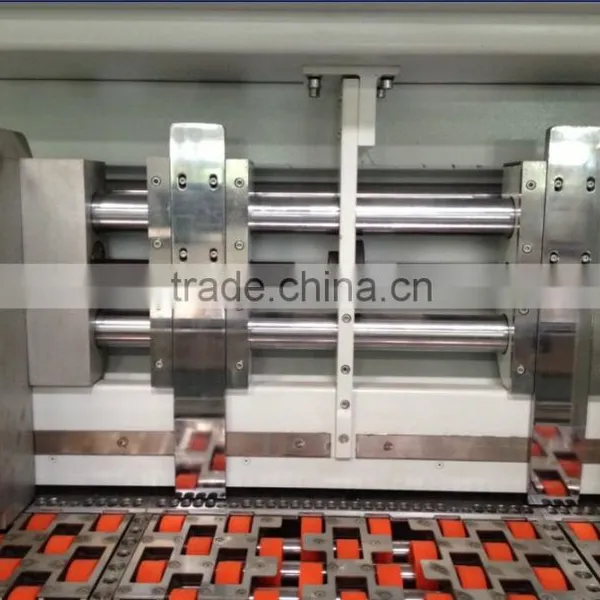

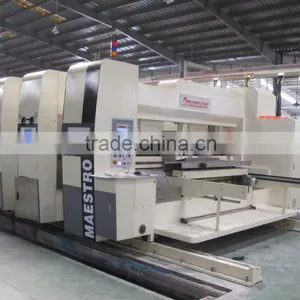

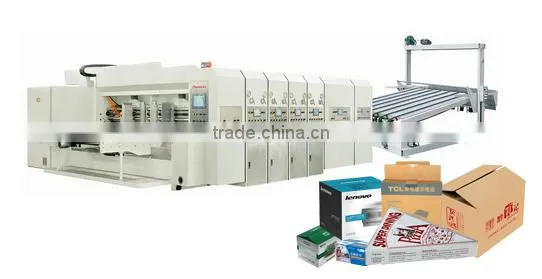

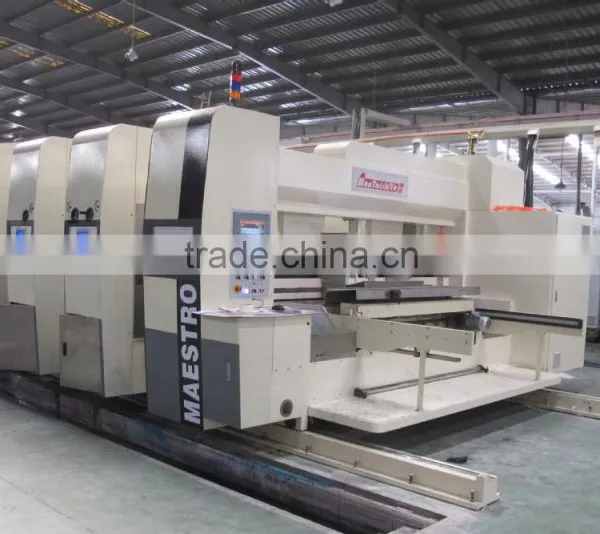

Help CenterNANTAI Flexo Printing Slotting Die Cutting Machine
Related Products
-
NANTAI Bottom Vacuum Suction High-speed Flexo Printing MachineNegotiableMOQ: 1 Set -
NANTAI-High-speed Flexo Printing Machine 1425IVNegotiableMOQ: 1 Set
-
Carton Machinery Flexo Printing Slotting Die CuttingNegotiableMOQ: 1 Set
-
NANTAI-Coated Paper Flexo Printing Slotting Diecutting MachineNegotiableMOQ: 1 Set
-
NANTAI-Corrugated Flexo Printer Slotter Rotary Die Cutter MachineNegotiableMOQ: 1 Set
Features in Performance
Two feeding system are available for customers at custmoers at customer’s choice, namely the four-shaft front roller feeding system and the ejector back—kicking feeding system.
l The built-in skip (intermittent) feeding feature makes offers the capability for making large-sized cartons.
l The de-dusting device can substantially remove the dust and dirt from the capability for making large-sized cartons.
l All the transmision gears are made from quality steel through heat tratment and grinding.
l The application of the spline-free shaft collar ensures long term operation performance and high alignment precision in printing.
l Automatic zero-setting and automatic resetting.
l Large-sized duoble-piece cartons can be produced by moving the middle die.
l The powerful cylinder main lock for the whole mchine makes the system more stable
Carton Sample
95% of machine electrical elements use international famous brands. The control center uses Japan Omron PLC and color touch screen system that has higher reliability, lower failure and higher efficiency, and is easy to learn and operate; The main machine and fan motor applies transducer speed regulation, stable and energy saving; touch screen is fitted for each section, making operation easier, PC carries out all parameter setting,simple and visible, each phase and slot height are controlled and defined using tranduser, being accurate ;interval feeding is available,easy for large-sized carboard printing; o-position return, printing position memory during wiping and auto restoratiion are available, reducing the time for adjustment; auto ink monitoring system that warns first and stop to feed next when the ink is shortage; each section is pneumatically locked and electrically separable, and the feeding wheel auto brakes during separation to gurantee the precision in next printing; has several orders input function.Which will stroe more orders when connected to PC and implement ordering ,clients management, report forms printing etc;distance maintenance and paramenter repair may be carried out.
No. |
MODEL |
NT1228 |
1 |
Production Speed |
170mm |
| 2 | Max.Paper Sizes |
1200*2800mm |
| 3 | Min.Paper Sizes |
300*700mm |
| 4 | Interval feeding Max.Paper Sizes |
1500*2800mm |
| 5 | Max.Printing Sizes |
1200*2800mm |
| 6 | Standard Pringting Plate Thickness |
7.2mm |
7 |
Min.Slot Space |
170*170*170*170 240*70*240*70 |
| 8 | Max.Depth |
270mm |
Factory View
WELCOME TO VISIT OUR COMPANY!
