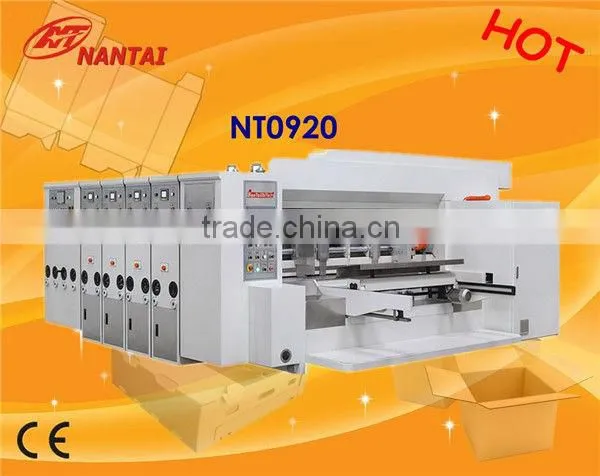

NANTAI-Coated Paper Flexo Printing Slotting Diecutting Machine

Name: NANTAI-Coated Paper Flexo Printing Slotting Diecutting Machine
Brand: Nantai/Asahi
SKU: 110408409
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Other, Machinery & Hardware

Packaging Type:

Other, Nude packaing

Nantai Precise Machinery & Tech. Ltd. Foshan

Payment & Shipping

Payment Methods:

Port of Shipment:

GUANGZHOU CHINA

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, Machinery & Hardware

Packaging Type Other, Nude packaing

Packaging Material Other

Automatic Grade Automatic

Driven Type Electric

Voltage 380V

Power 37KW

Place of Origin Guangdong, China

Brand Name Nantai/Asahi

Model Number NT0920

Weight 35tons

Certification CE

After-sales Service Provided Overseas service center available

Applies the three-shaft front roller feeding system and the ejector back-kicking feeding system.
The built-in skip(intermittent)feeding feature makes offers the capability for making large-sized cartons.
The de-dusting device can substantially remove the dust and dirt from the printing surface of the sheets and enhance the printing quanlity.
All the transmission gears are made from quality steel through heat treatment and grinding.
The application of the spline-free shaft collar ensures transmission preciseness.
Automatic zero-setting and automatic resetting.
Large-sized double-piece cartons can be produced by moving the middle die.
The powerful cylinder main lock for the whole machine makes the system more stable

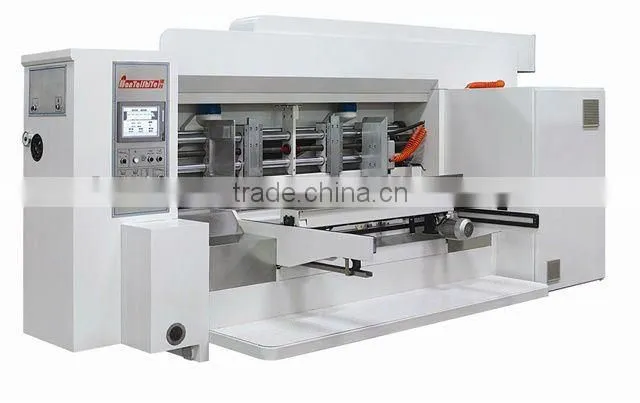

Sun feeding wheel

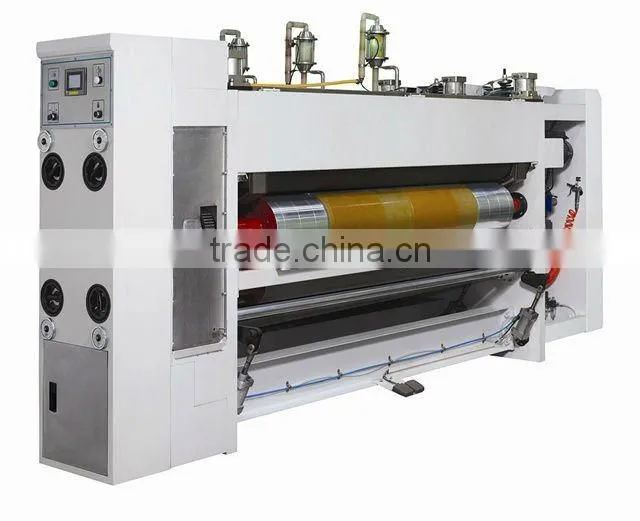

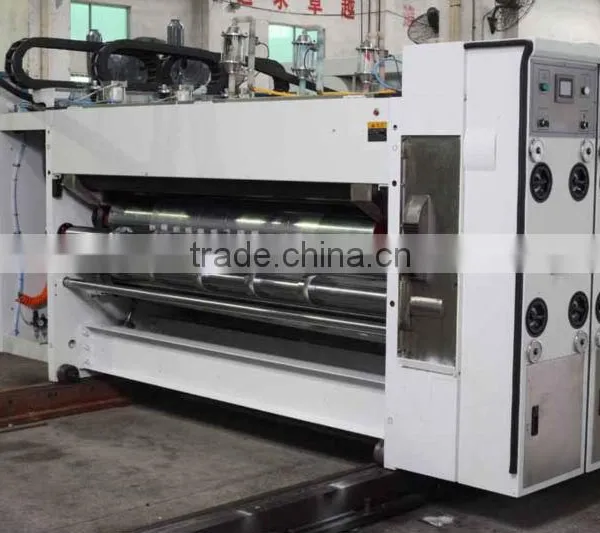

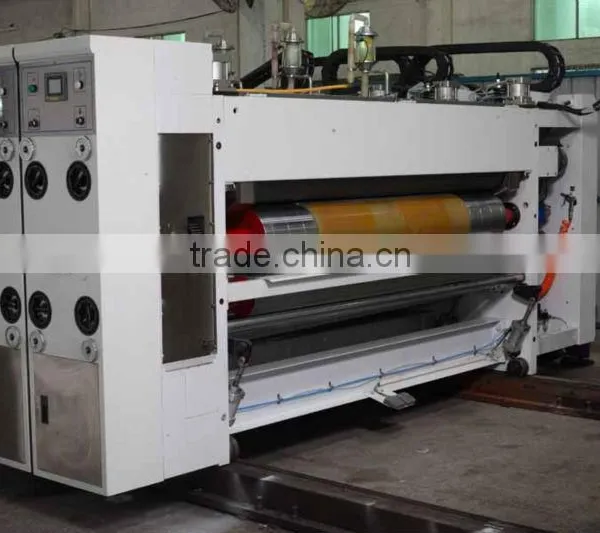

Printing unit

Has anilox roller plus paper feeding system auto lifting device(in feeding anilox roller drops and contacts printing plate, whereas in stop, it rises to separate from the printing plate)
The circumferential adjustment mechanism of the printing platen applies planetary gear structure.
Has auto low ink warning, avoiding damaging the rubber roller and anilox roller

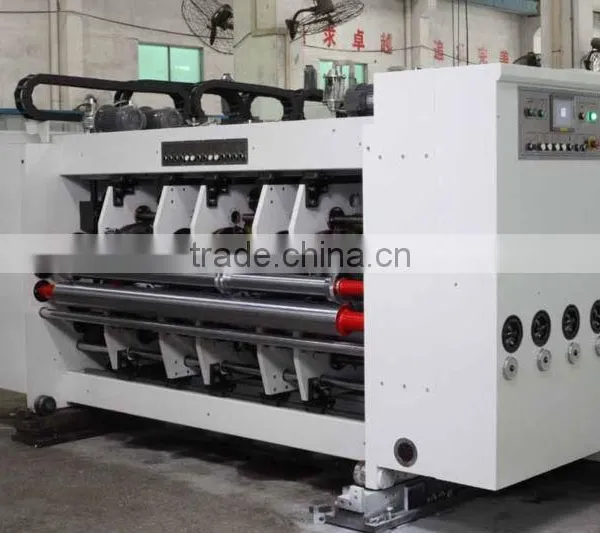

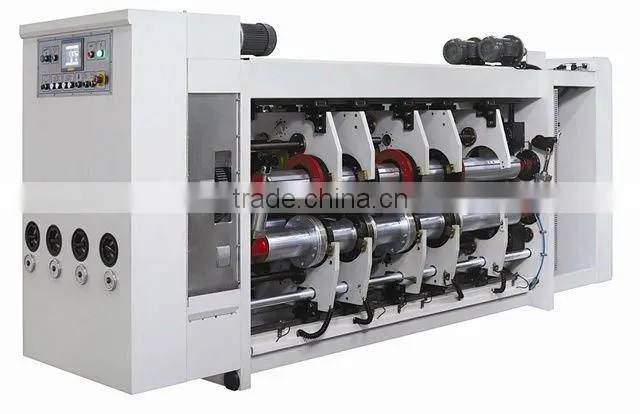

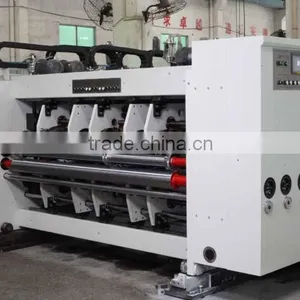

Slotting unit

Slotting cutter

MODEL	NT0920
Printing Paper	A,B,C,A/B,corrugated cardboard (maximum clearance:7mm)
Production Speed	250 sheets/mainute(to be determined by size of carboard and material quality)
Applicable Size	2000mmX880mm
Maximun Size of Paper at Interval Paper Feeding	200CmmX1200mm
Minimum Paper Size	700mmX260mm
Maximum Printing Size	1850mmX880mm
Standard Printing Thickness	7.2mm
Maximum Width of Pasted Carton	50mm
Left-Right Transverse of Anvil Block	±25mm
Height of Die Cutting Blade Helight	25.4mm
Inner Diameter of Cutting Die	Φ250mm
Maximum Die Cuting Area	1850*880mm
Diameter of Printing Roller	Φ298.8mm
