Packaging Detalis:
All cables will be delivered on drums with protection of both ends of the cable. Each drum will be a waterproof mark, with clearly factory name, date, cable type, cable length in unit gross weight, cable outer diameter, cable weight, and so on and will be provided the length of all fibers in each drum.
Delivery:
Within 10-20 days after receipt of the deposit confirmed.

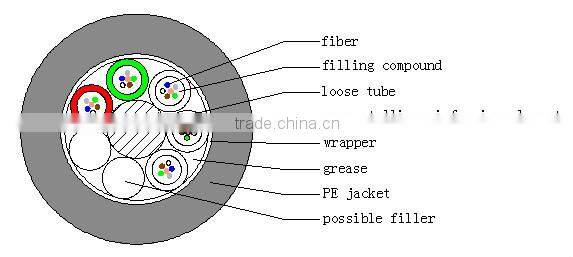

Loose tube
Non-metallic central reinforcing element
Cable filling compound
PE sheath
1.Low attenuation and dispersion, special control of exceed length and layer stranding technology ensures the good transmission, mechanical and environment performance.
2.Non-metallic element free forms the electric-magnetic intervention.
3.Small outer diameter, lightness, compact structure and good flexibility
Suitable for:
The long-distance transmission in high-voltage area and the parallel area of high-voltage lines
The area susceptible to strong electric-magnetic intervention or lightning
LAN
By direct burial and underwater application
Fiber count(core) |
2-42 |
44-72 |
74-84 |
86-96 |
98-108 |
110-120 |
122-132 |
134-144 |
Outer diameter(mm) |
10.4 |
11.2 |
12.2 |
14.0 |
14.8 |
15.8 |
16.6 |
17.4 |
Cable weigh(kg/km) |
90 |
100 |
115 |
180 |
195 |
220 |
240 |
265 |
Minimum tensile strength(N) |
Short-term: 1500 |
|||||||
Long-term: 600 | ||||||||
Minimum crushing(N/100mm) |
Short-term: 1000 |
|||||||
Long-term: 300 | ||||||||
Bending radius |
Static:15 times of diameter Dynamic:30 times of diameter |
|||||||
Standard length for delivery(km) |
2~4 |
|||||||
Temperature range(0C) |
-40~+60 |
|||||||
Comfortable Working Environment
Packing
