Help CenterGYTA53--Layer Stranding Optical Fiber Cable With LAP Sheath and Steel Tape Armoring Sheath
Related Products
-
GYTS--Layer Stranding Optical Fiber Cable With Steel Tape Coated With PE SheathNegotiableMOQ: 1 Kilometer -
GYTA33--Layer Stranding Optical Fiber Cable With LAP Inner Sheath and Steel Wires Armoring Outer SheathNegotiableMOQ: 1 Kilometer
-
GYTY53-- Layer Stranding Optical Fiber Cable With PE Sheath and Steel Tape Armoring SheathNegotiableMOQ: 1 Kilometer
-
2015 New Products GYXTW Aerial Single Mode 24 Core Fiber Optical Cable Price per MeterUS$ 100 - 10,000MOQ: 1 Kilometer
-
Fiber Optical Cable GYXTW/Aerial, Duct, Direct Burial Fibre CableUS$ 100 - 10,000MOQ: 1 Kilometer
Packaging Detalis:
All cables will be delivered on drums with protection of both ends of the cable. Each drum will be a waterproof mark, with clearly factory name, date, cable type, cable length in unit gross weight, cable outer diameter, cable weight, and so on and will be provided the length of all fibers in each drum.
Delivery:
Within 10-20 days after receipt of the deposit confirmed.

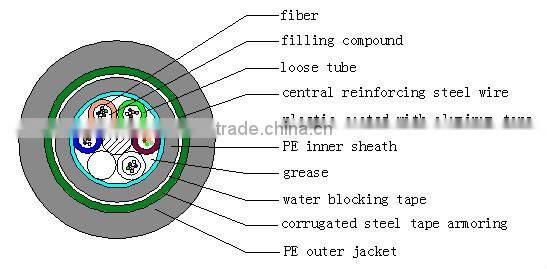

Loose tube
Metallic central reinforcing element
Filling compound
Aluminum tape coated with PE inner sheath
Corrugated steel tape coated with PE outer sheath
1.Low attenuation and dispersion, special control of exceed length and layer stranding technology ensures the good transmission, mechanical and environment performance.
2.Aluminum tape coated with PE inner sheath provides excellent water blocking performance
Steel tape coated with PE outer jacket provides excellent water blocking performance.
3.Good water blocking material prevents the cable from longitudinal water penetration.
4.Double jacket design enhances the performance of crushing, shot-gun resistance and water blocking
5.Provide multi-protection to the cable and prevent the mechanical damage and rodent gnawing.
• Suitable for long-distance trunk and LAN communication.
By direct burial
Fiber count(core) |
2-36 |
38-40 |
42-48 |
50-60 |
62-72 |
74-84 |
86-96 |
98-108 |
110-120 |
122-132 |
134-144 |
Outer diameter(mm) |
13.0 |
13.3 |
13.6 |
14.3 |
15.0 |
14.7 |
15.5 |
16.3 |
17.0 |
18.3 |
18.8 |
Cable weigh(kg/km) |
180 |
185 |
195 |
205 |
225 |
215 |
230 |
260 |
275 |
300 |
330 |
Minimum tensile strength(N) |
Short-term: 3000 |
||||||||||
Long-term: 1000 | |||||||||||
Minimum crushing(N/100mm) |
Short-term: 3000 |
||||||||||
Long-term: 1000 | |||||||||||
Bending radius |
Static:12.5 times of diameter Dynamic:25 times of diameter |
||||||||||
Standard length for delivery(km) |
2~6 |
||||||||||
Temperature range(0C) |
-40~+60 |
||||||||||
Comfortable Working Environment
Packing
