Help CenterGYDXTW--Central Loose Tube Optical Fiber Cable
Related Products
-
GYDTA(S)--Layer Stranding Optical Fiber Ribbon CableNegotiableMOQ: 1 Kilometer -
GYTA-Layer Stranding Optical Fiber Cable With Aluminum Tape Coated With PE SheathNegotiableMOQ: 1 Kilometer
-
GYTA53--Layer Stranding Optical Fiber Cable With LAP Sheath and Steel Tape Armoring SheathNegotiableMOQ: 1 Kilometer
-
GYTS--Layer Stranding Optical Fiber Cable With Steel Tape Coated With PE SheathNegotiableMOQ: 1 Kilometer
-
GYTA33--Layer Stranding Optical Fiber Cable With LAP Inner Sheath and Steel Wires Armoring Outer SheathNegotiableMOQ: 1 Kilometer
Packaging Detalis:
All cables will be delivered on drums with protection of both ends of the cable. Each drum will be a waterproof mark, with clearly factory name, date, cable type, cable length in unit gross weight, cable outer diameter, cable weight, and so on and will be provided the length of all fibers in each drum.
Delivery:
Within 10-20 days after receipt of the deposit confirmed.

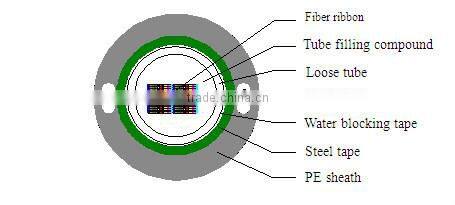

1.Optical fiber ribbon with 4, 6, 8, 12, 24 fibers and other low attenuation and dispersion, special ribbon structure.
2.Loose tube, the optical fiber ribbon with 12 fibers or more is enveloped by two or more optical fiber ribbon
Filling compound.
3.Corrugated steel tape coated with PE outer sheath.
4.Two or four reinforcing steel wires placed in PE sheath.
1.Low attenuation and dispersion, special control of exceed length ensure the good transmission performance in varying environment.
2.Optical fiber ribbon have accurate geometric dimension.
3.Optical fiber ribbon with 12 fibers or more can be spliced by two special fiber ribbons or more.
Loose tube has good flexibility, easy to be bent and cut.
4.High density, easy to splice, low cost of installation.
5.Corrugated steel tape armoring and four steel wires structure enhance the tensile resistance.
Small outer diameter, lightness and compact structure
Suitable for LAN and uptown communication
By duct and aerial
Fiber count(core) |
24-36 |
48-60 |
72 |
84-96 |
108-120 |
132-144 |
156-168 |
180-192 |
204-216 |
240-288 |
300-432 |
Outer diameter(mm) |
11.8 |
13.5 |
14.4 |
15.0 |
15.5 |
16.0 |
16.5 |
17.5 |
18.5 |
21.0 |
24.0 |
Cable weight(kg/km) |
120 |
160 |
180 |
196 |
205 |
218 |
235 |
265 |
310 |
400 |
520 |
Minimum tensile strength(N) |
Short-term: 0.8G or 3000 Long-term: 1000 |
||||||||||
Minimum crushing(N/100mm) |
Short-term: 1000 Long-term: 300 |
||||||||||
Bending radius |
Static:20 times of diameter Dynamic:30 times of diameter |
||||||||||
Standard length for delivery(km) |
1~4 |
||||||||||
Temperature range(0C) |
-40~+60 |
||||||||||
Comfortable Working Environment
Packing
