Help CenterGYTS--Layer Stranding Optical Fiber Cable With Steel Tape Coated With PE Sheath
Related Products
-
GYTA33--Layer Stranding Optical Fiber Cable With LAP Inner Sheath and Steel Wires Armoring Outer SheathNegotiableMOQ: 1 Kilometer -
GYTY53-- Layer Stranding Optical Fiber Cable With PE Sheath and Steel Tape Armoring SheathNegotiableMOQ: 1 Kilometer
-
2015 New Products GYXTW Aerial Single Mode 24 Core Fiber Optical Cable Price per MeterUS$ 100 - 10,000MOQ: 1 Kilometer
-
Fiber Optical Cable GYXTW/Aerial, Duct, Direct Burial Fibre CableUS$ 100 - 10,000MOQ: 1 Kilometer
-
GYXTW 4 Core Optical Fiber Cable / 6 Core Fiber Optic Cable / 12 Core Fiber Optic CableUS$ 100 - 10,000MOQ: 1 Kilometer
Packaging Detalis:
All cables will be delivered on drums with protection of both ends of the cable. Each drum will be a waterproof mark, with clearly factory name, date, cable type, cable length in unit gross weight, cable outer diameter, cable weight, and so on and will be provided the length of all fibers in each drum.
Delivery:
Within 10-20 days after receipt of the deposit confirmed.

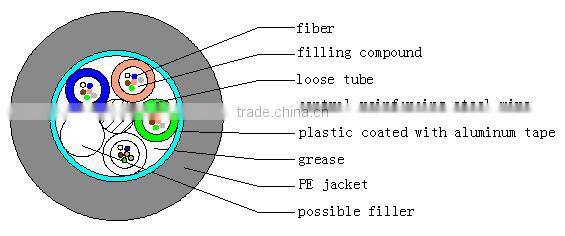

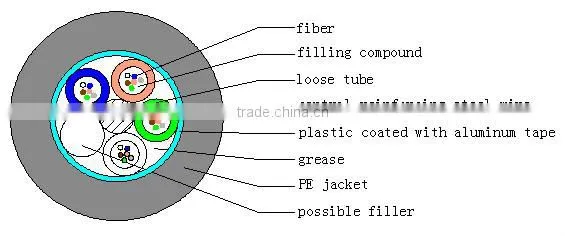

Loose tube
Metallic central reinforcing element
Filling compound
Layer stranding loose tube structure
Steel tape coated with PE sheath
• Low attenuation and dispersion, special control of exceed length and layer stranding technology ensures the good transmission, mechanical and environment performance.
• Aluminum tape coated with PE jacket can provide excellent water blocking performance.
• Good water blocking material prevents the cable from longitudinal water penetration.
• Small outer diameter, lightness, compact structure and good flexibility
• Suitable for long-distance trunk and LAN communication.
By duct and aerial
Fiber count(core) |
2~30 |
32~36 |
38~40 |
42~48 |
50~60 |
62~72 |
74~84 |
86~96 |
98~108 |
110~120 |
122~132 |
134~144 |
Outer diameter(mm) |
10.2 |
10.6 |
11.4 |
11.8 |
12.4 |
13.2 |
14.2 |
15.0 |
16.0 |
16.7 |
17.7 |
18.8 |
Weight(Kg/Km) |
110 |
125 |
140 |
160 |
165 |
180 |
200 |
220 |
245 |
265 |
295 |
325 |
Minimum tensile strength(N) |
Short-term 1500 |
|||||||||||
Long-term 600 | ||||||||||||
Crushing (Min)(N/100mm) |
Short-term 1000 |
|||||||||||
Long-term 300 | ||||||||||||
Bending radius |
Static :10 times of diameter Dynamic:20 times of diameter |
|||||||||||
Standard length for delivery(Km) |
2~6 |
|||||||||||
Temperature range(0C) |
-40~+60 |
|||||||||||
Comfortable Working Environment
Packing
