Specifications
1) 27 years professional manufacturer2) Public Company
3) UL Certificated
4) Pass Fluke,CTS
5) Production:1,000,000 Boxes

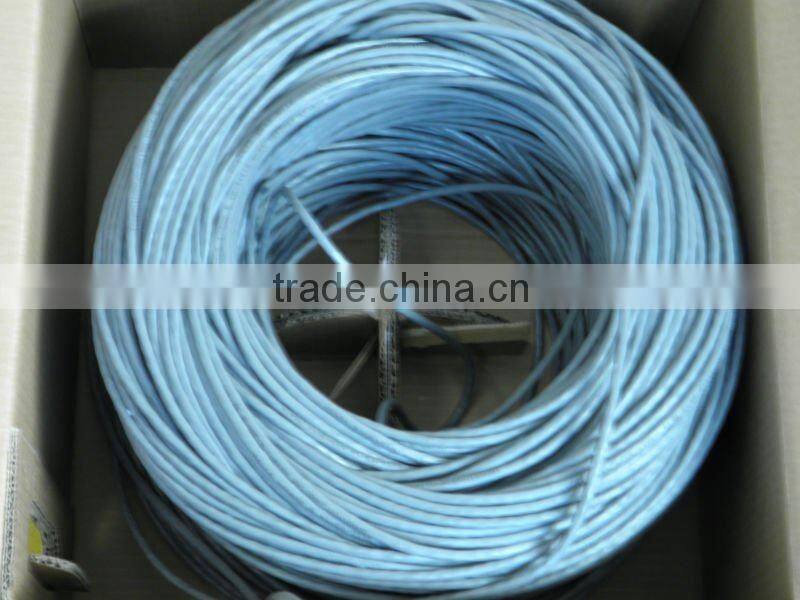

Solid Copper FTP Cat5e LAN Cable/Network Cable
(1,000,000 Boxes,UL Certificated)
Conductor:
Material: solid bare copper
Number of pairs: 4 pairs
AWG: 24AWG
Conductor diameter: 0.51 ±0.003mm
Insulation:
Material: HDPE and FRPE
Diameter: 1.02 ±0.005mm
Average thickness: 0.225mm
Minimum point thickness: 0.2245mm
First screen: Aluminum Foil (superposition rate: 25%)
Overall screen: 48/0.1mm TC braid shield (braid density: 40%)
Jacket rid cord: optional
Sheath:
Material: PVC or LSOH
Nominal diameter: 6.0 ±0.2mm
Average thickness: 0.6mm
Minimum point thickness: 0.545mm

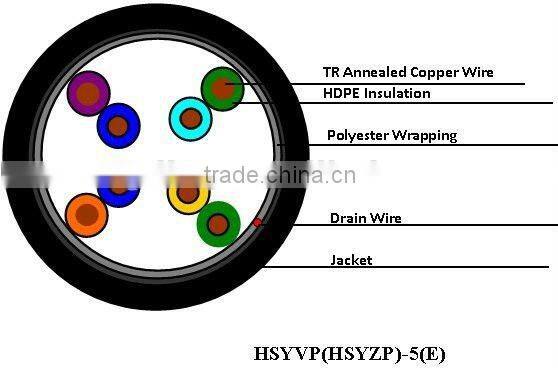

Includes:
Polyester Wrapping
Drain Wire
Aluminum-plastic Laminated Screen
Jacket:PVC / PE /LSOH
Standard:
YD/T1019-2001, TIA/EIA-568B, ISO/IEC61156
Application :
Horizontal cabling in working area.Used in voice system,ISDN,
ATM-25/51/155Mbps,10BASE-T,100BASE-TX/T4,1000BASE-T,etc.
|
Frequency Mhz |
Impedance Ohm |
RL dB |
Attenuation dB/100M |
Next dB/100M |
ELFEXT dB/100M |
PS NEXT dB/100M |
PS Elfext dB/100M |
1 |
100±15 |
20 |
2.0 |
65.3 |
63.8 |
62.3 |
60.8 |
4 |
100±15 |
23 |
4.1 |
56.3 |
51.7 |
53.3 |
48.7 |
8 |
100±15 |
25 |
5.8 |
51.8 |
45.7 |
53.3 |
42.7 |
10 |
100±15 |
25 |
6.5 |
50.3 |
43.8 |
47.3 |
40.8 |
16 |
100±15 |
25 |
8.2 |
47.3 |
39.7 |
44.2 |
36.7 |
20 |
100±15 |
25 |
9.3 |
48.5 |
37.7 |
42.8 |
34.7 |
25 |
100±15 |
24 |
10.4 |
44.3 |
35.8 |
41.3 |
32.8 |
31.25 |
100±15 |
24 |
11.6 |
42.9 |
33.9 |
39.9 |
30.9 |
62.5 |
100±15 |
22 |
17.0 |
38.4 |
27.8 |
35.4 |
24.8 |
100 |
100±15 |
20 |
22.0 |
35.3 |
23.8 |
32.3 |
20.8 |
155 |
100±18 |
19 |
28.1 |
33.0 |
20.0 |
29.0 |
17.0 |
200 |
100±22 |
19 |
32.4 |
31.0 |
18.0 |
28.0 |
15.0 |
310 |
100±22 |
18 |
41.8 |
28.0 |
14.0 |
25.0 |
11.0 |
350 |
100±22 |
17 |
44.9 |
27.0 |
13.0 |
24.0 |
10.0 |

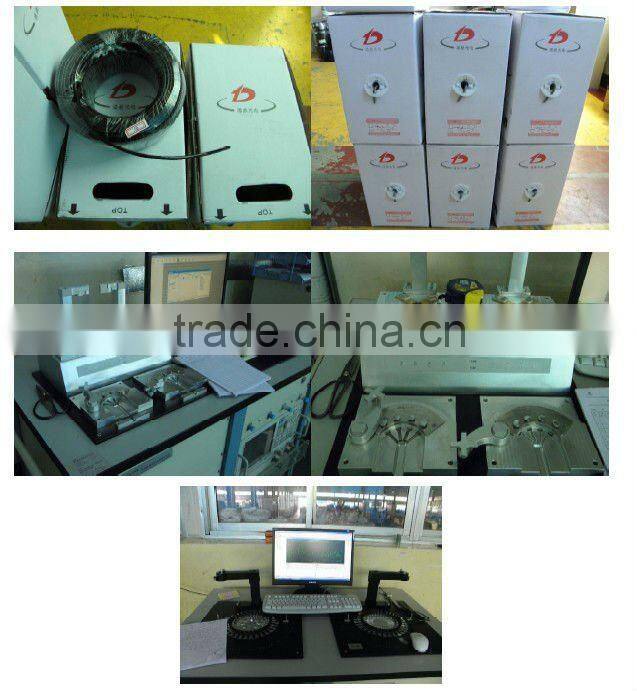

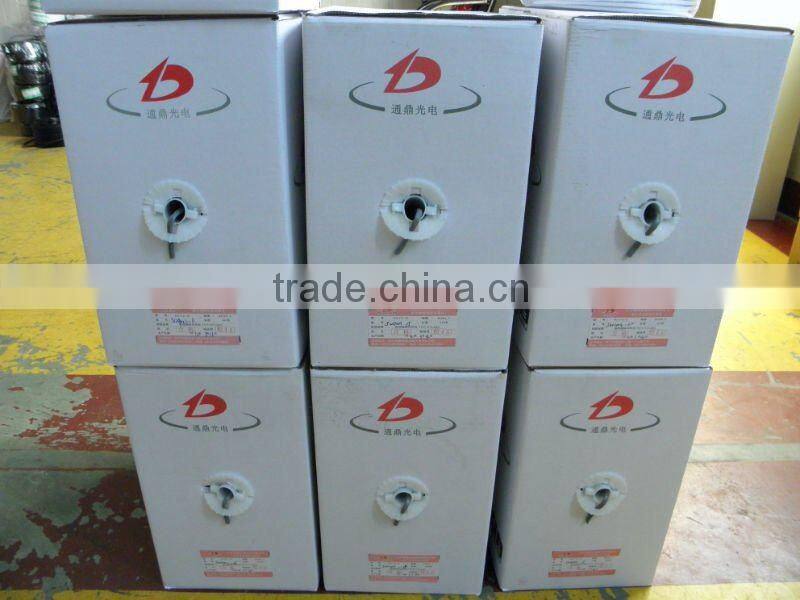

Package:
Inspect (Fluke+CTS)
Certifications:
ISO:9001:2008
ISO14001:2004
OHSAS 18001

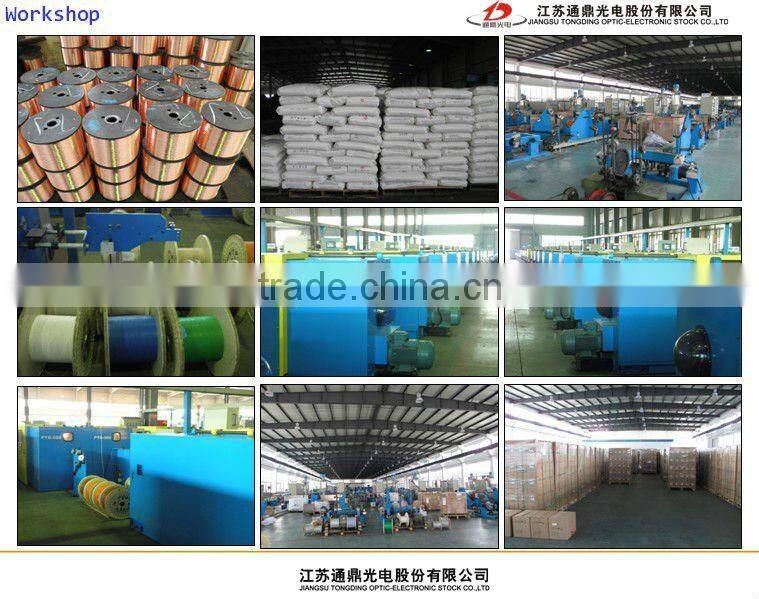

Profile of our company
TONGDING GROUP,located in the Cable Industry Basement—Wujiang,in the
boundary of Jiangsu,Zhejiang and Shanghai,is an outstanding private group with a
wide range of business including optical and electric cables,communication
equipments,cable materials,real estate,finance,etc
1986-2012,in 26 years,we have been listed on:
Top500 Private Business of China
Top500 Competitiveness of China
Top500 Manufacturers of China
Top500 Most Valuable Brands of China
"TDGD" China Well-Known Trademark
JIANGSU TONGDING OPTICAL-ELECTRONIC CO.,LTD, is a subsidiary
of TONGDING GROUP. We focus on:
♦ Optical Fiber Cable (14,000,000 Fiber Kms )
♦ Communication Telephone Cable (4,320,000 Kms)
♦ Networking Cable (1,000,000 Boxes )
♦ Feeder Cable/RF Coaxial Cable (40,000 Kms)
♦ Electric/Power Cable with Low-voltage(300V,450V,600V,0.6/1 KV)
♦ Passive Optical Network Equipments
♦ Special Cable(OPLC,Optical Cable+Power Cable,Perfect Solution for The Last
Mile)
♦ Railway Signal Cable(10,000 Kms)
In 2010,we succeed to be listed in mainland China (Stock Code:002491)
If you're interested in our procucts and company,pls contact me:Skype:andygu87
Waiting for your news.
