Packaging Detalis:
All cables will be delivered on drums with protection of both ends of the cable. Each drum will be a waterproof mark, with clearly factory name, date, cable type, cable length in unit gross weight, cable outer diameter, cable weight, and so on and will be provided the length of all fibers in each drum.
Delivery:
Within 10-20 days after receipt of the deposit confirmed.

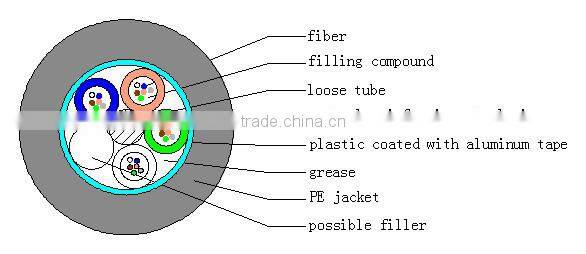

• Loose tube
• Metallic central reinforcing element
• Filling compound
• Layer stranding loose tube Structure
• Aluminum tape coated with PE jacket
• Low attenuation and dispersion, special control of exceed length and layer stranding technology ensures the good transmission, mechanical and environment performance.
• Aluminum tape coated with PE jacket can provide excellent water blocking performance.
• Good water blocking material prevents the cable from longitudinal water penetration.
• Small outer diameter, lightness, compact structure and good flexibility
Suitable for long-distance trunk and LAN communication.
By duct and aerial
Fiber count(core) |
2-30 |
32-36 |
38-40 |
42-48 |
50-60 |
62-72 |
74-84 |
86-96 |
98-108 |
110-120 |
122-132 |
134-144 |
Outer diameter(mm) |
9.8 |
10.3 |
10.4 |
11.0 |
11.5 |
12.2 |
13.0 |
14.0 |
14.8 |
15.8 |
16.6 |
17.4 |
Cable weigh(kg/km) |
90 |
105 |
105 |
125 |
130 |
140 |
155 |
180 |
195 |
220 |
240 |
265 |
Minimum tensile strength(N) |
Short-term: 1500 |
|||||||||||
Long-term: 600 | ||||||||||||
Minimum crushing (N/100mm) |
Short-term: 1000 |
|||||||||||
Long-term: 300 | ||||||||||||
Bending radius |
Static:10 times of diameter Dynamic:20 times of diameter |
|||||||||||
Standard length for delivery(km) |
2~6 |
|||||||||||
Temperature range(0C) |
-40~+60 |
|||||||||||

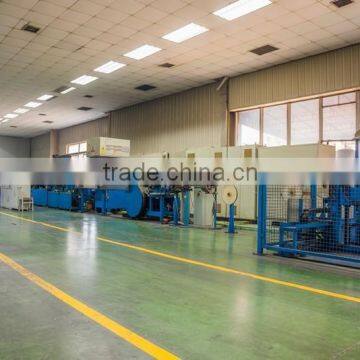

Comfortable Working Environment

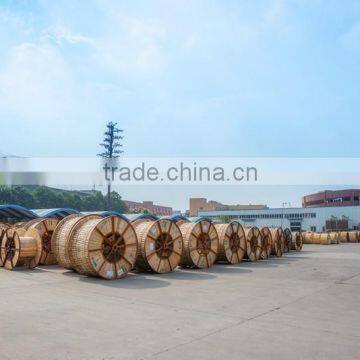

Packing
