Packaging Detalis:
All cables will be delivered on drums with protection of both ends of the cable. Each drum will be a waterproof mark, with clearly factory name, date, cable type, cable length in unit gross weight, cable outer diameter, cable weight, and so on and will be provided the length of all fibers in each drum.
Delivery:
Within 10-20 days after receipt of the deposit confirmed.

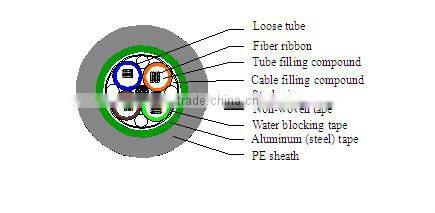

Optical fiber ribbon with 4, 6, 8, 12, 24 fibers
Loose tube
Central reinforcing element
Filling compound and water blocking tape
Corrugated steel tape coated with PE outer sheath
Corrugated aluminum (steel) tape coated with PE sheath
1.Low attenuation and dispersion, special control of exceed length ensure the good transmission performance in varying environment.
2.Optical fiber ribbon have accurate geometric dimension.
3.Loose tube has good flexibility.
4.Easy to draw out, splice and clean, low cost of installation.
5.Reliable water blocking performance.
6.Corrugated steel tape armoring enhance the water blocking and mechanical performance
Suitable for LAN and Access Network
By duct and aerial
Fiber count(core) |
6-96 (6 fibers per ribbon) |
24-288 (8 or 12 fibers per ribbon) |
720 (12 fibers per ribbon) |
960 (12 fibers per ribbon) |
1440 (12 fibers per ribbon) |
Outer diameter(mm) |
16.3 |
19.4 |
29.0 |
33.7 |
35.0 |
Cable weight(kg/km) |
196(233) |
285(331) |
700(770) |
915(990) |
998(1135) |
Minimum tensile strength(N) |
Short-term: 1500~3000 Long-term: 600 |
||||
Minimum crushing(N/100mm) |
Short-term: 1500~3000 Long-term: 600 |
||||
Bending radius |
Static:15 times of diameter Dynamic:20 times of diameter |
||||
Standard length for delivery(km) |
2~4 |
||||
Temperature range(0C) |
-40~+60 |
||||
Comfortable Working Environment
Packing
