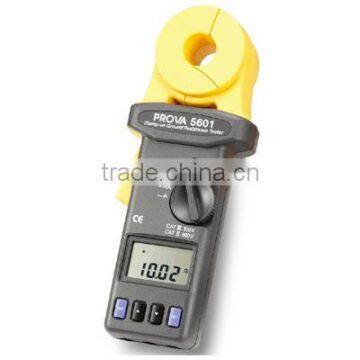

( Clamp-on Ground Resistance Tester ) TES Model: PROVA-5601

Range

Resolution

Accuracy of Reading1

0.025 - 0.250 Ω

0.002 Ω

 ± 1.5% ± 0.05 Ω

0.250 - 1.000 Ω

0.02  Ω

 ± 1.5% ± 0.05 Ω

1.001 - 9.999 Ω

0.02 Ω

 ± 1.5% ± 0.1 Ω

10.00 - 50.00 Ω

0.04 Ω

 ±2.0% ± 0.3 Ω

50.01 - 99.99 Ω

0.04 Ω

 ±2.0% ± 0.5 Ω

100.0 - 200.0 Ω

0.4 Ω

 ± 3.0% ± 1.0 Ω

200.1 - 400.0 Ω

2 Ω

 ± 5.0% ± 5 Ω

400.1 - 600.0 Ω

5 Ω

 ± 10% ± 10 Ω

600.1 – 1500 Ω

20 Ω

 ± 20%

Range

Resolution

High Alarm

0 - 1510 Ω

1 Ω

Lo Alarm

0 - 1510 Ω

1 Ω

Range

Resolution

Accuracy of Reading

0.300 - 1.000 mA

0.001 mA

 ± 2.0% ± 0.05 mA

1.00 - 10.00 mA

0.01 mA

  ± 2.0% ± 0.03 mA

10.0 - 100.0 mA

0.1 mA

 ± 2.0% ± 0.3 mA

100 – 1000 mA

1 mA

± 2.0% ± 3 mA

Range

Resolution

Accuracy of Reading

0.200 – 4.000 A

0.001 A

 ± 2.0% ± 0.03 A

4.00 – 30.00 A

0.01 A

 ± 3.0% ± 0.03 A

Conductor Size:

23 mm (0.9”) approx.

Jaw Opening:

27 mm (1.06”) approx.

Dimension:

257mm (L) x 100mm(W) x 47mm(H)

10.1" (L) x 3.9"(W) x 1.9"(H)

Battery Type:

9V IEC 6 LR61 (Alkaline)

Display:

4 digits 9999 counts LCD

Range Selection:

Auto

Overload Indication:

OL

Power Consumption:

40mA

Low Battery Indication:

Battery Life:

3000 measurements

Sampling Time:

0.5 seconds

Operating Temperature:

0°C to 50°C (14°F to 122 °F)

Operating Humidity:

less than 85% relative

Altitude:

up to 2000M

Storage Temperature:

-20°C to 60°C (-4°F to 122 °F)

Storage Humidity:

less than 75% relative

Weight:

640g / 1.4 lbs

Accessories:

Resistance Calibration Plate x 1

9V Battery (Installed) x 1

Users Manual x 1

Carrying Case x 1
