Home > Products > Measurement & Meter > ( Temperature Calibrator ) TES Model: PROVA-125

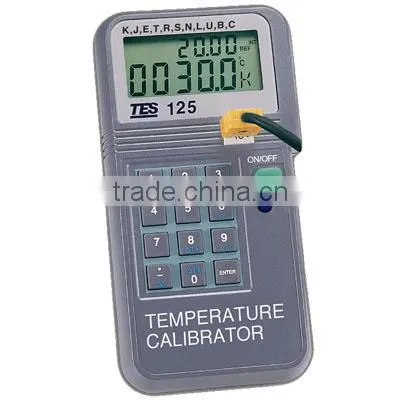

( Temperature Calibrator ) TES Model: PROVA-125
- 2017 Piece / Pieces per Month
- SHANGHAI
- Credit Card PayPal
-
Acrel AMC16Z-FAK48 Electric Module Multi Channel Current Detection Module For Data Center Precision Cabinet
-
Acrel AMC16Z-FAK48 Electric Muti channel Monitoring Module Data Center Precision Cabinet
-
Acrel AMC16Z-FAK48 Electric Muti Channel Monitoring Module Data Center Precision Cabinet
-
48 Circuit Monitoring Data Center Monitor Power Supply Management Server Multi Loop Energy Meter AMC16Z-FAK48
-
Acrel AMC16Z-FAK48 Electric Muti Channel Monitoring Module Data Center Precision Cabinet
-
Din Rail Ac Power Meter AMC16Z-FAK48 Multi-circuit Energy Meter One RS485 Communication 48 Branch Full Electric Parameter
Product Details
| Place of Origin: | Taiwan | Brand Name: | TES | Model Number: | PROVA-125 |
| Measuring Current Range: | 0-20A | Measuring Voltage Range: | 0-9999 | Measuring Resistance Range: | 2 -200M |
| Measuring Capacitance Range: | 9999uF | Measuring Inductance Range: | 0----1999H | Operating Temperature: | -40 to 1372℃ |
| Dimensions: | 193mm(L)X91mm(W)X53mm(H) |
Product Description
Electrical Specifications:
(23℃±5℃, 10 minutes after power is on)
Type | Internal Temperature Reference (0.1°C, 0.1°F Resolution, 100Ω Output Impedance) | External Temperature Reference (0.1°C, 0.1°F Resolution, 100Ω Output Impedance) | ||||||
°C | °F | °C | °F | |||||
Range | Accuracy | Range | Accuracy | Range | Accuracy | Range | Accuracy | |
K | -200 ~ -100 -100 ~ -25 -25 ~ 120 120 ~ 1000 1000 ~ 1370 | ±0.5 ±0.4 ±0.4 ±0.4 ±0.5 | -328 ~ -148 -148 ~ -13 -13 ~ 248 248 ~ 1832 1832 ~ 2498 | ±0.9 ±0.7 ±0.7 ±0.8 ±1.0 | -200 ~ -100 -100 ~ -25 -25 ~ 120 120 ~ 1000 1000 ~ 1370 | ±0.3 ±0.2 ±0.2 ±0.2 ±0.3 | -328 ~ -148 -148 ~ -13 -13 ~ 248 248 ~ 1832 1832 ~ 2498 | ±0.5 ±0.3 ±0.3 ±0.4 ±0.6 |
J | -200 ~ -100 -100 ~ -30 -30 ~ 150 150 ~ 760 760 ~1050 | ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 | -328 ~ -148 -148 ~ -22 -22 ~ 302 302 ~ 1400 1400 ~ 1922 | ±0.8 ±0.7 ±0.7 ±0.7 ±0.8 | -200 ~ -100 -100 ~ -30 -30 ~ 150 150 ~ 760 760 ~1050 | ±0.2 ±0.2 ±0.2 ±0.2 ±0.2 | -328 ~ -148 -148 ~ -22 -22 ~ 302 302 ~ 1400 1400 ~ 1922 | ±0.4 ±0.3 ±0.3 ±0.3 ±0.4 |
E | -150 ~ -100 -100 ~ -25 -25 ~ 350 350 ~ 650 650 ~ 800 | ±0.6 ±0.4 ±0.4 ±0.4 ±0.4 | -238 ~ -148 -148 ~ -13 -13 ~ 662 662 ~ 1202 1202 ~ 1472 | ±1.1 ±0.7 ±0.7 ±0.7 ±0.7 | -150 ~ -100 -100 ~ -25 -25 ~ 350 350 ~ 650 650 ~ 800 | ±0.4 ±0.2 ±0.2 ±0.2 ±0.2 | -238 ~ -148 -148 ~ -13 -13 ~ 662 662 ~ 1202 1202 ~ 1472 | ±0.7 ±0.3 ±0.3 ±0.3 ±0.3 |
T | -200 ~ -150 -150 ~ 0 0 ~ 120 120 ~400 | ±0.7 ±0.4 ±0.4 ±0.4 | -328 ~ -238 -238 ~ 32 32 ~ 248 248 ~ 752 | ±1.3 ±0.8 ±0.7 ±0.7 | -200 ~ -150 -150 ~ 0 0 ~ 120 120 ~400 | ±0.5 ±0.2 ±0.2 ±0.2 | -328 ~ -238 -238 ~ 32 32 ~ 248 248 ~ 752 | ±0.9 ±0.4 ±0.3 ±0.3 |
R | 0 ~ 250 250 ~ 400 400 ~ 1000 1000 ~ 1760 | ±0.7 ±0.5 ±0.5 ±0.5 | 32 ~ 482 482 ~ 752 752 ~ 1832 1832 ~ 3200 | ±1.3 ±1.0 ±0.9 ±1.0 | 0 ~ 250 250 ~ 400 400 ~ 1000 1000 ~ 1760 | ±0.5 ±0.3 ±0.3 ±0.3 | 32 ~ 482 482 ~ 752 752 ~ 1832 1832 ~ 3200 | ±0.9 ±0.6 ±0.5 ±0.6 |
Type | Internal Temperature Reference (0.1°C, 0.1°F Resolution, 100 ΩOutput Impedance) | External Temperature Reference (0.1°C, 0.1°F Resolution, 100Ω Output Impedance) | ||||||
°C | °F | °C | °F | |||||
Range | Accuracy | Range | Accuracy | Range | Accuracy | Range | Accuracy | |
S | 0 ~ 250 250 ~ 1000 1000 ~ 1400 1400 ~ 1760 | ±0.7 ±0.5 ±0.5 ±0.6 | 32 ~ 482 482 ~ 1832 1832 ~ 2552 2552 ~ 3200 | ±1.3 ±1.0 ±1.0 ±1.1 | 0 ~ 250 250 ~ 1000 1000 ~ 1400 1400 ~ 1760 | ±0.5 ±0.3 ±0.3 ±0.4 | 32 ~ 482 482 ~ 1832 1832 ~ 2552 2552 ~ 3200 | ±0.9 ±0.6 ±0.6 ±0.7 |
N | -200 ~ -100 -100 ~ -25 -25 ~ 120 120 ~ 410 410 ~ 1300 | ±0.5 ±0.4 ±0.4 ±0.4 ±0.5 | -328 ~ -148 -148 ~ -13 -13 ~ 248 248 ~ 770 770 ~ 2372 | ±1.0 ±0.8 ±0.7 ±0.7 ±0.8 | -200 ~ -100 -100 ~ -25 -25 ~ 120 120 ~ 410 410 ~ 1300 | ±0.3 ±0.2 ±0.2 ±0.2 ±0.3 | -328 ~ -148 -148 ~ -13 -13 ~ 248 248 ~ 770 770 ~ 2372 | ±0.6 ±0.4 ±0.3 ±0.3 ±0.4 |
L | -200 ~ -100 -100 ~ 900 | ±0.5 ±0.4 | -328 ~ -148 -148 ~ 1652 | ±0.9 ±0.7 | -200 ~ -100 -100 ~ 900 | ±0.3 ±0.2 | -328 ~ -148 -148 ~ 1652 | ±0.5 ±0.3 |
U | 0 ~ 600 | ±0.4 | 32 ~ 1112 | ±0.7 | 0 ~ 600 | ±0.2 | 32 ~ 1112 | ±0.3 |
B | 600 ~ 800 800 ~ 1000 1000 ~ 1550 1550 ~ 1820 | ±0.7 ±0.6 ±0.5 ±0.5 | 1112 ~ 1472 1472 ~ 1832 1832 ~ 2822 2822 ~ 3308 | ±1.2 ±1.1 ±1.0 ±0.9 | 600 ~ 800 800 ~ 1000 1000 ~ 1550 1550 ~ 1820 | ±0.5 ±0.4 ±0.3 ±0.3 | 1112 ~ 1472 1472 ~ 1832 1832 ~ 2822 2822 ~ 3308 | ±0.8 ±0.7 ±0.6 ±0.5 |
C | 0 ~ 150 150 ~650 650 ~ 1000 1000 ~ 1800 1800 ~ 2310 | ±0.5 ±0.4 ±0.5 ±0.6 ±0.9 | 32 ~ 302 302 ~ 1202 1202 ~ 1832 1832 ~ 3272 3272 ~ 4190 | ±0.9 ±0.8 ±0.9 ±1.1 ±1.6 | 0 ~ 150 150 ~650 650 ~ 1000 1000 ~ 1800 1800 ~ 2310 | ±0.3 ±0.2 ±0.3 ±0.4 ±0.7 | 32 ~ 302 302 ~ 1202 1202 ~ 1832 1832 ~ 3272 3272 ~ 4190 | ±0.5 ±0.4 ±0.5 ±0.7 ±1.2 |
mV | -9.999 ~ 60 | 10 µV | -9.999 ~ 60 | 10 µV | -9.999 ~ 60 | 10 µV | -9.999 ~ 60 | 10 µV |
General Specifications:
Dimension: | 88 x 168 x 26 mm (3.46" x 6.61" x 1.03") |
Battery Type: | 9V Alkaline Battery |
Display: | 4+ 5 Digits |
Operating Temperature: | 0°C to 50°C (32°F to 122°F) |
Operating Humidity: | less than 85% relative |
Storage Temperature: | -20°C to 60°C (-4°F to 140°F) |
Storage Humidity: | less than 85% relative |
Weight: | 330g / 11.63 oz |
Accessories: | Carrying case x 1 Users Manual x 1 9V Alkaline Battery x 1 K type thermocouple connector |
Remark:
Payment: Paypal, western union, credit card, bank transfer.
Warranty:1- 5 years
Defective rate: Less than 0.7%
MOQ: 1PCS
Packaging: Blister&package, gift box, carton
Delivery time: 2-7 days
OEM available
We are professionally manufacturing Power supply, LED Drivers,instrument
and meters and so on. Original quality, high-technic design, competitive price.
Welcome your inquiry!
