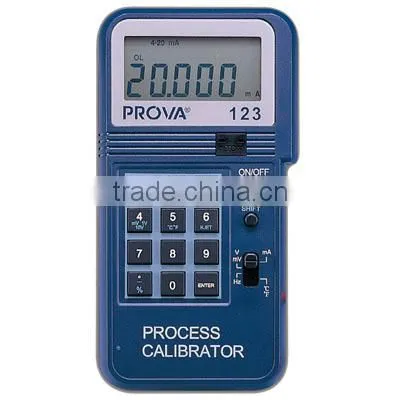

( Process Calibrator ) TES Model: PROVA-123

( Process Calibrator ) TES Model: PROVA-123 thumbnail-1
( Process Calibrator ) TES Model: PROVA-123 photo-1
US$ 1 - 199 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
TES
Model Number:
PROVA-123
Contact Supplier Request Quote Chat Now
Hangzhou Gigamega New Energy Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name TES
Model Number PROVA-123
Measuring Current Range 0-20A
Measuring Voltage Range 0-9999
Measuring Resistance Range 2 -200M
Measuring Capacitance Range 9999uF
Measuring Inductance Range 0----1999H
Operating Temperature -40 to 1372℃
Dimensions 193mm(L)X91mm(W)X53mm(H)

 Process Calibrator PROVA-123|TES Electrical Electronic Corp.

Product Features
  • 4-20mA, 0-20mA, 0-24mA with 1 m A resolution
  • 0-100mV with 10 m V resolution
  • 0-12V with 1mV resolution
  • Thermocouple K,J,E,T TYPE 1 o C 1 o F resolution
  • Frequency 2 - 50,000Hz

Process Calibrator PROVA-123|TES Electrical Electronic Corp.

Electrical Specifications: (23℃±5℃, 10 minutes after power is on)







mA DC Current:



(1KΩMax. Load, 24V Loop Supply)




Range



Resolution



Accuracy



4 - 20mA, 0 - 20mA, 0 -24 mA



1μA



± 0.025% ±3μA




Beeper warning when output is open and specified output > 1mA







mV, V DC Voltage:



(1mA Supply Current)




Range



Resolution



Accuracy



0 - 100.00mV



10μV



± 0.05% ± 30μV



0 - 10.000V



1mV



± 0.05% ± 3mV



0 – 1.0000V



100μV



± 0.05% ± 300μV




Beeper warning when output is short and specified voltage output > 10mV







K, J, E, T type Thermocouples:



(1°C, 1°F Resolution, 1KΩ Load Min.)




Range



Accuracy



Range



Accuracy



K: -200 to -100 °C



± 2.0°C



K: -328 to -148°F



± 3.6°F



K: -100 to 0 °C



± 1.1°C



K: -148 to 32°F



± 1.8°F



K: 0 to 1370 °C



± 0.8°C



K: 32 to 2400°F



± 1.5°F



J: -100 to 0 °C



± 0.9°C



J: -148 to 32°F



± 1.6°F



J: 0 to 760 °C



± 0.7°C



J: 32 to 1400°F



± 1.2°F



E: -100 to 0 °C



± 0.9°C



E: -148 to 32°F



± 1.6°F



E: 0 to 700 °C



± 0.7°C



E: 32 to 1292°F



± 1.2°F



T: -200 to 0 °C



± 1.0°C



T: -328 to 32°F



± 1.8°F



T: 0 to 400 °C



± 0.8°C



T: 32 to 752°F



± 1.5°F






Frequency:



(1 - 125Hz, TTL 0 – 5V, 1KΩ Load Min.)




Range



Resolution



Accuracy



1 - 125 Hz



1 Hz



± 0.04Hz








Available Frequencies



(126 - 62500Hz, TTL 0 - 5V, Accuracy ± 0.01% ± 0.04Hz, 1KΩ Load Min):



126.00   127.03   128.07   129.13   130.20   131.30   132.41   133.54   134.12   135.28



136.46   137.06   138.27   139.50   140.13   141.40  142.04    143.34   144.00   145.34



146.02   147.40   148.10   149.52   150.24   151.69   152.43   153.18   154.70   155.47



………………………………………….



16666.66 17241.37 17857.14 18518.51 19230.76 20000.00 20833.33 21739.13 22727.27





23809.52 25000.00 26315.78 27777.77 29411.76 31250.00 33333.33 35714.28 38461.53





41666.66 45454.54 50000.00 55555.55 62500.00







General Specifications:







Dimension:

88 x 168 x 26 mm

(3.46" x 6.61" x 1.03")

Battery Type:

9V Alkaline Battery

Display:

4 and 5 Digits

Power Consumption:

60mA - 180mA

Operating Temperature:

0C to 50C

(32°F to 122°F)

Operating Humidity:

less than 85% relative

Storage Temperature:

-20C to 60C

(-4°F to 140°F)

Storage Humidity:

less than 85% relative

Weight:

330g / 11.63 oz

Accessories:

Carrying case x 1

Users Manual x 1

External Battery Pack: 1.5V AA Batteries x 6

9V Alkaline Battery x 1

Alligator clip x 1

K type thermocouple connector

Test leads x 1











( Process Calibrator ) TES Model: PROVA-123



Remark:
Payment: Paypal, western union, credit card, bank transfer.
Warranty:1- 5 years
Defective rate: Less than 0.7%
MOQ: 1PCS
Packaging: Blister&package, gift box, carton
Delivery time: 2-7 days

OEM available
