Specifications
Automated 3-Pole Plug Assembly MachineCapacity:25-30PCS/Min
Usage: automated connector 3-Pole Plug assembly machine

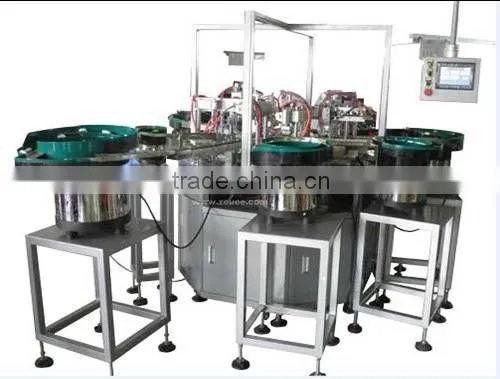

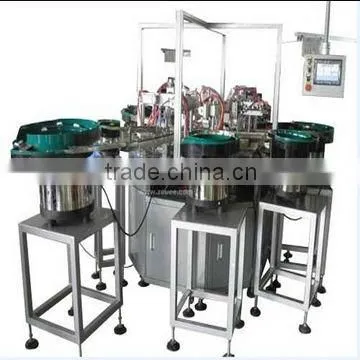

Automated Connector 3-Pole Plug assembly machine
Model: ZEUEE-GN11082301
Capacity: 25-30PCS/Min
Power: AC220V 50HZ
Pressure: 0.6Mpa±0.1
Weight: 200KG
Size: 1800(L)*1600(W)*650(H)mm
Usage: Applied to 3-Pole Plug automatic assembling
Quality:
The accessories of the machine adopted FESTO/SMC original pneumatic component, Taiwan HIWIN precision linear guide, and precision module, which are made of S136, the Mitsubishi PLC , HMI, and other electrical components, which are all using German brand.
Efficiency:
1. Automatically feeding the plastic cover, base, plug piece, wire pressing piece and screw
2. Fully automatic assembly, process monitoring, detecting and sorting of “good” product and “rejected” product
3. Unloading the finished product automatically
Intelligence:
It equips with automatic alarming system, which reporting irregular operations and giving the relative solutions in the form of message. It also can induct the incoming materials automatically and point out the lack of materials, predict and record the capacity.
Shipping and Packing
1.Quality Guarantee Service
2.After-sales service provided: Engineers available to service machinery overseas
3.Product life-long maintenance services
4.Deadline Maintenance Service
5.Telephone hotline about techniques
6.Online Service
Our sellers and technologist would like to help you according to your requirements. We provide the best services. For more details, please feel free to contact us.
Company information
Shenzhen Zeyu Automatic Equipment Company (ZEUEE) is a high-tech enterprise which specializes in the research and development, manufacturing, marketing, and service of non-standard automatic equipment, We are dedicated to provide automatic solutions with high efficiency, high quality, low cost and fully automatic. The application are widely used in many fields for automatic production such as standard fasteners, metal accessories, automotive electronic components, railway electronic components, aviation electronic components, civil electronic components, household appliance, locks, construction hardware, medical instrument parts, cosmetic assembly and lighter assembly, etc. The automatic solution can effectively solve the increasing severe problems of high cost, poor efficiency, low quality, recruitment difficult and hard management, etc. It also can save resources, increase benefit, and achieve the concept of "Harmony and Win-win".
To know more about us, please visit .
Company overview
Machining department
The production and assembly department
Our Cooperate partner
Certification:
We are experienced and will offer very high quality, high efficiency, lost cost and strong innovation ability machines. If you have any inquires of our products, please feel free to contact me.
