Specifications
Fiber Accessories Automatic Assembly Machine1. Hardware Hinges
2. OEM
3.With alarm system
4. With one year warranty

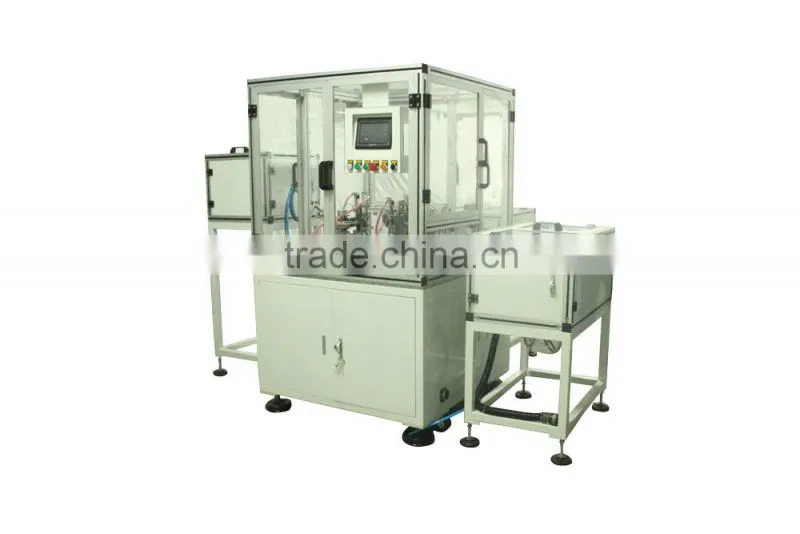

Fiber Accessories Automatic Assembly Machine
Specifications of Fiber Accessories Automatic Assembly Machine :
Brand |
ZEUEE |
Model |
ZEUEE-A26-ZY01-01 |
Capacity |
25-30pcs/Min |
Power Supply |
AC220V 50HZ |
Air Pressure |
0.4-0.6Mpa |
Weight |
340KG |
Size |
1500(L)*1400(W)*1900(H) MM |
The usage of Fiber Accessories Automatic Assembly Machine:
It is applied to the full automatic assembling of electronic hardware products .
The production is deliveried automatically and the materials are loaded through vibration plate. The hardware accessaries will be automatically assemb;ied. And it is set with the ablities of abnormal alarming and infotip guiding, materials holding direction, lack of materials reminding, preset production and counting etc.
Constituent Parts:
Bodyframe, hood, display, feeder, vibration plate and so on.
The features of Fiber Accessories Automatic Assembly Machine:
1. The accessories of the machine is of FESTO/SMC original pneumatic component, Taiwan Hiwin precision linear guide, precision module, which are made of S136. With the Mitsubishi PLC, and other electrical components, which are all using German brand.
2. With the full automatic system, it is a full automatic equipment combined with automatic feeding
hardware products and springs,automatic selecting direction and sleeving.
3. With automatic alarming system reporting irregular issues and giving the corresponding solutions in the form of message.
It has the automatic functions of detecting the direction of incoming materials and point out the lack of materials, pre-setting productivity and recording the capacity etc.
Our advantages:
Our advantages |
|
1. With SMC and FESTO original pneumatic component, Taiwan HIWIN precision slides, S136 finished precision modules, Mitsubishi PLC control/touch screen interface. And other electronic components are of Germany brands.
|
|
2. The machine is by the way of nonstandard, the procedure of the machine is flexible. We could shape most parts of the machine.
|
3. We have 150 workers in the factory and most of them are professional |
4. We have about 40 programmers to program for every machine that produced in our factory. |
|
5. We promise 1-year warranty period, wherever the customer is. If the machine malfunctioned, we will let our technician abroad to your company to debug.
|
|
6. Our factory locates in the industrial park in Shenzhen, where is quite convenient for shipping.
|
|
7. We are not fear to invite you to visit our factory.
|
About Our Company:
Shenzhen Zeyu Automatic Equipment Company (ZEUEE) is a high-tech enterprise which specializes in the research and development, manufacturing, marketing, and service of non-standard automatic equipment, We are dedicated to provide automatic solutions with high efficiency, high quality, low cost and fully automatic.
The application are widely used in many fields for automatic production such as standard fasteners, metal accessories, automotive electronic components, railway electronic components, aviation electronic components, civil electronic components, household appliance, locks, construction hardware, medical instrument parts, cosmetic assembly and lighter assembly, etc. The automatic solution can effectively solve the increasing severe problems of high cost, poor efficiency, low quality, recruitment difficult and hard management, etc. It also can save resources, increase benefit, and achieve the concept of "Harmony and Win-win".
More pics about Fiber Accessories Automatic Assembly Machine
Other Machines:
Our Clients:
Our Certification:
Parts of our factory:
The packaging for Fiber Accessories Automatic Assembly Machine:
