Specifications
Pole L plug assembly machine1. Hardware Hinges
2. OEM
3.With alarm system
4. With one year warranty

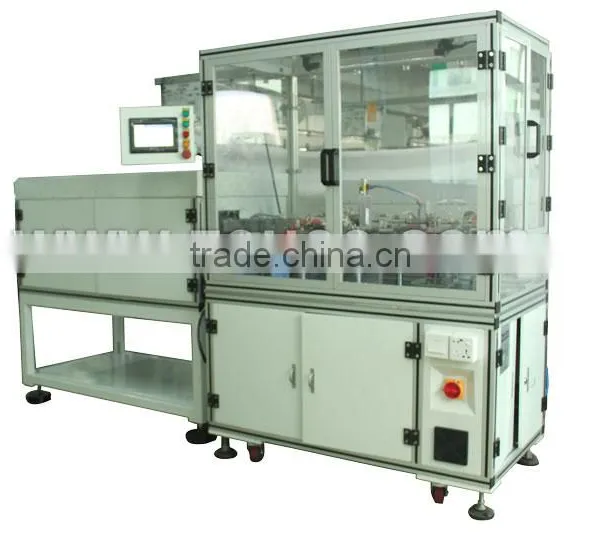

Pole L plug assembly machine
Specifications of Pole L plug assembly machine:
Brand |
ZEUEE |
Model |
ZEUEE-LGN11050501 |
Capacity |
25-30pcs/Min |
Power Supply |
AC220V 50HZ 2200W |
Air Pressure |
0.5-0.8Mpa |
Weight |
180KG |
Size |
2600(L)*1200(W)*750(H) MM |
The usage of Pole L plug assembly machine:
Applied to Pole E of plug automatic assembling
The production is deliveried automatically and the materials are loaded through vibration plate. The hardware accessaries will be automatically assemb;ied. And it is set with the ablities of abnormal alarming and infotip guiding, materials holding direction, lack of materials reminding, preset production and counting etc.
Constituent Parts:
Bodyframe, hood, display, feeder, vibration plate and so on.
The features of Pole L plug assembly machine:
1.The accessories of the machine adopted FESTO/SMC original pneumatic component, Taiwan THK precision slide rail, precision mold is grinding of S136, cutter parts is made of SKD11 material. Mitsubishi PLC touch screen operation interface. And other electrical fittings are all using German brand.
2.Automatic Loading screw, spacer and sheet copper of pole E, to achieve assembling operation flow and testing for Pole E of plug automatically.
3. With automatic alarming system reporting irregular issues and giving the corresponding solutions in the form of message. It can also induct the incoming materials automatically and point out the lack of materials, predict and record the capacity.
Our advantages:
Our advantages |
|
1. With SMC and FESTO original pneumatic component, Taiwan HIWIN precision slides, S136 finished precision modules, Mitsubishi PLC control/touch screen interface. And other electronic components are of Germany brands.
|
|
2. The machine is by the way of nonstandard, the procedure of the machine is flexible. We could shape most parts of the machine.
|
3. We have 150 workers in the factory and most of them are professional |
4. We have about 40 programmers to program for every machine that produced in our factory. |
|
5. We promise 1-year warranty period, wherever the customer is. If the machine malfunctioned, we will let our technician abroad to your company to debug.
|
|
6. Our factory locates in the industrial park in Shenzhen, where is quite convenient for shipping.
|
|
7. We are not fear to invite you to visit our factory.
|
About Our Company:
Shenzhen Zeyu Automatic Equipment Company (ZEUEE) is a high-tech enterprise which specializes in the research and development, manufacturing, marketing, and service of non-standard automatic equipment, We are dedicated to provide automatic solutions with high efficiency, high quality, low cost and fully automatic.
The application are widely used in many fields for automatic production such as standard fasteners, metal accessories, automotive electronic components, railway electronic components, aviation electronic components, civil electronic components, household appliance, locks, construction hardware, medical instrument parts, cosmetic assembly and lighter assembly, etc. The automatic solution can effectively solve the increasing severe problems of high cost, poor efficiency, low quality, recruitment difficult and hard management, etc. It also can save resources, increase benefit, and achieve the concept of "Harmony and Win-win".

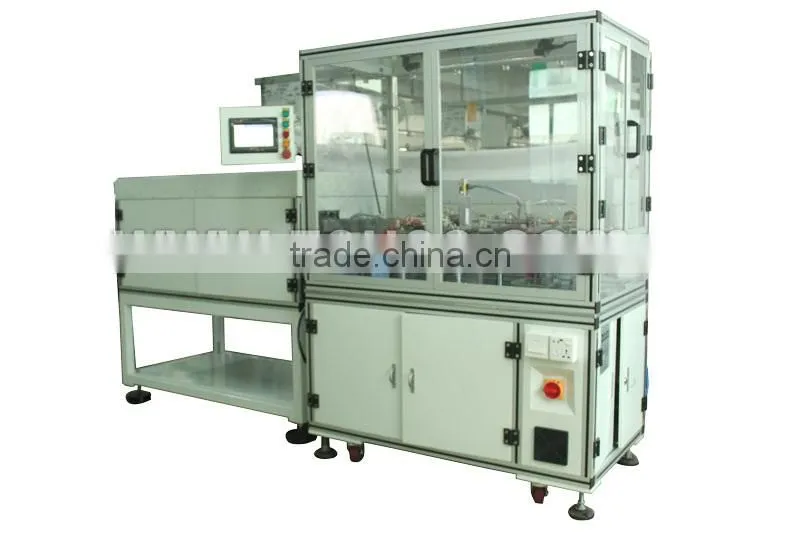

More pics about Pole L plug assembly machine
Other Machines:
Our Clients:
Our Certification:
Parts of our factory:
The packaging for Pole L plug assembly machine:
