Usage:

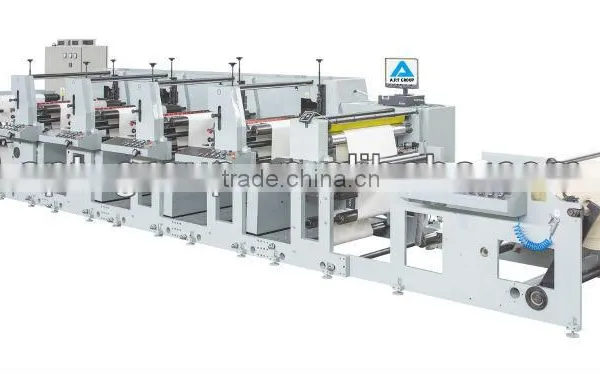

APTY-1000 Four-Color Flexographic Printing Machine is designed by the traits of printing goods. it reach the aim of printing environment by matching with environmental water quality, UV ink, high precision of laser engraving ceramic anilox roller and photosensitive board. It adopts combinatorial frame. Its functions include paper rolling, surface of paper cleaning, correcting & receiving, unwinding tension control system,infrared rays' printing, quality checking system, stork cutting, rewinding, PLC control and so on. According to customers' requirements, the machine can choose to use Adjust Roller, Corona Treatment, Longitudinal Point-line Knife, Edge-trimming Knife, Rotary Die-cutter, Anti-static Device, Rewinding Unit, Cold/ Hot Stamping, Tectorial, Reverse Printing Device, Refrigeration Roll, UV Curving, Abruption & Complex Device, Incessantly Receiving Device etc. Colors and width can also be chose according to the requirements.
Application:
-Beverage packaging
-paper cup printing
-food/pharmacy packaging printing
Characteristics:
-Casting board increase machine stability
-Automatic web guiding as standard
-auto tension controller with powder brakes, stable and accurate tension control system
-digital temperature controllers
-printing unit cassette design, anilox roller and cylinder quick change & quick set up
-accurate lateral and circumferential registration
-seperate fast drying for every stage, high efficiency drying capacity
-standard web inspection system, keep inspects printing image
-handy control panel
-pressure between plate cylinder and anilox roller, plate cylinder and pressure roller is pneumatically, easy to adjust pressure
-Air shaft for unwind and rewind
-digital length display and speed display
Main Technical Parameters:
Machine Model |
APTY-1000-4 |
Max. Web Width |
1015mm (39.96") |
Max. Printing Width |
1000mm (39.37") |
Max. Repeat Printing Length |
241.3-1219mm (9.5"-48") |
Repeat Die Cutting Length |
241.3-1219mm (9.5"-48") |
Max. Unwind Dia. |
1524mm (60") |
Max. Rewind Dia. |
1524mm (60") |
Gear Size |
1/8CP |
Max. Speed |
152m/min |
Main Motor Drive |
20-30kw |
Lubrication System |
Automatic |
Air Pressure |
0.6Mpa |
Power Supply |
380V, 50Hz, 3Phase |
