APT-PS-12 Double-Side PE Coated Paper Cup Forming Machine

APT-PS-12 Double-Side PE Coated Paper Cup Forming Machine thumbnail-1
APT-PS-12 Double-Side PE Coated Paper Cup Forming Machine thumbnail-2
APT-PS-12 Double-Side PE Coated Paper Cup Forming Machine thumbnail-3
APT-PS-12 Double-Side PE Coated Paper Cup Forming Machine thumbnail-4
APT-PS-12 Double-Side PE Coated Paper Cup Forming Machine photo-1
APT-PS-12 Double-Side PE Coated Paper Cup Forming Machine photo-2
APT-PS-12 Double-Side PE Coated Paper Cup Forming Machine photo-3
APT-PS-12 Double-Side PE Coated Paper Cup Forming Machine photo-4
US$ 1,000 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Paper Cup Machine
Processing Type:
Printing Machine
Contact Supplier Request Quote Chat Now
Ruian APT I/E Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Product Type Paper Cup Machine
Processing Type Printing Machine
Place of Origin Zhejiang, China
Brand Name APT MACHINERY
Model Number APT-PS-12
Voltage 380V/440V
Power(W) 4.8KW
Dimension(L*W*H) 2.6*1.05*1.55m
Weight 1700KG
Certification CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Features:

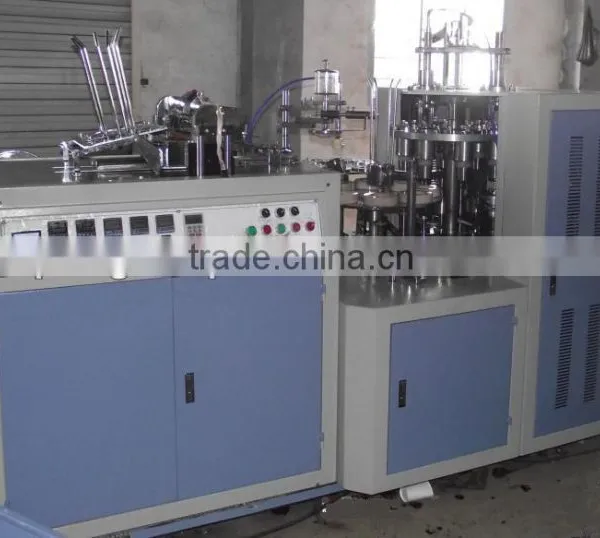

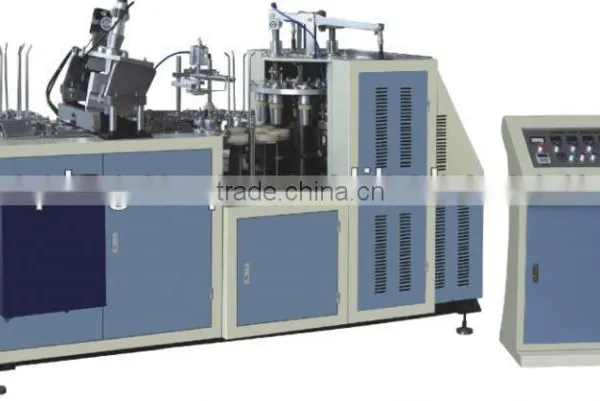

APT-PS-12 Double-Side PE Coated Paper Cup Forming Machine is a kind of full automatic cup forming machine for making double PE paper cups. It has functions of automatic paper feeding row by row, ultrasonic sealing, paper cylinder transferred by mechanical arm, oiling, bottom punching, bottom folding, preheating, bottom knurling, cup stacking and etc.



Main Technical Parameter:

Model

APT-PS-12

Paper Cup Size

4~12oz  (can be made according to customer's request)

Running Speed

30~55pcs/min

Raw Material

180~380gsm double PE coated paper

Max. Cup Size

Top diameter: 85mm
Cup height: 125mm
Bottom diameter: 60mm

Min.Cup Size

Top diameter: 45mm
Cup height: 35mm
Bottom diameter: 35mm

Total Power

4.8KW

Supply Power

380V or 220V, 50HZ, 3PH

Weight

1700kg

Dimension

2.6× 1.05× 1.55m
