China Cheapest Paper Cup Machine
- Ningbo/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
APT-PS-35 Double PE Coated Paper Bowl Forming Machine(Noodle Bowl)
-
APT-12S Paper Cup Shaping Machine With Heater Sealing
-
Automatic High Speed Popcorn Bowl Machine(hot Selling)
-
Single PE Coated Paper Cup Machine Manufacturer
-
China Paper Noodle Bowl Forming Machine
-
China Paper Noodle Bowl Forming Machine Manufacturer
Product Details
| Condition | New | Product Type | Paper Cup Machine | |
| Processing Type | Printing Machine | Place of Origin | Zhejiang, China | |
| Brand Name | APT MACHINERY | Model Number | APT-12D | |
| Voltage | 380V/440V | Power(W) | 4.8KW | |
| Dimension(L*W*H) | 2.6*1.2*1.7m | Weight | 1500KG | |
| Certification | CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Features:

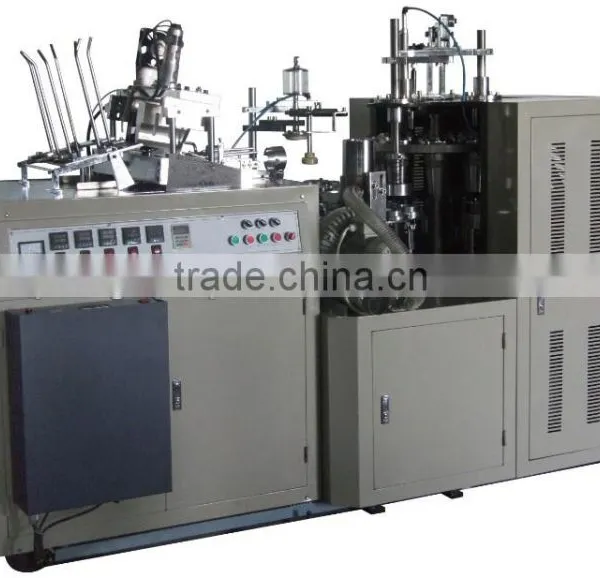

APT-12D Paper Cup Machine with Ultrasonic Sealing is a king of full automatic forming machine. It has functions of automatic paper feeding row by row, ultrasonic sealing, paper cylinder transferred by mechanical arm, oiling, bottom punching, bottom folding, preheating, bottom knurling and cup stacking.

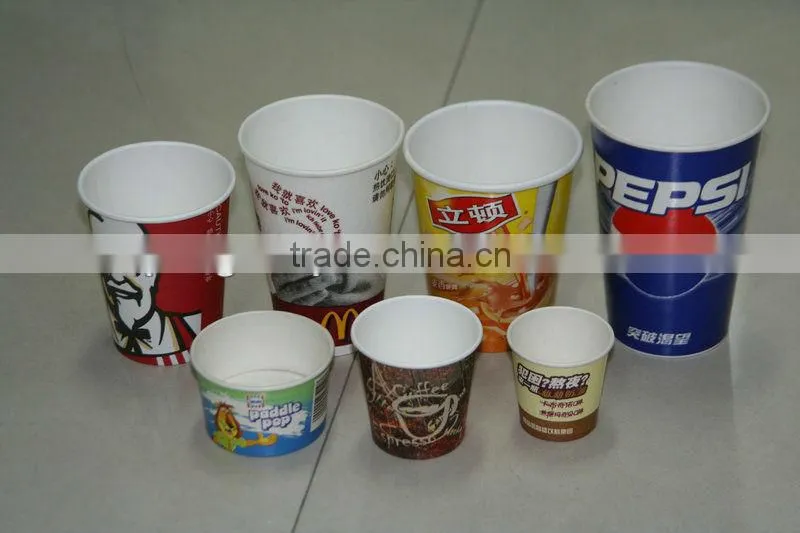

It is suitable for making all kinds of drinking cups and small ice cream cups.
It has inverter for auto speed adjusting; power supply can be 220v or 380v as optional. It stops automatically if any problem controlled by sensors we installed, so that the machine is well protected and becomes more durable.
We adopt separate cam drivers on the left and right of cup side sealing device, so the working status is quiet and stable, which is the top technology owned by us in China.
Main Technical Parameter:
Cup Size | [4-12OZ] | [14-16OZ] | [18-22OZ] |
Running Speed (pcs/min) | 40-50 | 30-40 | 30-40 |
Paper Material | 180-280 Single or double PE coated paper | 180-280 Single or double PE coated paper | 180-280 Single or double PE coated paper |
Cup Size Range | 4-12 Adjustable mould | 14-16 Adjustable mould | 18-22 Adjustable mould |
Total Power | 220V 50Hz 4.8Kw 380V 50Hz 4.8Kw | 220V 50Hz 4.8Kw 380V 50Hz 4.8Kw | 220V 50Hz 4.8Kw 380V 50Hz 4.8Kw |
Weight | 1500kg | 1500kg | 1500kg |
Dimension | 2.6×1.2×1.7 | 2.6×1.2×1.7 | 2.6×1.2×1.7 |
