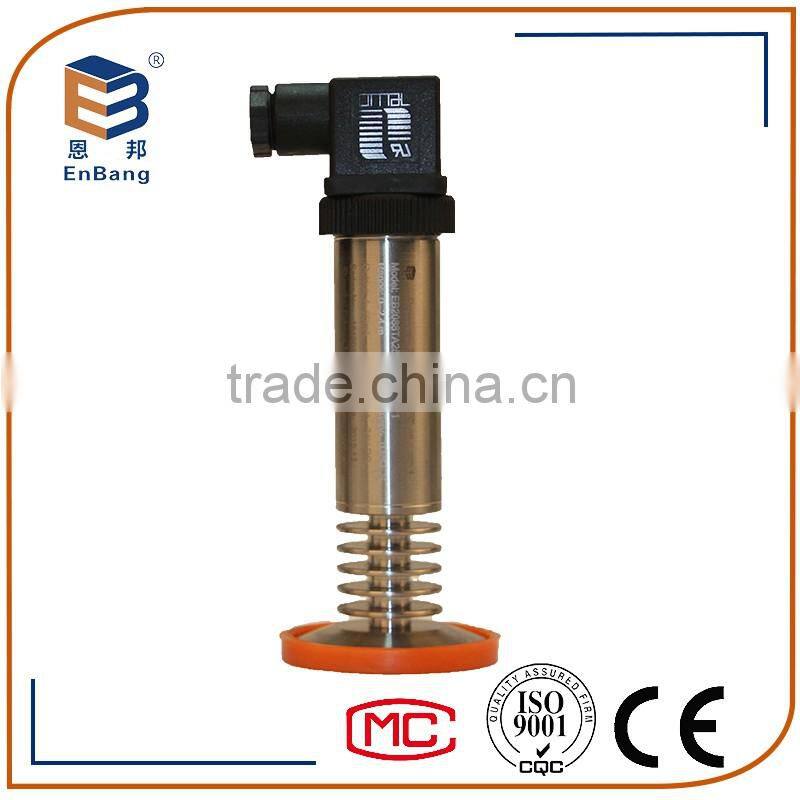

Low Cost Electric Sanitary Type Pressure Sensor

Summary:

Mode EB2088W sanitary type pressure transmitter adopts imported high precision, high stability and anti-corrosion core assembly, the core body and stainless steel shell welded together, without pressure chamber, suitable for all kinds of the pressure measurement place,like high temperature, high viscosity, crystalline medium and easy to pluging place, the requirements to sanitary, easy to clean or sterile environment pressure measurement and control. Widely used in food, beverage, pharmaceutical and other health industries, paint,coating, spraying equipment and other decorative industries, washing, paper, mud, asphalt and other industrial areas. Can choose to simulate 4 - 20mA, intelligent HART protocol or RS485 communication.

In high temperature sanitary type pressure transmitter, the diaphragm in the tip of the thread, sensor in the rear part of the heat dissipation sheet, separated by practical stability in high temperature silicone oil as pressure transmitting medium, to ensure that the food and fermentation temperature and tank cleaning high temperature to the transmitter of the influence. Selection of gauge transmitter, the lead out wire is a guide gas cable, and at the cable ends with molecular plug, to avoid affect the transmitter due to condensation performance. The product has a high operating frequency, suitable for dynamic measurement.

Main features:

L stainless steel diaphragm and full welding structure, clean sanitation, anti fouling, easy cleaning

- small volume, beautiful appearance, high cost

L comply with food hygiene requirements

The high precision, high stability, high strength, high reliability

The high temperature resistance, corrosion resistance, wide application

Main technical parameters:

Measurement range: -100kPa ~ 2.0MPa, 0 ~ 60MPa

Output signal: analog 4 - 20mA, intelligent 4 - HART 20mA protocol communication; RS485

Working voltage: 12 ~ 36V DC, 220V AC 50HZ

Precision: 0.1%F.S; 0; 2%F.S; 0.5%F.S

Thread interface: clip, flange connection (special specification and diaphragm material can be customized according to customer requirements)

Temperature range: -20 ~ 70℃

Explosion proof grade: ordinary type; flameproof intrinsically safe ExiaIICT6 ExdIIBT4;

Electrical connection: direct lead, Hersman joint, air plug, terminal (special specification according to customer demand for customized)

Overload pressure: 2 times
