Low Cost Electric Water Pipe Pressure Sensor

Summary :

EB 2088T series pressure transmitter adopts the international advanced level of diffused silicon sensor core, with high precision electronic components, and the process of laser modulation and temperature compensation, linear compensation, signal amplification, V/I conversion, pressure overload and other process, and the process of long-term aging and stability, etc.. Completed functional testing of over-voltage, over current, reverse, lightning electromagnetic interference,and etc. Applicable to all industries such as petroleum, chemical, metallurgy, power station, ship, pharmaceutical, food and so on. It is a very high cost-performance of products. Can according to customer’s requirement with the scene LED/ LCD meter display and output of industry standard 4 ~ 20mA signal, 0% ~ 100% linear pointer table. According to customer requirements to provide intelligent HART communication output.

Characteristic :

Product performance is stable and reliable, strong overload and impact resistance, compact and firm structure, convenient installation, strong practicability, simple operation

High performance sensitive components: low temperature drift, good stability, high accuracy of measurement

Strong anti-interference ability: waterproof, dustproof, shockproof, anti-corrosion

Wide applicability: this Series products have many types and many kinds of connection mode, small volume, light weight, suitable for all kinds of measurement occasions

Technical Specification:

Measurement range: -100kPa ~ 2.0MPa, 0 ~ 60MPa

Output signal: Analog 4 - 20mA, 1 ~ 5V; Intelligent 4 - 20mA HART protocol communication

Working voltage: 24V DC, 12 ~ 36V DC, 18.5 ~ 220V DC, AC 50HZ, 45V

Precision: 0.1%F.S; 0.2%F.S; 0.5%F.S

Threaded Joint: Screw threads; Clamps; Flange connection (special specification can be customized according to customer demand)

Temperature range: -20 ~ 70ºC

Explosion proof grade: normal; ExiaIICT6; ExdIIBT4;

Electrical connection: direct lead, explosion-proof connection, terminal connection(special specification according to customer demand for customized)

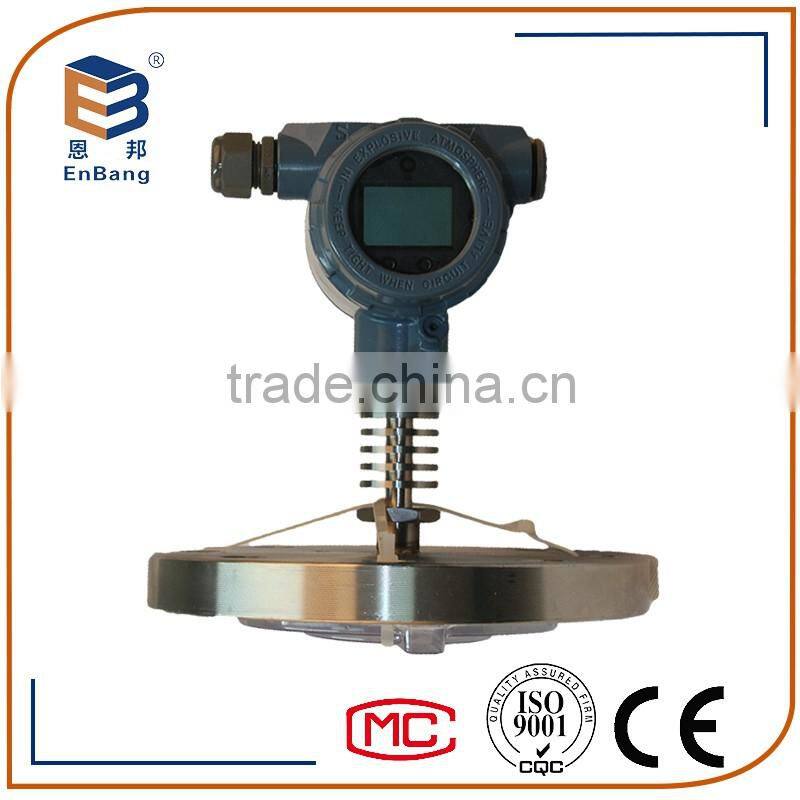

EB2088T Series Flange Pressure Transmitter

Code

Measurement Type

AP

Absolute Pressure

GP

Gauge Pressure

Code

Measurement Span:

Refer to the table 2

Code

Accuracy

2

0.2%

5

0.5%

Code

Explosion proof

P

Normal

d

EdⅡBT4

i

ExiaIICT6

Code

Display:

/

Display:

M1

None

M3

(0~100)% Linear pointer table

M4

3 1/2 LCD Digital Display

M5

3 1/2 LED Digital Display

Code

Output Signal

E

(4~20)mA (1~5V) Analog Signal

S

(4~20)mA Intelligent, with HART protocol

T

Special Specification

Code

Flange Size

1

2”

2

3”

3

4”

Code

Wetted metarials

2

316L stainless steel

3

Hastelloy C-276

4

Monel

5

Tantalum

Code

Extension Length

/

flat

L1

50mm

L2

100mm

L3

150mm

L4

Special Specification
