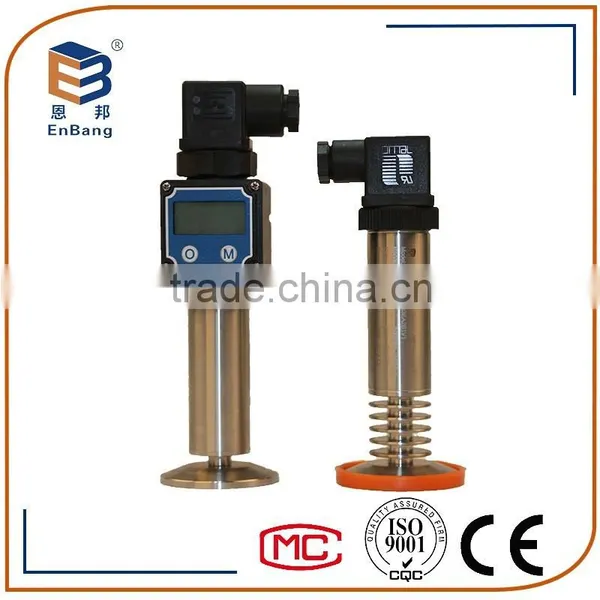

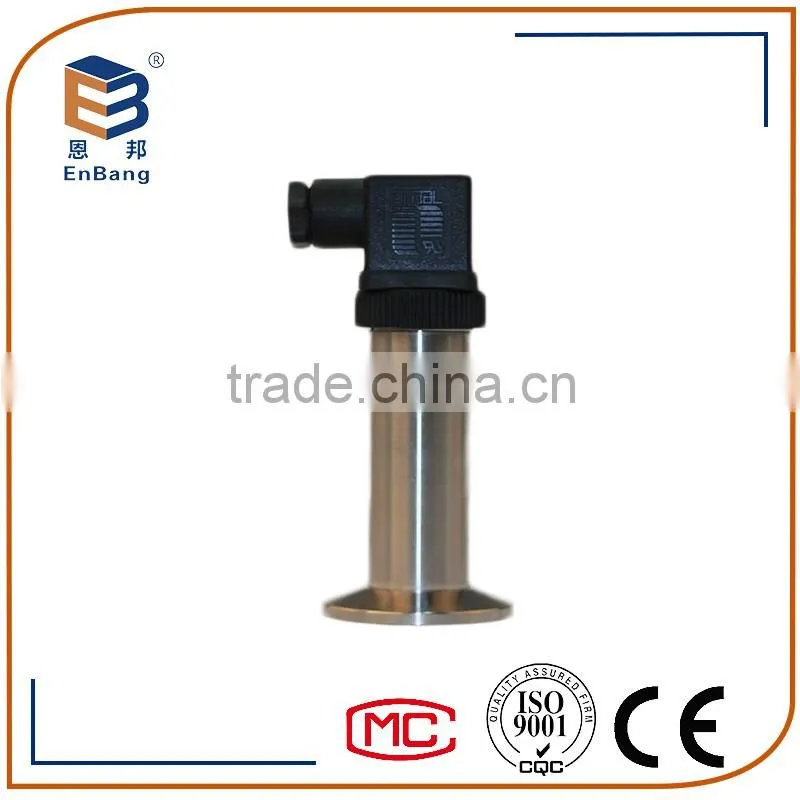

Help CenterDiffusion Silicon Clamp Installation 4 20ma Pressure Sensor
Related Products
-
Low Cost Electric Analog Pressure Sensor With DisplayUS$ 88 - 198MOQ: 1 Piece -
Smart 4-20mA Output Absolute Pressure Sensor With DisplayUS$ 98 - 258MOQ: 1 Piece
-
China Electronic Gas Pressure Sensor With DisplayUS$ 98 - 198MOQ: 1 Piece
-
High Temperture Smart Pressure Transmmitter With LCD DisplayUS$ 128 - 288MOQ: 1 Piece
-
Hot Sales Huba Control Pressure TransmitterUS$ 62 - 98MOQ: 1 Piece

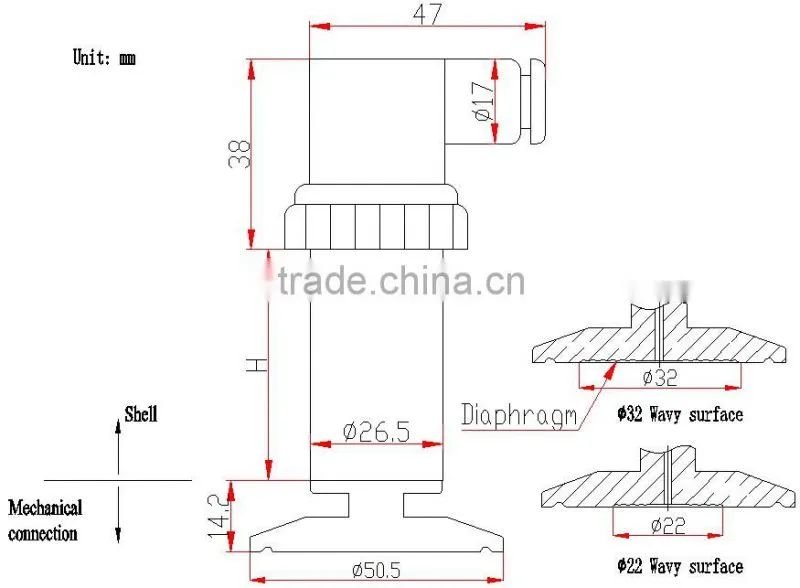

Note: according to the measurement range of the transmitter, output signal and special circumstances H=48 ~ 75, standard H=70
Summary:
Mode EB2088W sanitary type pressure transmitter adopts imported high precision, high stability and anti-corrosion core assembly, the core body and stainless steel shell welded together, without pressure chamber, suitable for all kinds of the pressure measurement place,like high temperature, high viscosity, crystalline medium and easy to pluging place, the requirements to sanitary, easy to clean or sterile environment pressure measurement and control. Widely used in food, beverage, pharmaceutical and other health industries, paint,coating, spraying equipment and other decorative industries, washing, paper, mud, asphalt and other industrial areas. Can choose to simulate 4 - 20mA, intelligent HART protocol or RS485 communication.
In high temperature sanitary type pressure transmitter, the diaphragm in the tip of the thread, sensor in the rear part of the heat dissipation sheet, separated by practical stability in high temperature silicone oil as pressure transmitting medium, to ensure that the food and fermentation temperature and tank cleaning high temperature to the transmitter of the influence. Selection of gauge transmitter, the lead out wire is a guide gas cable, and at the cable ends with molecular plug, to avoid affect the transmitter due to condensation performance. The product has a high operating frequency, suitable for dynamic measurement.
Main features:
L stainless steel diaphragm and full welding structure, clean sanitation, anti fouling, easy cleaning
- small volume, beautiful appearance, high cost
L comply with food hygiene requirements
The high precision, high stability, high strength, high reliability
The high temperature resistance, corrosion resistance, wide application
Main technical parameters:
Measurement range: -100kPa ~ 2.0MPa, 0 ~ 60MPa
Output signal: analog 4 - 20mA, intelligent 4 - HART 20mA protocol communication; RS485
Working voltage: 12 ~ 36V DC, 220V AC 50HZ
Precision: 0.1%F.S; 0; 2%F.S; 0.5%F.S
Thread interface: clip, flange connection (special specification and diaphragm material can be customized according to customer requirements)
Temperature range: -20 ~ 70℃
Explosion proof grade: ordinary type; flameproof intrinsically safe ExiaIICT6 ExdIIBT4;
Electrical connection: direct lead, Hersman joint, air plug, terminal (special specification according to customer demand for customized)
Overload pressure: 2 times
Suffix Codes and Description
EB2088F Series Pressure Transmitter |
|
Code |
Measurement Type |
AP |
Absolute Pressure |
GP |
Gauge Pressure |
Code |
Measurement Span: ( Refer to the 2088 series standard range table ) |
Code |
Accuracy |
1 |
0.1% |
2 |
0.2% |
5 |
0.5% |
Code |
Explosion proof |
P |
Normal |
D |
EdⅡBT4 |
i |
ExiaIICT6 |
Code |
Display: |
/ |
None |
M1 |
(0~100)% Linear pointer table |
M3 |
3 1/2 LCD Digital Display |
M4 |
3 1/2 LED Digital Display |
M5 |
LCD Intelligent Display |
Code |
Process connection |
2 |
Male thread M20 x 1.5 |
3 |
Male thread ½ NPT |
T |
Special Specification |
Code |
Electrical Connection |
1 |
Direct lead (no special instructions, provided by the 1 meter) |
2 |
Hirschmann Joint |
3 |
Aviation Plug |
4 |
Terminal Block |
T |
Special Specification |
Code |
Output Signal |
E |
(4~20)mA (1~5V) Analog Signal |
S |
(4~20)mA Intelligent, with HART protocol |
T |
Special Specification |
Code |
Power supply |
2 |
24V DC |
5 |
220V AC,50Hz |
T |
Special Specification |
1. Delivery in time,delivery time is 7 days for sample and 15 working days for bulk order;
2. We could send the goods , labeled your brand name, to your customer directly, and also can provide neutral product (without brand and our company information)
3. Through strict quality control system and strong production capacity to provide customers with quality products
4. Your inquiry and problems will be replied in 24 hours by well-trained and experienced staffs;
5. After-sale tracking service for all of our clients;
6. We offer 12 months warranty for all of our products from the shipping date.
7. OEM is available; small quantities, mixed bulk orders are also welcome;
8. We also provide paid repair services for out of the warranty period or other brand products.
1. What are your main products?
A:We have a complete quality control system, all of our products will be fully pre-inspection by QC departments before shipping.
A: We need to know the following info:
- Medium information (such as Liquid or gas,etc)
- Output signal (such as 4-20mA)
4. What’s your production capacity and can you offer free samples?
A: Our production capacity is about 6,000 pieces per month, we can offer free samples, however ,you need pay for the samples first, and we will return it after you order the bulk orders.
A: For small orders (less than 20 pieces), we can deliver within 7 working days, for bulk orders, we usually need 15 working days Special accessories, order cycle may be longer . But if you need goods urgently, we can arrange expedited production.
A: We accept the payment terms: L/C,TT, Western Union, Money Gram, etc.
Shanghai enbang Automation Instrument Co., Ltd. (hereinafter referred to as Enbang instrument), has always been committed to in the field of pressure measurement, uphold the spirit of technical innovation and management innovation, with rich sensor R & D and production experience, advanced production and testing equipment and technology, strict testing process sequence, to provide customers with high quality sensors, transmitters and related technical services, superior product quality, perfect service, let us deeply trusted by users.
Enbang instrument advanced experience at home and abroad, to capture a number of technical difficulties in the production of transmitter. Anaerobic type sintering technology, the use of oxide layer problem solve the transmitter pressure sensor filled pipe and glass sintering; pressure sensor and core diaphragm using computer to locate and tensioning technology, the accuracy, static pressure performance and high overload capacity is improved; part of the circuit adopts advanced isolation technique, power supply terminal with isolation transformer and signal terminal with optical coupler isolation. The pressure transmitter has a good anti-jamming capability, to ensure the reliability and stability of the product.
In 10 years, enbang instrument has been with honest and trustworthy, pragmatic, innovative "spirit of enterprise, learning at home and abroad advanced knowledge and technology and business management experience, and constantly improve the management level and the innovation ability of enterprises," excellent products, superior quality, excellent management, excellent service "to meet customer demand, enable us to have a competitive advantage in the sensor industry, provides a guarantee for the sustainable development of enterprises.
Accept: Air,sea and land transportation.
