Summary :

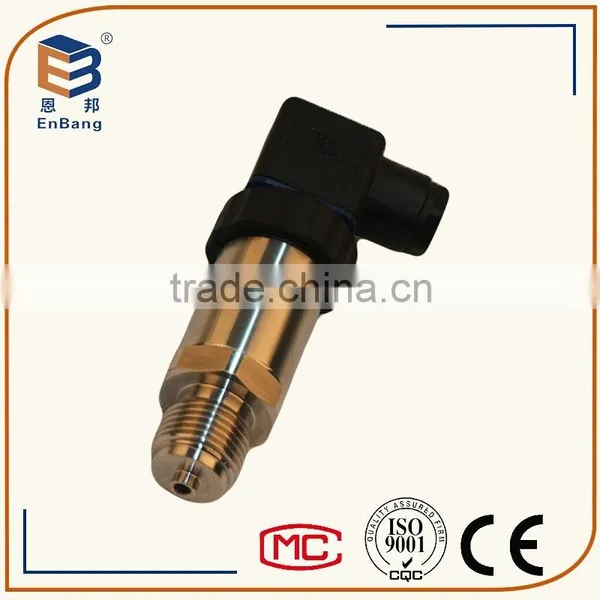

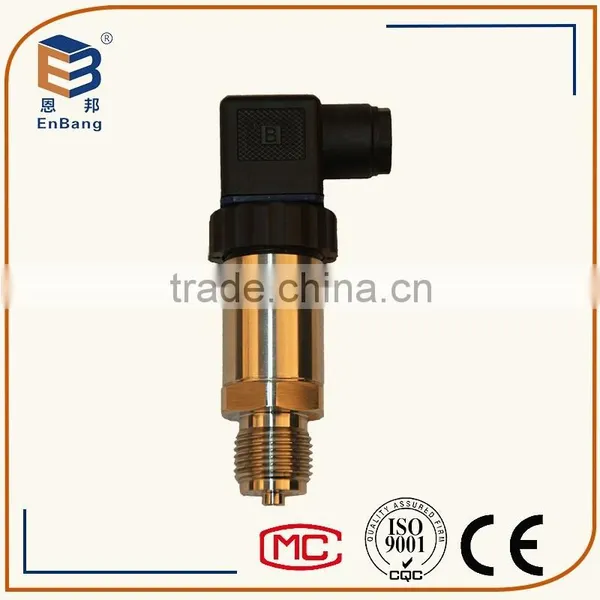

EB 2088F series pressure transmitter adopts the international advanced level of diffused silicon sensor core, with high precision electronic components, and the process of laser modulation and temperature compensation, linear compensation, signal amplification, V/I conversion, pressure overload and other process, and the process of long-term aging and stability, etc.. Completed functional testing of over-voltage, over current, reverse, lightning electromagnetic interference,and etc. Applicable to all industries such as petroleum, chemical, metallurgy, power station, ship, pharmaceutical, food and so on. It is a very high cost-performance of products. Can according to customer’s requirement with the scene LED/ LCD meter display and output of industry standard 4 ~ 20mA signal, 0% ~ 100% linear pointer table. According to customer requirements to provide intelligent HART communication output.
Characteristic :
Product performance is stable and reliable, strong overload and impact resistance, compact and firm structure, convenient installation, strong practicability, simple operation
High performance sensitive components: low temperature drift, good stability, high accuracy of measurement
Strong anti-interference ability: waterproof, dustproof, shockproof, anti-corrosion
Wide applicability: this Series products have many types and many kinds of connection mode, small volume, light weight, suitable for all kinds of measurement occasions
Technical Specification:
Measurement range: -100kPa ~ 2.0MPa, 0 ~ 60MPa
Output signal: Analog 4 - 20mA, 1 ~ 5V; Intelligent 4 - 20mA HART protocol communication
Working voltage: 24V DC, 12 ~ 36V DC, 18.5 ~ 220V DC, AC 50HZ, 45V
Precision: 0.1%F.S; 0.2%F.S; 0.5%F.S
Threaded Joint: M20*1.5; G1/2; flange connection (special specification can be customized according to customerdemand)
Temperature range: -20 ~ 70ºC
Explosion proof grade: normal; ExiaIICT6; ExdIIBT4;
Electrical connection: direct lead, explosion-proof connection, terminal connection(special specification according to customer demand for customized)
Suffix Codes and Description
|
EB2088F Series Pressure Transmitter |
Code |
Measurement Type |
AP |
Absolute Pressure |
GP |
Gauge Pressure |
Code |
Measurement Span: ( Refer to the 2088 series standard range table ) |
Code |
Accuracy |
1 |
0.1% |
2 |
0.2% |
5 |
0.5% |
Code |
Explosion proof |
P |
Normal |
D |
EdⅡBT4 |
i |
ExiaIICT6 |
Code |
Display: |
/ |
None |
M1 |
(0~100)% Linear pointer table |
M3 |
3 1/2 LCD Digital Display |
M4 |
3 1/2 LED Digital Display |
M5 |
LCD Intelligent Display |
Code |
Process connection |
2 |
Male thread M20 x 1.5 5 |
3 |
Male thread ½ NPT |
T |
Special Specification |
Code |
Electrical Connection |
1 |
Direct lead (no special instructions, provided by the 1 meter) |
2 |
Hirschmann Joint |
3 |
Aviation Plug |
4 |
Terminal Block |
T |
Special Specification |
Code |
Output Signal |
E |
(4~20)mA (1~5V) Analog Signal |
S |
(4~20)mA Intelligent, with HART protocol |
T |
Special Specification |
Code |
Power supply |
2 |
24V DC |
5 |
220V AC,50Hz |
1. Delivery in time,delivery time is 7 days for sample and 15 working days for bulk order;
2. We could send the goods , labeled your brand name, to your customer directly, and also can provide neutral product (without brand and our company information)
3. Through strict quality control system and strong production capacity to provide customers with quality products
4. Your inquiry and problems will be replied in 24 hours by well-trained and experienced staffs;
5. After-sale tracking service for all of our clients;
6. We offer 12 months warranty for all of our products from the shipping date.
7. OEM is available; small quantities, mixed bulk orders are also welcome;
8. We also provide paid repair services for out of the warranty period or other brand products.
Shanghai enbang Automation Instrument Co., Ltd. (hereinafter referred to as Enbang instrument), has always been committed to in the field of pressure measurement, uphold the spirit of technical innovation and management innovation, with rich sensor R & D and production experience, advanced production and testing equipment and technology, strict testing process sequence, to provide customers with high quality sensors, transmitters and related technical services, superior product quality, perfect service, let us deeply trusted by users.
Enbang instrument advanced experience at home and abroad, to capture a number of technical difficulties in the production of transmitter. Anaerobic type sintering technology, the use of oxide layer problem solve the transmitter pressure sensor filled pipe and glass sintering; pressure sensor and core diaphragm using computer to locate and tensioning technology, the accuracy, static pressure performance and high overload capacity is improved; part of the circuit adopts advanced isolation technique, power supply terminal with isolation transformer and signal terminal with optical coupler isolation. The pressure transmitter has a good anti-jamming capability, to ensure the reliability and stability of the product.
In 10 years, enbang instrument has been with honest and trustworthy, pragmatic, innovative "spirit of enterprise, learning at home and abroad advanced knowledge and technology and business management experience, and constantly improve the management level and the innovation ability of enterprises," excellent products, superior quality, excellent management, excellent service "to meet customer demand, enable us to have a competitive advantage in the sensor industry, provides a guarantee for the sustainable development of enterprises.
