Home > Products > Wine/Vodka/Beer Production Line > Automatic Wine/vodka Filling Packing Machine/plant

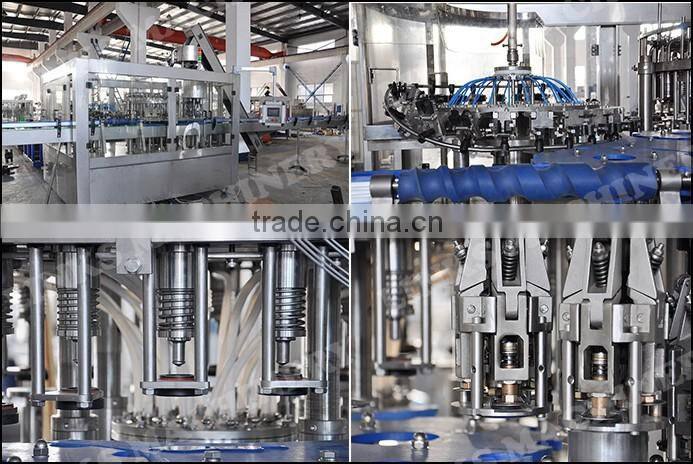

Automatic Wine/vodka Filling Packing Machine/plant
- SHANGHAI PORT
- T/T Credit Card
You May Like
-
Automatic Glass Bottle Wine/vodka Filling Capping Machine/plant
-
Automatic Wine/vodka Filling Capping Machine
-
Glass Bottle Wine/vodka Bottling Machine/plant
-
Automatic Wine/vodka Bottling Machine/plant
-
Automatic Glass Bottle Wine/vodka Bottling Machine/plant
-
Automatic Glass Bottle Wine/vodka Filling Machine
Product Details
| Condition | New | Application | Beverage, Chemical, Medical | |
| Packaging Type | Bottles | Packaging Material | Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380V/220V | Power | 3.2KW | |
| Place of Origin | Jiangsu, China | Brand Name | LINKS | |
| Model Number | XGF24-24-8F | Dimension(L*W*H) | 3200*2050*2200MM | |
| Weight | 4200KGS | Certification | CE, ISO, SGS | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Automatic Wine/ vodka filling machine
XGF24-24-8F three-in-one machine for bottle integrates the function of rinsing, filling and capping together. Based on advanced technology overseas, and designed according to wine/vodka filling processing demands
Model | XGF24-24-8F |
Amount of working position | Rinsing 24, filling 24, capping 8 |
Production capacity | 8000BPH(500ml) |
Pressure of air source | 0.5Mpa |
Air consumption | 0.6m3/min |
Rinsing water pressure | 0.2-0.25Mpa |
Rinsing water capacity | 0.8T/H |
Main motor power | 2.0kW |
Total power | 3.2kw |
Dimension | 3200X2050X2200mm (L×W×H) |
weight | 4200kg |
Models and Speed List
Model | XGF12-12-1 | XGF14/12/5F | XGF18/18/6F | XGF24/24/8F | XGF32/32/1F0 |
Washing hands | 12 | 14 | 18 | 24 | 32 |
Filling valves | 12 | 12 | 18 | 24 | 32 |
Capping hands | 1 | 4 | 6 | 8 | 8 |
Suitable PET/Glass Bottles(150ml to 2000ml) | |||||
Capacity(Speed) Base on 500ml | 1800BPH | 3500BPH | 6000BPH | 8000BPH | 12000BPH |
Electric Components Brands Supplier
Main composition | Description Supplier |
PLC | Mitsubishi (Japan) , Siemens (Germany) |
Touch screen | Weinview(Taiwan) |
Frequency converter | Mitsubishi (Japan) , Siemens (Germany) |
Air switch | Schneider (France) |
Breaker | Siemens (Germany) |
Contactor | Siemens (Germany) |
Photoelectric switch | Omron (Japan) |
Spare Parts On Machines
1. We provide the complete machines' layout, design according to customer's factory.
2. We provide the complete English manual book for customer, all the machines' touch screen operation is English words, we have Russia, Spanish, Portuguese, French..ect to choose.
3. After delivery, we will send our engineer to customers' factory to install the machines and also train workers how to operate and maintenance. Engineer's salary: 80USD/Per day.
4. Our warranty time is 18 months after the machines installation.
5. We provide the 12 months easy broken spare parts as free, and also provide the spare parts book to customer.
6. Payment method: 30% T/T as deposit after signature the contract, 70% T/T or L/C after inspection before delivery.
7 Common delivery time: 45-70days after confirm the bottle and cap design.
