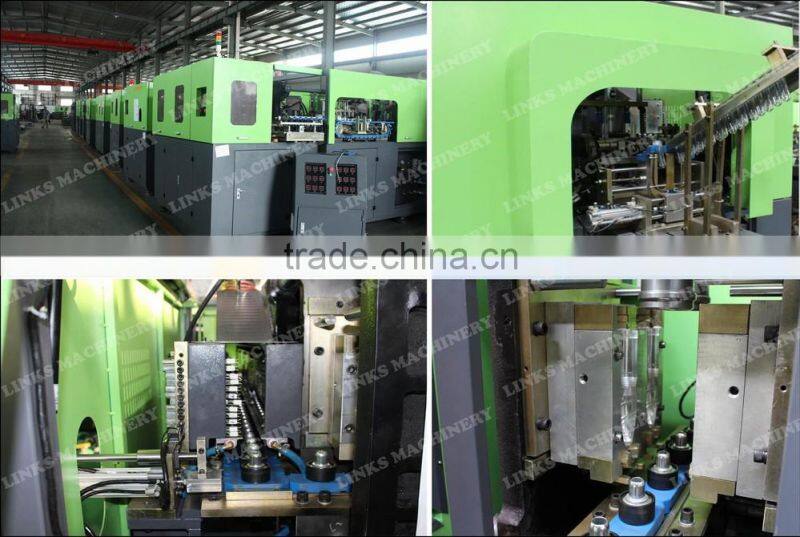

Automatic PET Bottle Blow Molding Machine
Technical Parameter
MODEL | UNIT | LK-2000L | |
CONTAINER | ntainer volume | ML | 2000 |
Max. neck diameter | mm | 38 | |
Max. container diameter | mm | 95 | |
Max. container height | mm | 320 | |
Number of cavities | 2 | ||
Theoretical output | BPH | 2000 | |
ELECTRICITY SYSTEM | Installed power | Kw | 15 |
Max. heating power | Kw | 12 | |
COMPRESSED AIR SYSTEM | Operating pressure | Mpa | 0.7 |
Low pressure Air consuming | M3/min | 2.0 | |
Blowing pressure | Mpa | 3.5 | |
High pressure Air consuming | M3/min | 1.5-2.0 | |
CHILLED WATER | Pressure | Mpa | 0.3-0.5 |
Temperature | ℃ | 10-12 | |
Flow rate | L/min | 30 | |
MACHINE | Size(L*W*H) | m | 2.8X1.4X1.8 |
Weight | Kg | 2500 | |
Electric Brand
Components | Original Production Factory |
PLC Programmable controller | Deltar,Taiwan |
Touch Screen | Winview Colour,Taiwan |
Cylinder | SMC,JAPAN |
Electromagenetic Valve | TPC,Korea |
Photoelectric Switch | Omron,Japan |
Contactor | Omron,Japan |
Transducer | Deltar,Ttaiwan |
Power Supplier | Meanwell,Taiwan |
1. We provide the complete machines' layout, design according to customer's factory.
2. We provide the complete English manual book for customer, all the machines' touch screen operation is English words, we have Russia, Spanish, Portuguese, French..ect to choose.
3. After delivery, we will send our engineer to customers' factory to install the machines and also train workers how to operate and maintenance. Engineer's salary: 80USD/Per day.
4. Our warranty time is 18 months after the machines installation.
5. We provide the 12 months easy broken spare parts as free, and also provide the spare parts book to customer.
6. Payment method: 30% T/T as deposit after signature the contract, 70% T/T or L/C after inspection before delivery.
7 Common delivery time: 45-70days after confirm the bottle and cap design.
