Semi automatic Carbonated Bottle Blow Molding Machine /Blowing Machine

FOB Price

USD $9,500 - $11,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port SHANGHAI PORT
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Application:	Bottle	Plastic Processed:	PET
Blow Moulding Type:	Stretch Blow Moulding	Automatic:	Other, Semi-auto	Place of Origin:	Jiangsu, China
Brand Name:	LINKS	Model Number:	LK-1500	Voltage:	220v/380v
Power(W):	15Kw	Dimension(LWH):	16006301610mm	Weight:	1000Kgs
Certification:	CE, ISO, SGS	Warranty:	18months	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

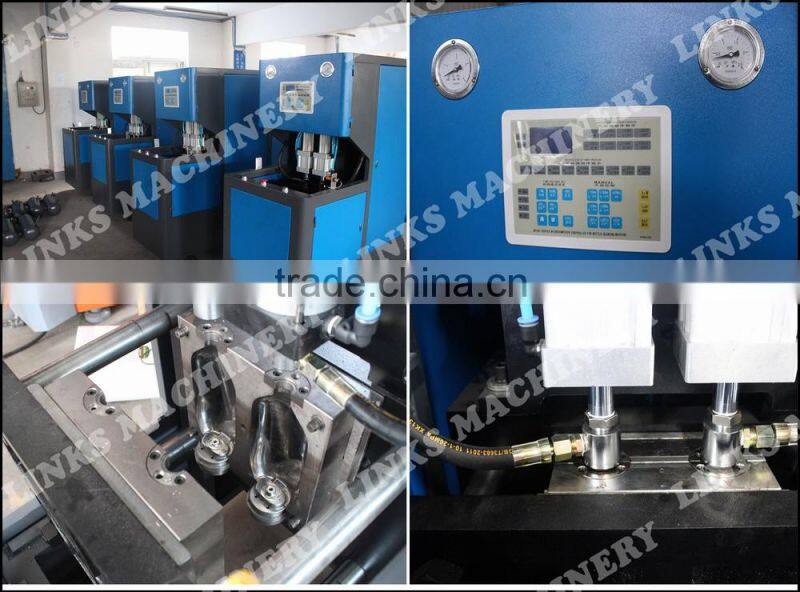

Semi-auto 2-cavity PET Bottle Blow Molding Machine

This model semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 50-2000ml. It is widely used to produce the carbonated bottle, mineral water pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

1/ Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.

2/ The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.

3/ The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.

4/ The machine can be operated in the step-by-step mode and the semi-auto mode.

5/ The machine is small with low investment , easy and safe to operate

Technical Parameter

Name	Item	Unit	Details
Blowing machine	Dimension	mm	16006001610mm
	Weight	kg	500
	Bottle volume (max)	ml	2000
	Bottle volume (min)	ml	50
	Bottle Neck Diameter (max)	mm	40
	Bottle Neck Diameter (min)	mm	18
	Body Diameter (max)	mm	125
	Body Height( max)	mm	420
	Number of Cavities	mold	2
	Production output	pcs/h	1600-1800BPH
	Clamping force	T	5.7(56KN)
	Mold thickness	mm	200(max)
	Mold width	mm	360x390
	Space between Tie-bars	mm	120-220
	Diameter of Tie-bars	mm	63
	Scope of Tie-bars	mm	405
	Mold stroke	mm	160
	Stretching stroke (max)	mm	420
	Working pressure	Mpa	0.8-1.0Mpa
	Blowing pressure	Mpa	2.0-3.0Mpa
	Voltage/Power	V/KW	220V/1KW
	Weight	Kg	500
Pre-heater	Dimension	mm	18706301450mm
	Weight	kg	260
	Voltage/Power	V/KW	380V/14KW

Packaging & Shipping

Our Services

1. We provide the complete machines' layout, design according to customer's factory.

2. We provide the complete English manual book for customer, all the machines' touch screen operation is English words, we have Russia, Spanish, Portuguese, French..ect to choose.

3. After delivery, we will send our engineer to customers' factory to install the machines and also train workers how to operate and maintenance. Engineer's salary: 80USD/Per day.

4. Our warranty time is 18 months after the machines installation.

5. We provide the 12 months easy broken spare parts as free, and also provide the spare parts book to customer.

6. Payment method: 30% T/T as deposit after signature the contract, 70% T/T or L/C after inspection before delivery.

7 Common delivery time: 45-70days after confirm the bottle and cap design.

Contact Us

Zhangjiagang Links Machine Co., Ltd.: Contact nameEric Wang; Phone0086-512-63113225; AddressEconomic Zone,Zhangjiagang city Suzhou,Jiangsu
