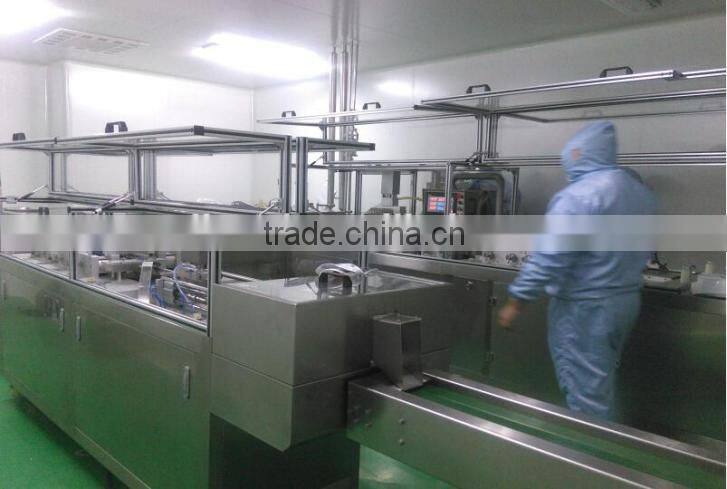

HY-U-15 Pharmaceutical Suppository production line/suppository machine/suppository filling system
Working principle:
Rolls of Packing film (PVC PVC / PE, dual aluminum composite film) will be send to filling process after shell making, and the liquid medicine will be filling into empty suppository shell automatically through the high precision metering pumps. Then it will be a suppository line and cuts into sections automatically according to the length of the suppository line. And conveyed to cooling devices to make it cool and be solidification. After that it will be filling, truing, printing date of production and molding.
Features:
It is widely used and can fill substrate and Chinese medicine production with high viscosity; PLC controller and Man-Machine Interface operator, fully automatic; Accurate temperature controller; Smoothly running; ; High capacity, it feeds liquid medicine in a constant temperature cycles and fully automatic to control liquid level, so the liquid will be never solidification. It also can stir the liquid medicine according to the different materials and adjust the speed after cooling. And reject the Non-conforming product; It takes Small occupation area and is easy to adjust.
Technical Data:
Output: 17000-22000 suppsitories /h
Capacity of product tank:
50lt. Heated double-jacketed electric immersion element
Chagred volume: 0.5-5ml
Air pressure: 0.6Mpa
Air consumption: 2.0m3/min
Cooling time: 10 minutes
It can make a variety of shapes such as warhead style,
Torpedo style and duckbilled style etc.
Accurate Filling and it fits for all different
Materials. (fatty glyceride/glycogelatin/ Polyethyleneglycols)
It fits for PVC, PVC/PE and composite membrane etc Molding of packaging material
Filling precision: ± 1% automatic PLC controlling system and aerodynamic
It can be U or linear type according to the place.
Our Advantages :
1, Our suppository equipment bring in the Italy Sharon technology.
2, The equipment same type of Italy Sharon costs about $ 1.2 million.
3, After decades of technological improvements and market feedback, equipment performance become more mature and more stable
4, We present the highest market share in China
5, Most accessories use international imported brands
6, There are a number of independent research and development of technology to extend the life of wearing parts
7, Pass through a number of domestic and foreign certification authority
8, Among similar exported products, ours accounting for 90%.
9.We are factory near Shanghai Pudong international airport, very convenient to visit our factory.
