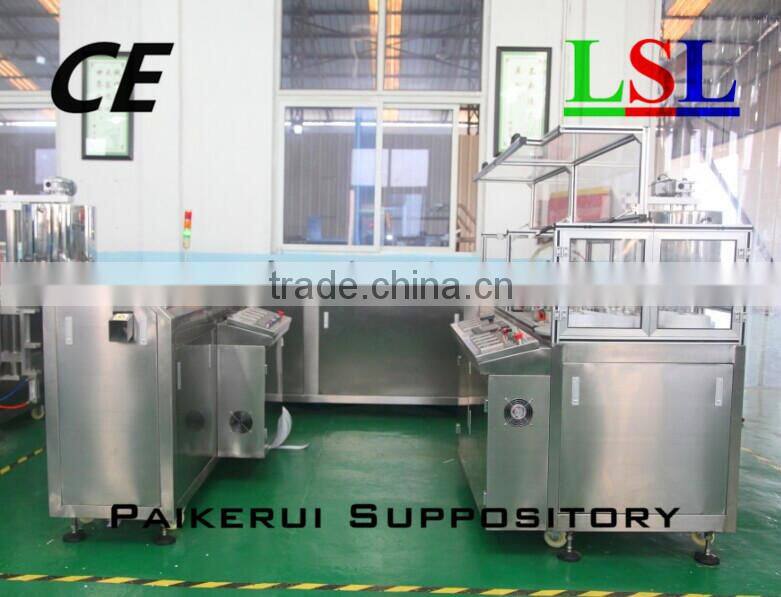

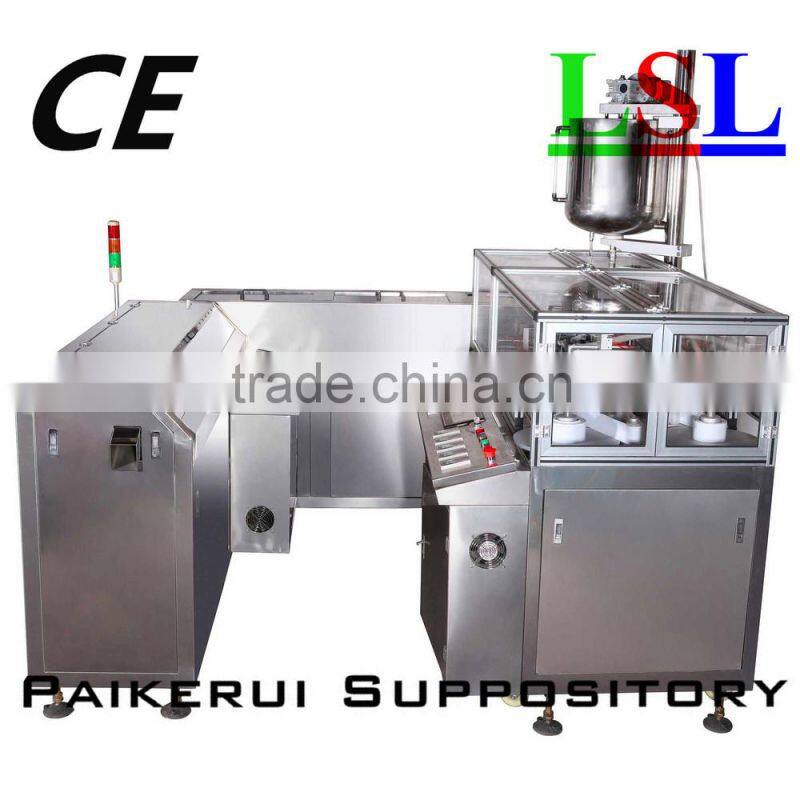

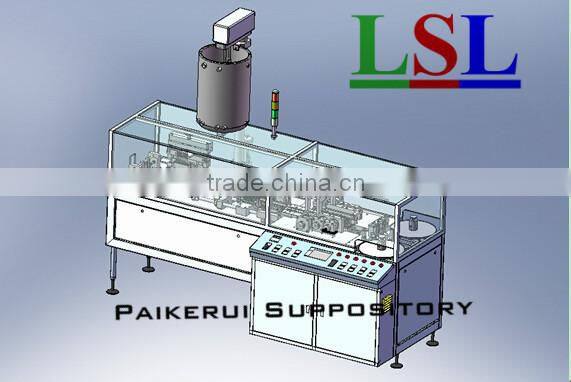

Suppository Cavities Making and Filling Equipment

 It is widely used to fill high viscosity substrate, accurate temperature cotroller, smoothly running, high capacity. there is a constant temperature cycles feeds liquid medicine and fully automatic controlling device, which can make the liquid is never solidification, the cooling speed can be adjusted after filling, and the non-conforming product will be rejected once found. It takes smaller occupation area and is easy to operate

• Operating principle

1.Finalize the design:

Use PVC/PE through clamp structure and pass into molding district to preheat mould ——>making shape mould ——>air filling mould——>membrane making shape. Triangle knife side cut,dotted line cutting.

2.Filling part:

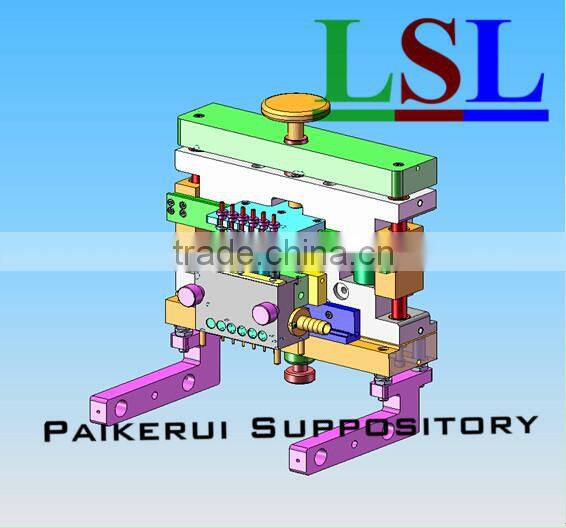

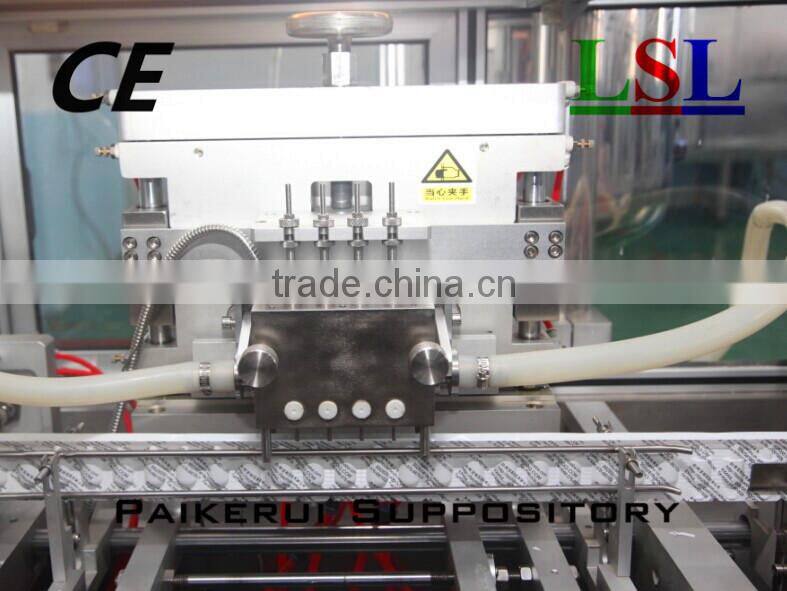

There are 3-6 filling terminal,with embedded type filling for shaped suppository for one time, filling accuracy can get ±1%,there is electrical heating system to keep heat for raw material barrel, and there is mixing motor for raw material, the raw material of charging basket entrance into filling terminal through circulator, and the rest raw material circulate to the barrel for next filling.

3.Cooling part

Whole row is finished filling and passed into cooling shelf, cooling box is set cooling water unit, and cooling air is transformed by four condensers which is into the cooler bin to cool suppository.

4.Seal and print code part:

Cooled solid suppository is sent to the seal district: preheat mould——>seal mould——>code print mould. And finished product is cut for 5 grains or 6 grains for a group.(according to customer’s requirement)

 90 DAYS SHIPMENT & Fumigating Free Wooden Box

 24 Hs Responding & Globle Trained Engineer Services

Shanghai Packing Machinery Co.,Ltd. owns independent RD department and adopts advanced technology and material from top level of suppliers .We mainly supply automatic counting and packing line machinery, which including bottle umcrabler, capping device, cap screwing, labeler, magnetism sealing and ect,.

Our products accuracy and speed is considerably reliable, we bold breakthrough in the structure and processing technology, making standardization and intensive concept of production cost control into pharmaceutical equipment filed effectively. It is able to decrease cost during production. We always comply with the requirements from clients and never stop innovating in excellent integrated services.
