High Quality Automatic PVC/PE suppository shell making machine
It is widely used and can fill substrate and Chinese medicine production with high viscosity; PLC controller and Man-Machine Interface operator, fully automatic; Accurate temperature controller; Smoothly running; ; High capacity, it feeds liquid medicine in a constant temperature cycles and fully automatic to control liquid level, so the liquid will be never solidification. It also can stir the liquid medicine according to the different materials and adjust the speed after cooling. And reject the Non-conforming product; It takes Small occupation area and is easy to adjust.
Main technical date:
| Output | 8000-12000grains | Single grain measurement | 0.5-5ML |
| Volume storing fluid vessel | 50L | Dose tolerance | ± 1% |
| Atmospheric pressure | 0.6Mpa | Air consumption | 1.5m3/min |
| Supply voltage | Three-phase AC 380v | Total power | 7.5kw |
| Water consumption | 800kg/h(recycle) | Total weight | 1500kg |
| Dimension | 6660 *2000 *2230 (L*w*H) | ||
| Applicable matrix | Synthetic fatty acid glycerides / plastic glycerogelatin / polyethylene glycol, etc. | ||
| Suppository shape | Bullet / torpedo / duckbill-type and other special shapes | ||
Our clients:
YiCheng BeiYao Pharmaceutical Co., Ltd
Jordan SAFA Pharmaceutical Industries
KunMing YuanRui Pharmaceutical Co., Ltd
ChongQing TianWei Industry Co., Ltd
KunMing YunJian Pharmaceutical Co., Ltd
JingZhou JiuTian Pharmaceutical Co., Ltd LiaoNing University of Chinese medicine Subsidiary No. 3 Hospital
Pictures:

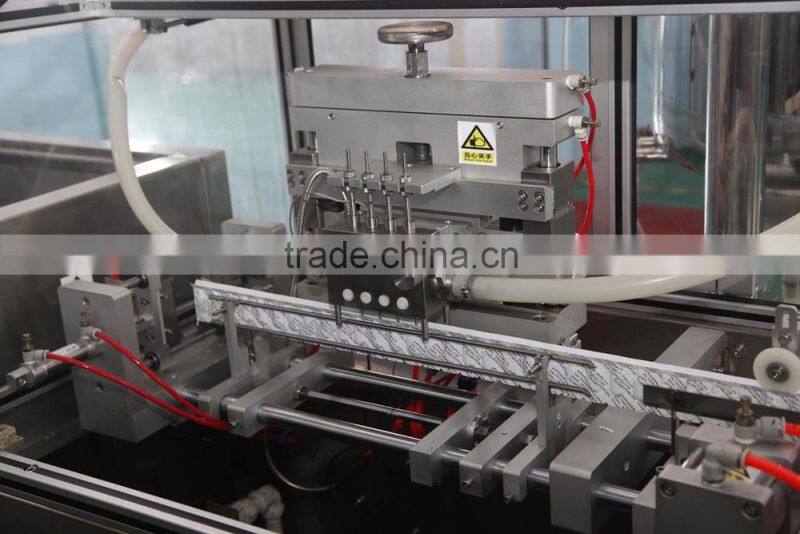

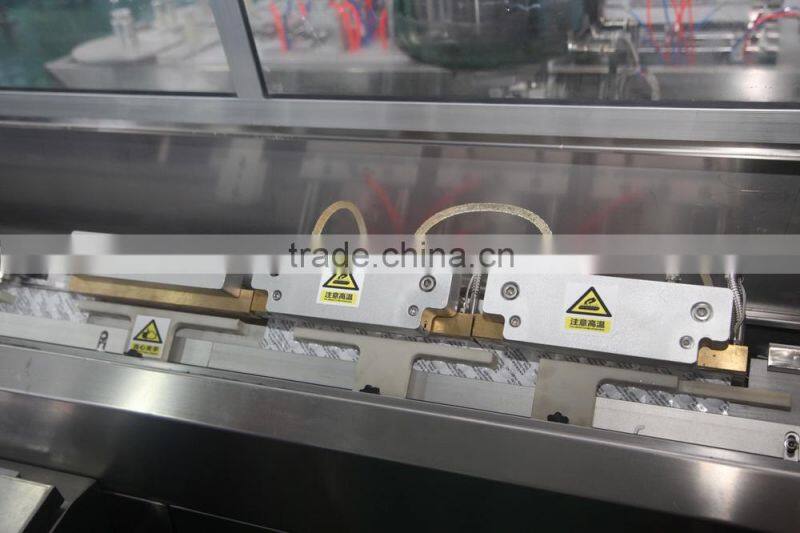

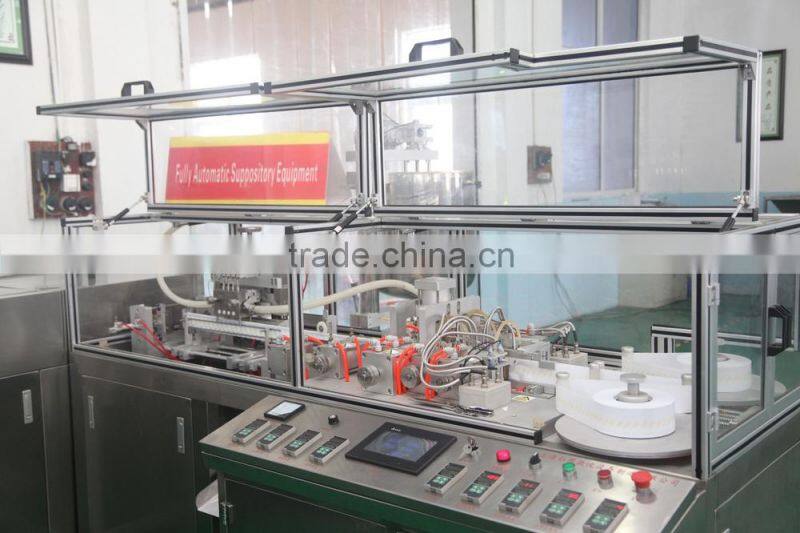

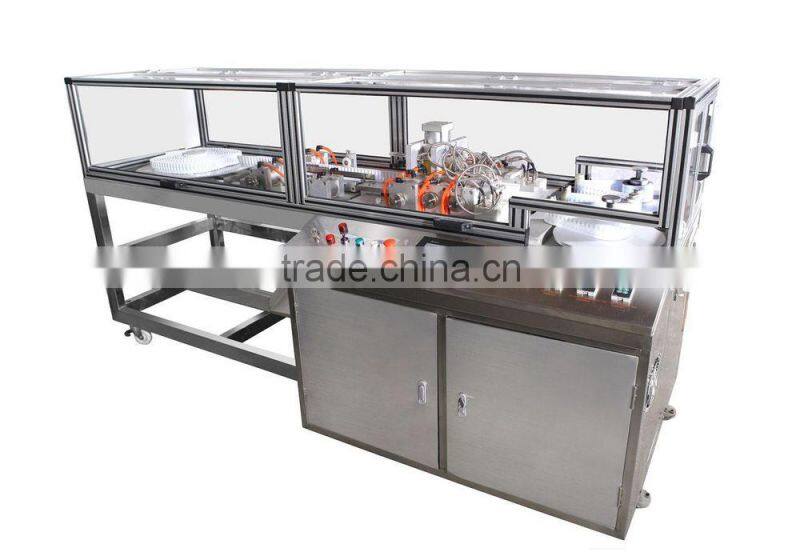

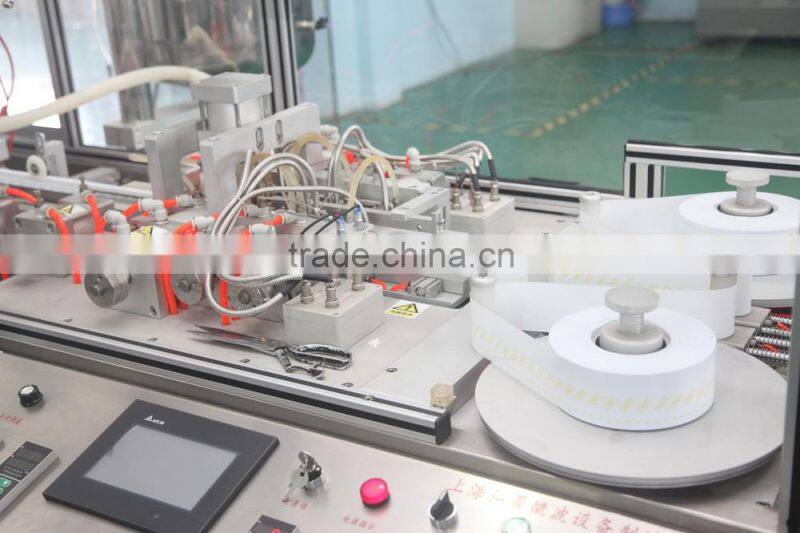

1.Suppository shell making machine

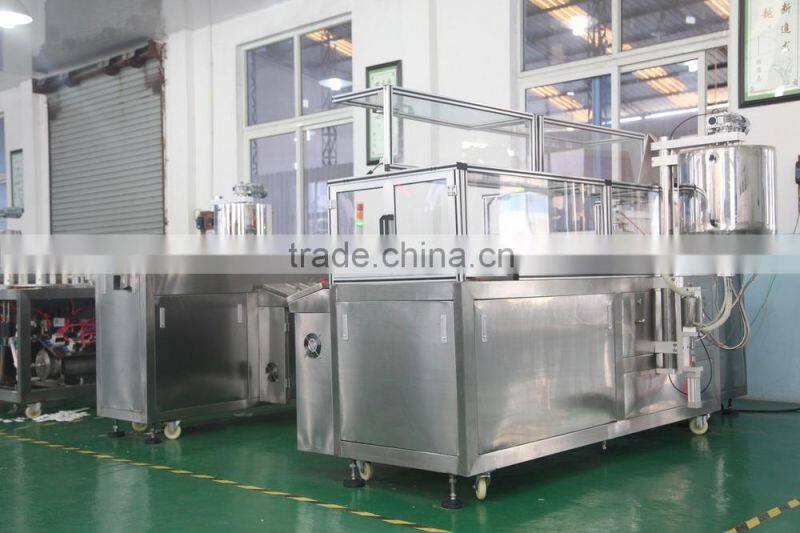

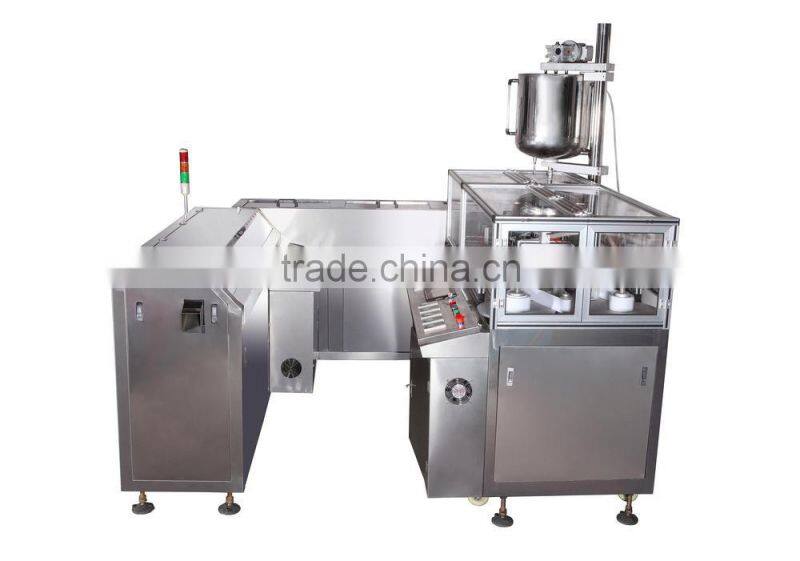

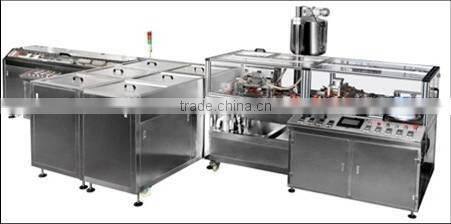

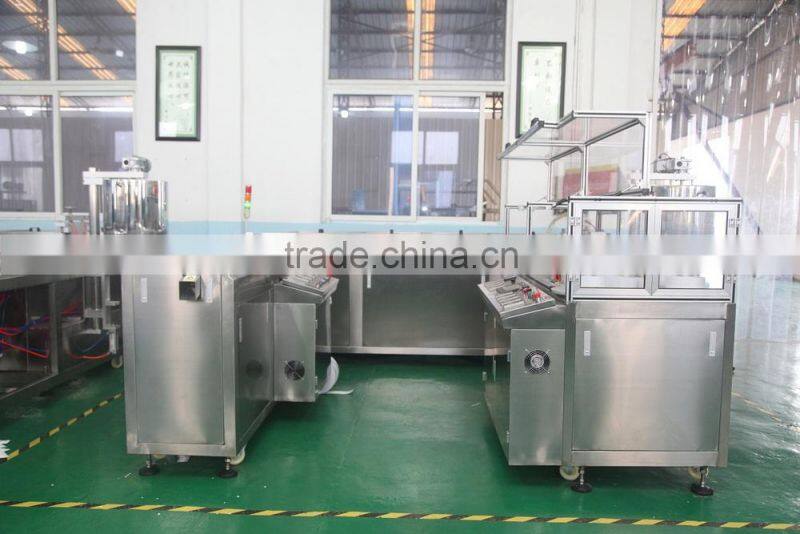

2. U-type suppository production line
3. Linear suppository production line
