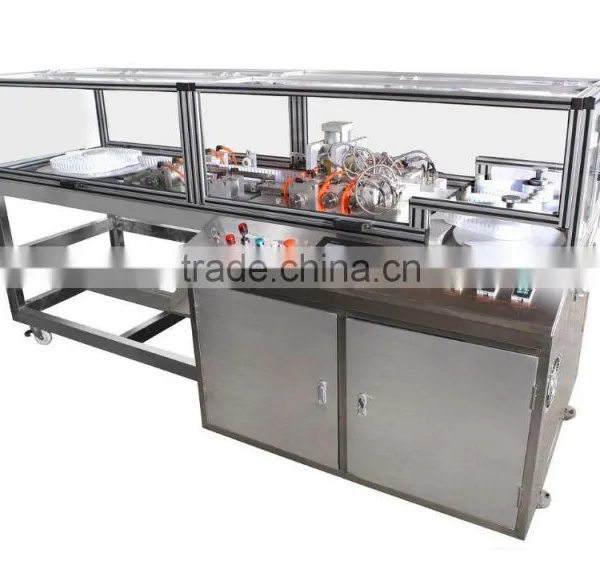

HY-ZK Suppository Cavities Shell Making Machine
US$ 35000.00 - 35000.00
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
Hongyuan
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Suppository Production LineUS$ 70000.00 - 70000.00MOQ: 1 Set -
Suppository Thermoforming MachineUS$ 35000.00 - 35000.00MOQ: 1 Set
-
HY-B Semi Automatic Suppository Production LineUS$ 40000.00 - 40000.00MOQ: 1 Set
-
HY-B Semi Automatic Suppository Filling and Sealing MachineUS$ 40000.00 - 40000.00MOQ: 1 Set
-
HY-B Semi Automatic Suppository Package MachineUS$ 45000.00 - 45000.00MOQ: 1 Set
Condition
New
Place of Origin
Shanghai, China
Brand Name
Hongyuan
Model Number
HY-ZK
Usage
Other, suppository
Voltage
380V
Power(W)
3KW
Weight
500kg
Dimension(L*W*H)
2750*1250*1380mm
Certification
CE,ISO
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
HY-ZK suppository cavities shell making machine
It is widely used and can fill substrate and Chinese medicine production with high viscosity; PLC controller and Man-Machine Interface operator, fully automatic; Accurate temperature controller; Smoothly running; ; High capacity, it feeds liquid medicine in a constant temperature cycles and fully automatic to control liquid level, so the liquid will be never solidification. It also can stir the liquid medicine according to the different materials and adjust the speed after cooling. And reject the Non-conforming product; It takes Small occupation area and is easy to adjust.
Main technical date:
| Output | 6500-8000grains | Single grain measurement | 0.5-5ML |
| Volume storing fluid vessel | 50L | Dose tolerance | ± 1% |
| Atmospheric pressure | 0.6Mpa | Air consumption | 1.5m3/min |
| Supply voltage | Three-phase AC 380v | Total power | 7.5kw |
| Water consumption | 800kg/h(recycle) | Total weight | 500kg |
| Dimension | 2750 *1250*1380 (L*W*H) | ||
| Applicable matrix | Synthetic fatty acid glycerides / plastic glycerogelatin / polyethylene glycol, etc. | ||
| Suppository shape | Bullet / torpedo / duckbill-type and other special shapes | ||
Our Client:
YiCheng BeiYao Pharmaceutical Co., Ltd
Jordan SAFA Pharmaceutical Industries
KunMing YuanRui Pharmaceutical Co., Ltd
ChongQing TianWei Industry Co., Ltd
KunMing YunJian Pharmaceutical Co., Ltd
JingZhou JiuTian Pharmaceutical Co., Ltd LiaoNing University of Chinese medicine Subsidiary No. 3 Hospital
