HY-B Semi Automatic Suppository production line
Working principle
Rolls of Packing film (PVC PVC / PE, dual aluminum composite film) will be send to filling process after shell making, and the liquid medicine will be filling into empty suppository shell automatically through the high precision metering pumps. Then it will be a suppository line and cuts into sections automatically according to the length of the suppository line. And conveyed to cooling devices to make it cool and be solidification. After that it will be filling, truing, printing date of production and molding.
Technical Parameters:
| Capacity | 5000-10000pcs/h |
| single dosage |
0.5-5ml |
| Dosage allowed | <±2% |
| Suppository shape | Bullet, torpedo and duck mouth and other kinds of shapes |
| Adapt to the filling materials | Synthetic glyceric and glycerides, glycerin, gelatin and polyethylene glycol and etc. |
| Capacity in the liquid barrel | 50L |
| Working pressure |
0.6Mpa |
| Air consumption/per minute | 1.5m3 |
| Water consumption/ per hour | 50kg (Recycling) |
| Working voltage | 380V,3 phase |
| Total power | 5KW |
| Overall dimension | 5155mm×1640mm×1879mm |
| Packing materials | PVC,PVCPE |
| Total weight | 700kg |
Advantage of our machine:
1.PLC detection function: Through PLC on-line detection function, it can do the self-checking alarm especially for the operation fault.And it can also display the fault reason synchronously, it is easy for the operator to do timely fault removing.
2.The suppository cutting quantity adjustable system.
Remarks: The quantity can be setup as 4/5/6/7 pieces per time for the final product.
3. Stable operation and low failure rate.

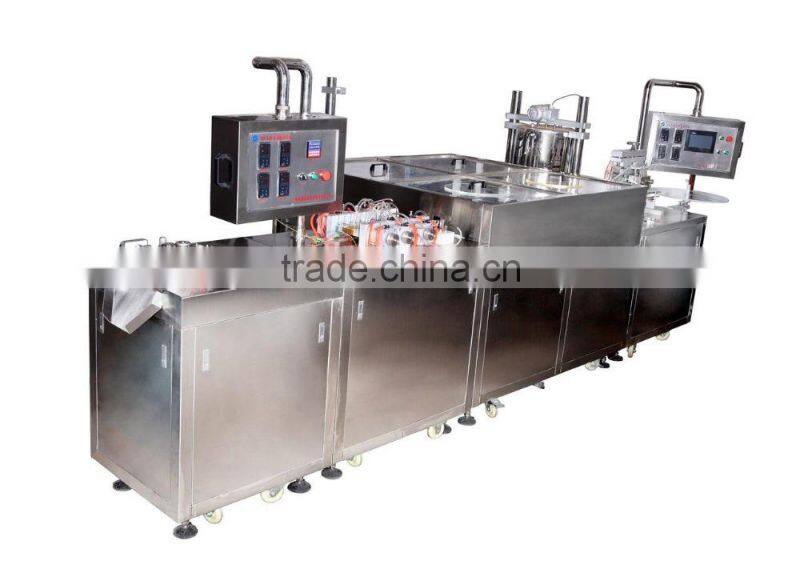

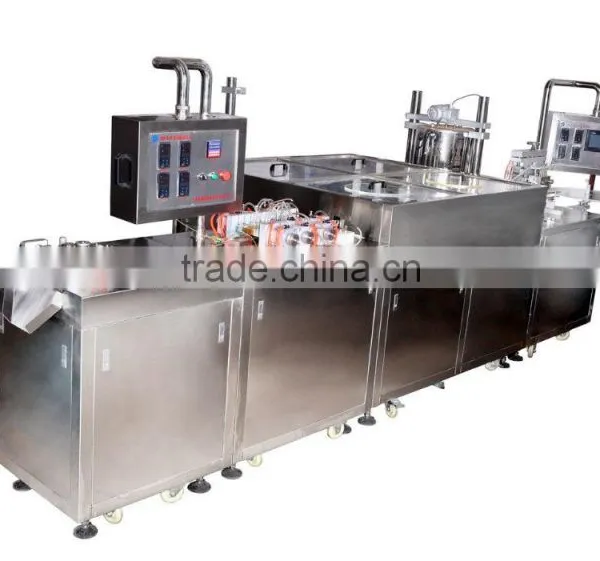

Machine pictures:
