JY-T100 Deep Filtration Diesel Decontamination Equipment for Mechanical Processing With Long Service Life

Name: JY-T100 Deep Filtration Diesel Decontamination Equipment for Mechanical Processing With Long Service Life
Brand: Jing Yuan
SKU: 103705081

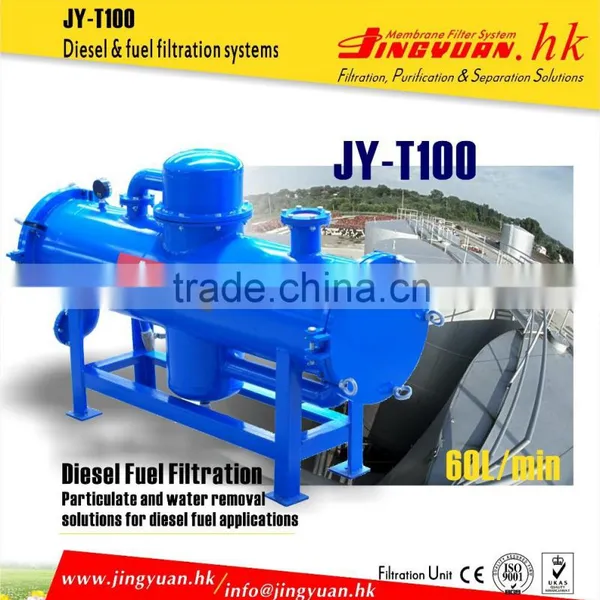

JY-T100 Deep Filtration Diesel Decontamination Equipment for Mechanical Processing With Long Service Life thumbnail-1

JY-T100 Deep Filtration Diesel Decontamination Equipment for Mechanical Processing With Long Service Life photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Liaoning, China

Brand Name:

Jing Yuan

Model Number:

JY-T100

Contact Supplier Request Quote Chat Now

Shenyang Jingyuan Membrane Systems Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

DALIAN PORT

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Liaoning, China

Brand Name Jing Yuan

Model Number JY-T100

After-sales Service Provided Engineers available to service machinery overseas

Excellent performance:

•New polymer membrane filtration technology

•Selectivity characteristics of polymer membrane is core technology.

•Oil-water separating is easy.

•High precision and deep filtration

•Guarantee the cleanness index of diesel oil

•Improve the efficiency of the engine

•Prolong engine service life

•The cost of filtration is low

Technical Parameters	1	Model Number	JY-T100
	2	Working Pressure	0.2~0.35Mpa
	3	Flow Rate	60L/min
	4	Filtration Precision	2,10,25μm
	5	Filtration Material	HDPE,PA
	6	Applicative Oil	Light Diesel Oil
	7	Chemical Resistance	Widely Chemical Compatibility
	8	Operating Temperature	-10~70°C
	9	End Flanges	DN50~DN80
	10	Dimension	1370×410×830mm
	11	Weight	125KG
	12	Service Life of Filter Element	2~3 Year
	13	Warranty for Main Engine	1 Year
Functional Characteristics	1	High flow diesel purification filter
	2	Minimum mechanical flow resistance
	3	Polymer membrane filter
	4	Three-level filtration
	5	High interception rate
	6	Oil-water separation
	7	Quick opening lid, safely and quickly, easy to maintain
	8	Made of high quality thick steel plate, anti-corrosion treatment
	9	Stainless steel tanks can be customized
	10	Tank passes pressure test
	11	Filter can be back flushed and maintained
	12	Convenient operation of the drain valve
	13	Convenient repair and maintenance
	14	Low operating cost
	15	Design life is more than 20 years (except for filter element)
Principle	Selectivity characteristic is to say, the oil molecules will pass and water molecules or impurities will be intercepted, so that the oil and water can be separated.
Application	Mining, construction, generating units, engineering machinery, oil refinery, small oil depot, dock, fishery industry, gas station, fishing boats, oil production and other industries in Asia, South America, Africa and Middle East.
Why do we filter diesel?	90% of the failure problem of diesel engine is due to dirt and moisture in the diesel. After multiple storage and transportation, the purity of the product will decline. So filtering out the pollutants and water is necessary to restore the purity of the product. Clean diesel makes fuel consumption reduces 5-10%, oil-saving effect is obvious, the service life of diesel engines extend 2 ~3 times.
