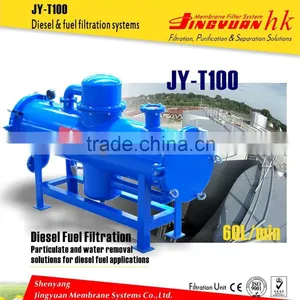

High performance diesel cleansing machine for construction with deep filtration
Excellent Performance:
Polymer membrane filtration technology
Can be used as by-pass filter and capacity 30 tons daily
Oil-water separation efficiency is more than 95%
Precision can be controlled from 2~25 micron
Selectivity-pass characteristic of 3D pore structure filter
High interception rate and low filtration cost
Small operating space and convenient drain valve
Customized service provided according to filtration requirements
Filter elements can be used repeatedly after back-washed
Design service life is more than 20 years (except for filter elements)
Technical Parameters:
1.Model Type: JY-T100
2.Flow Rate: 60 L/min
3.Filtration System: (1)Polymer Membrane Filter Elements (Can be used repeatedly after washing)
J22-330L------------------------------------------------------------10μm
J22-330H------------------------------------------------------------5μm
(2)Filter Element Quantity: 90 Pieces
(3)Function: Remove impurity particles, colloid and water
(4)Working Pressure:
(5)Filtration Level: 3
(6)Service life: 2~3 Years or longer
4.Filtration Precision: (1)Range: 2,5,10,15,25 μm (2)Standard: 5~10 μm
5.Mouth: Standard: DN65 or According to Requirements
6.Security: With Pressure Safety Valve
7.Temperature: Working Temperature: -10~70 ºC
8. Dimension: 1370*410*830mm
9.Weight: 125KG
10.Anti-hazard Classification: Grade 2
Advantage:
1. Low MOQ: It can meet your promotional business very well.
2. OEM Accepted: We can produce any your design.
3. Good Service: We treat clients as friend.
4. Good Quality: We have strict quality control system .Good reputation in the market.
5. Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Company information:
1>Durable Plywood Case packaging suitable for long distance ocean/train transportation.
2>Appointed shipping company could be used in shipment.
3>Whole process monitoring insures the safety of goods unitl arrival.
Certification
A newest report from the client:
Our services---Term of Warranty:
We have our own factories and our own international sales team, we could satisfy you with our high quality products ,fast delivery and most important ,competitive price. We adhere to the philosophy of "Quality is the life,the credibility of the first,customer first".
1. One year with spare parts and service.
2. Engineers available to service machinery for overseas.
