Home > Industrial Equipment & Components > Filtration Equipment & Parts > Machine Oil Purifier > Highly Cost-effective and Long Life Diesel Oil and Water Separate Filtes for Fishery Industrial With Two-level Filtration

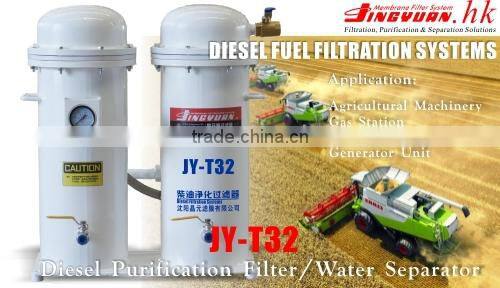

Highly Cost-effective and Long Life Diesel Oil and Water Separate Filtes for Fishery Industrial With Two-level Filtration
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Flow:
40L/min
Working Pressure:
0.2-0.35Mpa
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Advanced Membrane Technology Diesel Oil Refinery Machine With SGS/ISO CertificationNegotiableMOQ: 1 Set -
High-performance Diesel Filter Machine for Military Industry in IragNegotiableMOQ: 1 Set
-
High Interception Rate Aviation Kerosene Expert Filter With Deep FiltrationNegotiableMOQ: 1 Set
-
High-performance Diesel Filter for Mining Industry With Polymer Membrane TechnologyNegotiableMOQ: 1 Set
-
SGS and CE Certified Exclusive Technology Oil Recycling Machine /oil Purification MachineNegotiableMOQ: 1 Set
Condition
New
Flow
40L/min
Working Pressure
0.2-0.35Mpa
Place of Origin
Liaoning, China
Brand Name
JINGYUAN
Model Number
JY-T32
Usage
Other, Diesel oil
Voltage
380V
Dimension(L*W*H)
660*350*650mm
Weight
49kg
Certification
ISO9001:2008
After-sales Service Provided
Engineers available to service machinery overseas
Excellent performance:
•New polymer membrane filtration technology
•Selectivity characteristics of polymer membrane is core technology.
•Oil-water separating is easy.
•High precision and deep filtration
•two grade filters
•Improve the efficiency of the engine
•Prolong engine service life
•The cost of filtration is low
| Technical Parameters | 1 | Model Number | JY-T32 |
| 2 | Working Pressure | 0.2~0.35Mpa | |
| 3 | Flow Rate | 40L/min | |
| 4 | Filtration Precision | 2,5,10,15,25μm | |
| 5 | Filtration Material | HDPE,PA | |
| 6 | Applicative Oil | Light Diesel Oil | |
| 7 | Chemical Resistance | Widely Chemical Compatibility | |
| 8 | Operating Temperature | -10~70°C | |
| 9 | End Flanges | DN20 | |
| 10 | Dimension | 660×350×650mm | |
| 11 | Weight | 49KG | |
| 12 | Service Life of Filter Element | 2~3 Year | |
| 13 | Warranty for Main Engine | 1 Year | |
| Functional Characteristics | 1 | High flow diesel purification filter | |
| 2 | Minimum mechanical flow resistance | ||
| 3 | Polymer membrane filter | ||
| 4 | Two-level filtration | ||
| 5 | High interception rate | ||
| 6 | Oil-water separation | ||
| 7 | Quick opening lid, safely and quickly, easy to maintain | ||
| 8 | Made of high quality thick steel plate, anti-corrosion treatment | ||
| 9 | Stainless steel tanks can be customized | ||
| 10 | Tank passes pressure test | ||
| 11 | Filter can be back flushed and maintained | ||
| 12 | Convenient operation of the drain valve | ||
| 13 | Convenient repair and maintenance | ||
| 14 | Low operating cost | ||
| 15 | Design life is more than 20 years (except for filter element) | ||
| Principle | Selectivity characteristic is to say, the oil molecules will pass and water molecules or impurities will be intercepted, so that the oil and water can be separated. | ||
| Application | Mining, construction, generating units, engineering machinery, oil refinery, small oil depot, dock, fishery industry, gas station, fishing boats, oil production and other industries in Asia, South America, Africa and Middle East. | ||
| Why do we filter diesel? | 90% of the failure problem of diesel engine is due to dirt and moisture in the diesel. After multiple storage and transportation, the purity of the product will decline. So filtering out the pollutants and water is necessary to restore the purity of the product. Clean diesel makes fuel consumption reduces 5-10%, oil-saving effect is obvious, the service life of diesel engines extend 2 ~3 times. | ||
Application
Other products photo
