Product Introduction:
Excellent Performance:
Polymer membrane filtration technology
Continuous working pattern with 380V anti-explosion electric motor
Capacity 500 tons daily and can be used as by-pass filter
Crude diesel terminal refinery with small scale
Oil-water separation efficiency is more than 95%
Free water after filtration is less than 100 ppm
High precision can be controlled within 2~25 micron
Selectivity-pass characteristic of 3D pore structure filter elements
High interception rate and low filtration cost
Small operating space and convenient drain valve
Customized service provided according to filtration requirements
Quick open head cover, easy to maintain
Made of high quality thick steel plate, anti-corrosion treatment
Filter elements can be used repeatedly after back-washed
Design service life is more than 20 years (except for filter elements)
Technical Parameters:

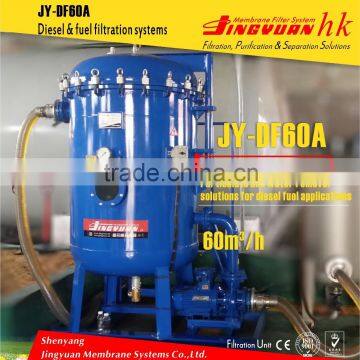

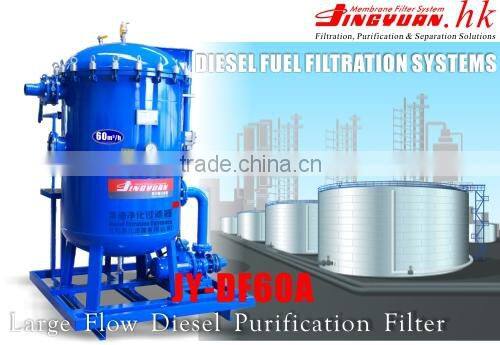

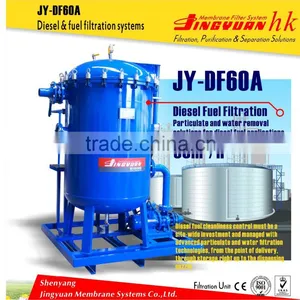

1.Model Type: JY-DF60A
2.Flow Rate: 60 m³/h

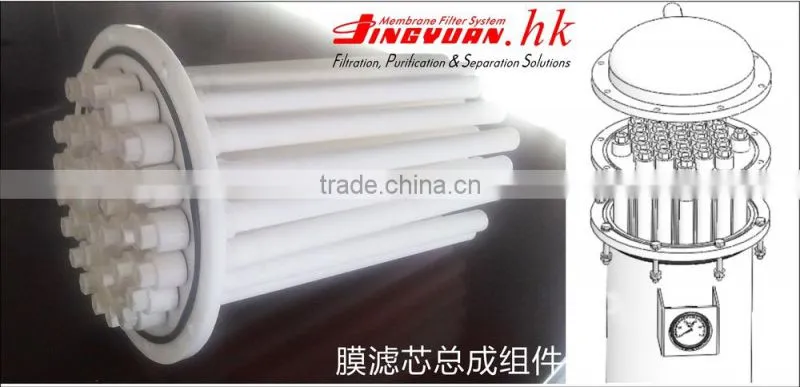

3.Filtration System: (1)Polymer Membrane Filter Elements (Can be used repeatedly after washing)
(2)Filter Element Quantity: 371 Pieces
(3)Function: Remove impurity particles, colloid and water
(4)Working Pressure: 0.2~0.35 Mpa
(5)Filtration Level: 1
(6)Service life: 2~3 Years or longer
4.Filtration Precision: (1)Range: 2,5,10,15,25 μm (2)Standard: 5~10 μm
5.Mouth: Standard: DN80 or End Flange Or DN80-DN125 According to Requirements
6.Security: With Pressure Safety Valve and Air Release Valve
7.Temperature: Working Temperature: -10~70 ºC
8. Dimension: 1230*1650*2200mm
9.Weight: 893KG
10.Power System: (1)Electric Motor: 380V Explosion-proof Motor (Grade 2) (2)Pump: Diesel Centrifugal Pump (Explosion Proof)

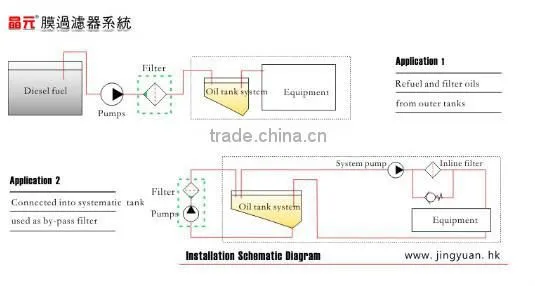

Installation Schematic Diagram:
Company information:
Advantage:
1. Low MOQ: It can meet your promotional business very well.
2. OEM Accepted: We can produce any your design.
3. Good Service: We treat clients as friend.
4. Good Quality: We have strict quality control system .Good reputation in the market.
5. Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Packaging & Transportation
1>Durable Plywood Case packaging suitable for long distance ocean/train transportation.
2>Appointed shipping company could be used in shipment.
3>Whole process monitoring insures the safety of goods unitl arrival.
FAQ
1.Q: Where is your factory located?
A:Our factory is located in Tieling City, Liaoning Province, China.
2.Q: You are a factory, trading company or a third party?
A: We are a factory, and we start our factory & production from 2012.
3.Q: What is your minimum quantity, can you send me sample?
A: Our minimum ordered quantity is 1 set. I am very sorry that we can't offer you a sample. because our goods are machine.
4.Q:What are your generally modes of transportation ?
A:In general by air and sea.
Our services---Term of Warranty:
We have our own factories and our own international sales team, we could satisfy you with our high quality products ,fast delivery and most important ,competitive price. We adhere to the philosophy of "Quality is the life,the credibility of the first,customer first".
1. One year with spare parts and service.
2. Engineers available to service machinery for overseas.
