U shape elelctric high temperature MoSi2 heating element high quality heates
- QingDao ShangHai
- T/T Credit Card PayPal
You May Like
Product Details
Place of Origin | Hunan, China | Brand Name | JK | |
Model Number | BN-S47 |
Product Description

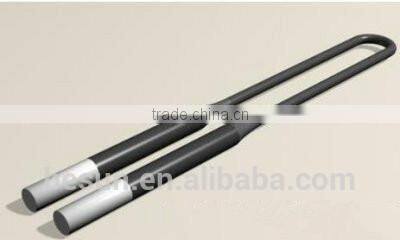

U shape elelctric high temperature MoSi2 heating element high quality heates
1.Now our company supply two types MoSi2 heating elements, one is M1700 type,
which ensure max. furnace temperature 1650C; another is M1800 type, which ens
ure max. furnace temperature 1700C. When you place order, please choose suita
ble type according to your furnace working temperature.
M1700 (heat furnace temperature 1650C )
M1800 (heat furnace temperature 1700C)
2.When you place an order of the U Shape Mosi2 Heating Element, please give following information:
Material Grade: M1700/M1800
C: Hot Zone Diameter
D: Cold Zone Diameter
Lu:Cold Zone Length
Le: Hot Zone Length
A:Shank Spacing
If you have the special requirement for the resistance, please tell us!
3.Order Sample of the U Shape Mosi2 Heating Element
U Shape: Material Grade: M1800,
c=3mm,d=6mm,Le=140mm,
LU=125mm,A=25mm
Specify As:3/6×140×125×25
4.Notice to furnace operation
To avoid high current surges which may cause damage to MoSi2 heating elements, the recommend starting procedure
as following:
Small Furnace (Power 100KW) | Big Furnace (Power 100KW-500KW) | ||
Furnace Temperature .C | Voltage | Furnace Temperature .C | Voltage |
20-150 | 1/3
| 20-300 | 1/3 |
150-500 | 2/3 | 300-700 | 2/3 |
500-Working Temperature | Full | 700-working Temperature | Full |
Note: Shifting gear must be done quickly, otherwise high current surges may cause damage. |

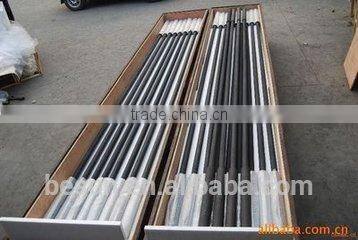

(1)Packing: We have the standard packing to ensure the security of product ,wooden box outside ,polyfoam filling inside .
(2)Shipping:We provide fast delivery ,in general ,we arrange shipping within 20days after payment ,and we adopt multiple ransportation methods,by sea,air,express are ok
Warranty:Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Replacement will be shipped to you after photo or other evidence are provided and investigated.
More informationes, any questiones, please don't hesitate to contact Beatrice who will provide our best products and services for you!!
(1)Besun Cooperation Limited Company ,located in the center of Henan Province -Zhengzhou.
(2)We have been working in Export&Import for 8years ,our partners are across South America,Asia , African,Europen etc.
(3)We provide top quaity high temperature product and production ,and we offer you reasonable and competitive price.
(4)We stick to the principle of Customers are God ,so we provide nice service .
1.Why choose us ?
We are professional manufacturer of electric resistance heat treatment furnace located in Zhengzhou city of Henan province , Which has over 8 years experience produce furnace . Not only have rice experience to produce high quality machine , but also with strong technical team as basis.
2.Have you exported machine to overseas market ?
Yes . We have exported machine to Thailand, Malaysia , Pakistan , India, the United States , Indonesia, Laos, Africa , South Africa , Iran , etc.
3. Is there any quality warranty and after service ?
The warranty period of mechanical portion of the equipment shall be a year after you received the equipment; And help buyer installation and commissioning the equipment , and free training operator.
4.If there are broken of your machine and spare parts , what should I do ?
In case of any failure occurred in the warranty period, damaged parts to be replaced shall be offered free of charge . we provide lifelong tracing service, supply equipment parts and relevant maintenance at favorable prices, and give user technical guidance free of charge.
