Specifications

ISO 9001 certificated double spiral silicon carbide sic ceramic heating element

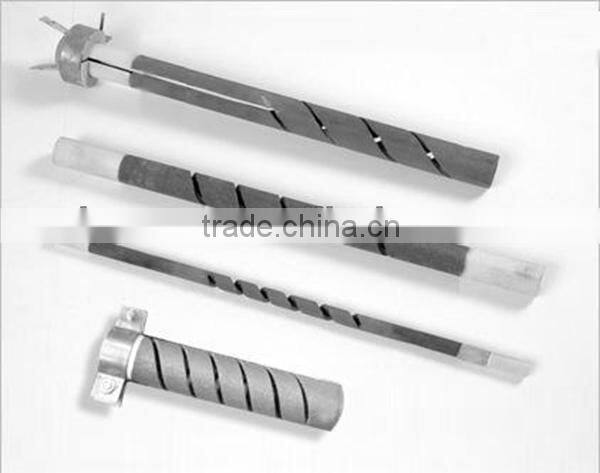

Production introduce of  double spiral sic heating element

Double Spiral SiC Heating Elementsare made from very dense silicon carbide, featuring a return spiral groove allowing connection at one end. The resistance and allowable surface loadings of the Double Spiral Shape Type are substantially higher than other silicon carbide elements, consequently operating voltages are higher and current draw lower. This feature can lead to significant savings in both control equipment and wiring. Double Spiral Shape elements are energy conserving, convenient and easy to install due to the same-end terminal structure.

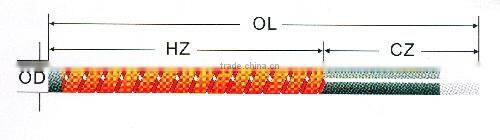

 Double spiral sic heating element have hot and cold zones.Its main material is selected super  quality  green  silicon  carbide. So it can be used in various high temperature electric furnaces and  other  electric  heating devices.

SiC heating element Features:

1. Withstands as high as 1600°C (surface temperature)

2. Generates high heat output per unit surface area, approximately 5-10 times than

the output of Nichrome wire

3. High strength and excellent shock resistance

4. Heat source is free of noise and air pollution

Other sized SiC elements can be made according to your need!

Packaging :  Plastic paper inside, Polyfoam filled, Wooden box outside or   according to  the requirement of the customers

 We provide all kinds of sic heating elements such as rod U-shape W-shape single spiral double spiral Slot

in case of any inquiry or order, please kindly send mail to me ,thank you .
