1700C W Type SiC silicon carbide Heating element for furnace or kiln
- Shanghai Ningbo Qingdao etc
- T/T Credit Card PayPal
You May Like
Product Details
Brand Name | BESUN | Model Number | BS-SC-W08 | |
Place of Origin | Henan, China |
Product Description
Specifications
W Type SiC silicon carbide Heating elements1green silicon carbide material
2.anti-oxidization
3.anti-corrosion

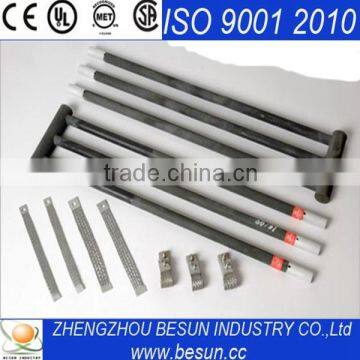

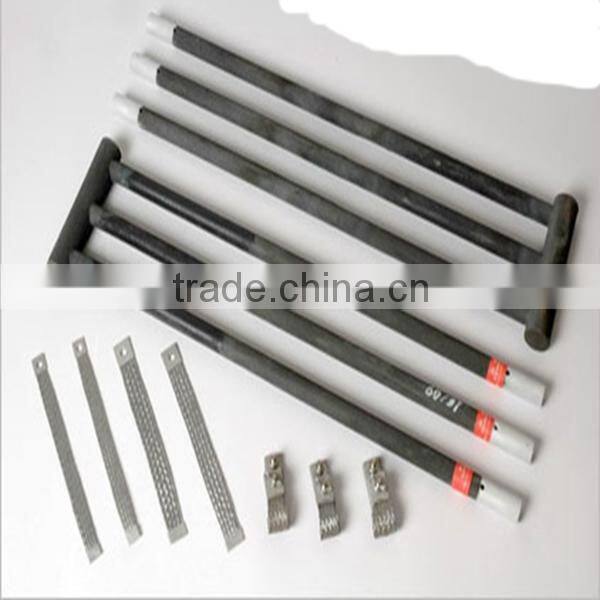

1700C W Type SiC silicon carbide Heating elements for furnace or kiln
Production introduce of silicon carbide heating element
W shape Silicon carbide heating element are a kind of non-metal high temperature electric heating element, made of selected super quality green silicon carbide as main materials.
Silicon carbide heating element Features:
1. Withstands as high as 1600°C (surface temperature)
2. Generates high heat output per unit surface area, approximately 5-10 times than the output of Nichrome
3. High strength and excellent shock resistance
Main application of silicon carbide heating element:
Silicon carbide heating element can be used in the furnace temperature 600C-1700C, directly in the air use as well, and it need not any protective atmosphere.

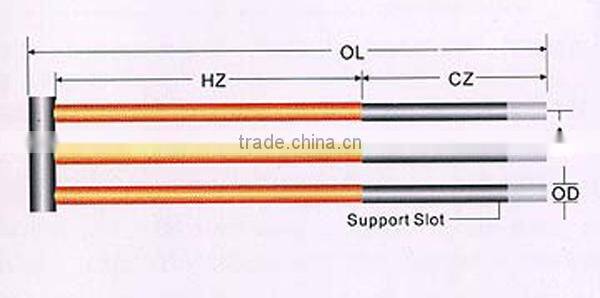

Silicon carbide heating element Parameters:
OD(mm) | HZ(mm) | CZ(mm) | A(mm) | Bridge size | Resistance | |
OD | Length | |||||
14 | 200 | 250 | 40 | 14 | 54 | 2.4-4.6 |
14 | 250 | 300 | 50 | 14 | 64 | 3.0-6.0 |
14 | 300 | 350 | 60 | 14 | 74 | 3.6-7.0 |
16 | 200 | 250 | 40 | 16 | 56 | 1.4-2.8 |
16 | 250 | 300 | 50 | 16 | 66 | 1.8-3.6 |
16 | 300 | 350 | 60 | 16 | 76 | 2.0-5.0 |
18 | 300 | 350 | 60 | 18 | 78 | 2.0-5.0 |
18 | 400 | 400 | 70 | 18 | 88 | 2.8-5.8 |
18 | 500 | 450 | 75 | 18 | 93 | 3.6-7.2 |
20 | 250 | 300 | 50 | 20 | 70 | 1.8-3.6 |
20 | 300 | 350 | 60 | 20 | 80 | 2.0-5.0 |
20 | 400 | 400 | 70 | 20 | 90 | 2.8-5.8 |
25 | 400 | 400 | 70 | 25 | 95 | 1.6-3.4 |
25 | 500 | 450 | 75 | 25 | 100 | 2.2-4.4 |

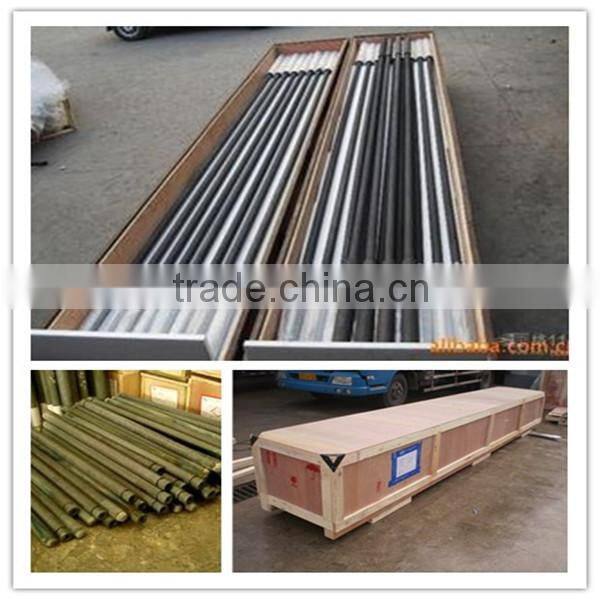

Packaging and shipping
Plastic paper inside, Polyfoam filled, Wooden box outside or according to the requirement of the customers
Our service
üPrompt reply within 24 hours without delay by our specialized after-sale service sector.
üProvide high temperature solutions and professionals construction services for different fields for our customers.
üProvide the most reasonable logistics for customers to save every penny..
Note : If the products that you receive are danaged, we will resend them again to you for free.
