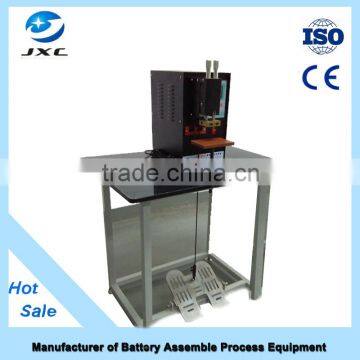

Manual Type Dual Pulse Pedal Switch Mobile/Cylindrical Battery Double Use Spot Welding Machine Battery Operated Welding Machine

manual spot welding machine battery operated welding machine Mobile/Cylindrical Battery Double Use Spot Welding Machine TWSL-2118 Tesla Model S batteries make electricbike home built battery 18650s

Features:

1. Multiple use for both mobile phone battery welding and battery pack welding. Manual operating, easy to use.

2 . Microcomputer digital control, precision welding, energy is adjustable to accommodate a variety of welding requirements;

3. Precision controlled discharge time (photoelectric control system);

4. Static pressure soldering, welding head speed can be adjusted;

5. High reliability and high efficiency.

Scope:

Laptop Battery (18650 et cylindrical lithium) combination welding; lithium-ion battery anode batteries, nickel-aluminum composite tape, protective welding plate or the like; nickel-metal hydride nickel-cadmium batteries in combination welding. It applies to a thickness of 0.25mm or less battery pole piece welded, and the need to adjust the pressure and welding speed precision applications.

Model : TWSL-2118

Power : 10KVA (max)

Input Frequency : 50 / 60Hz

Input voltage : 220VAC

Input gas source : 7-8 Bar (kg / cm)

Primary current : 5-30A

Primary short-circuit current : 1800A

The whole structure : Integrated structure

Welding arm structure: Telescopic swing control

Electrodes to the body distance : 100 mm

Cylinder diameter : 20 mm

The number of pulses : 0-8

Pulse energy level : 0-999

Automatic compensation range : + 40V - 40V

Digital display panel : 7-segment LED display

External dimensions : 550 * 240 * 390 mm

Gross weight : 40 kg

It is a welding machine for lithium battery , use for all type of lithium battery  welding .

2 , how is it performance ?

It is  more effectioncy , works faster  ,it can help you increase production run ,

and decrease production cost .

3 , what about the quality guarantee and after-sale service ?

we prrovide one year quality guarantee , full time after-sale service .

4 , we want to open battery factory  or an automating system for lithium battery , how it can do that ?

Yes , we can provide you the battery system and solution .
