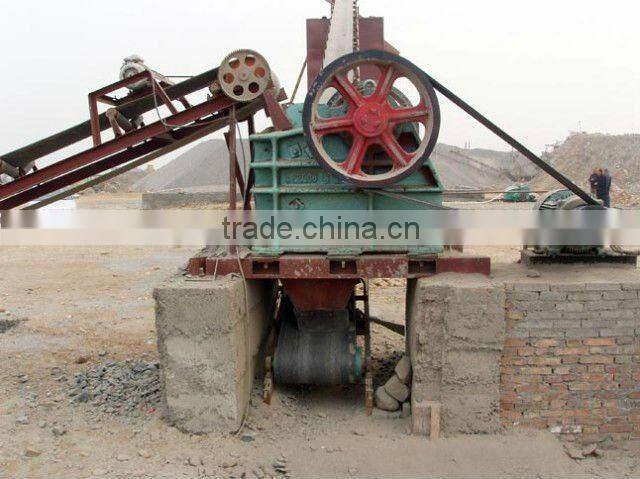

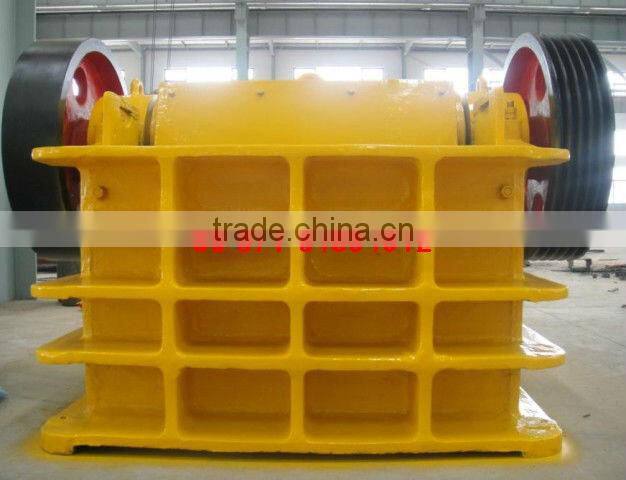

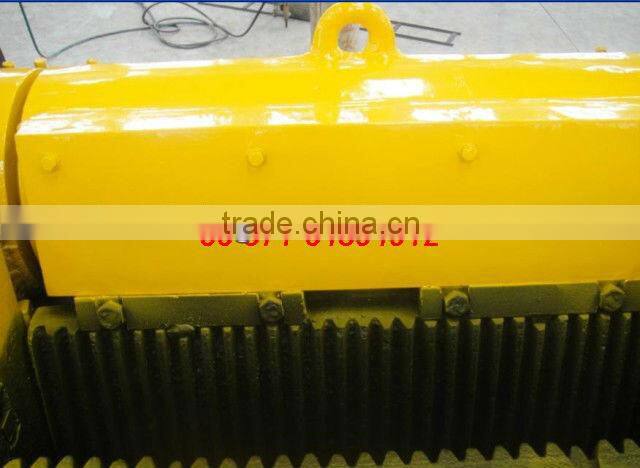

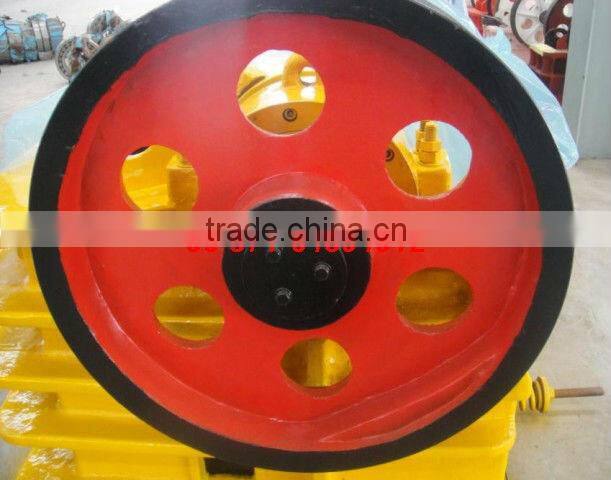

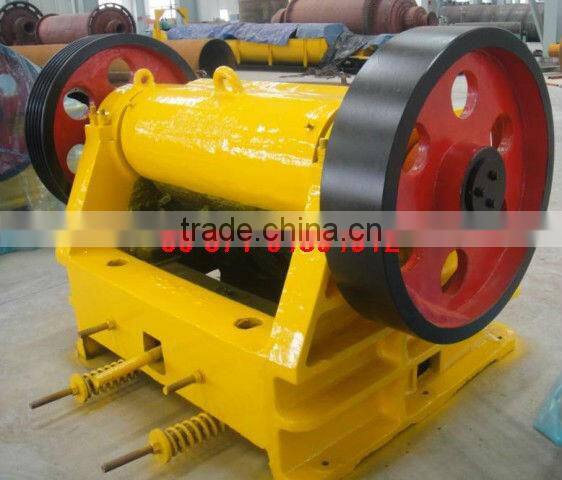

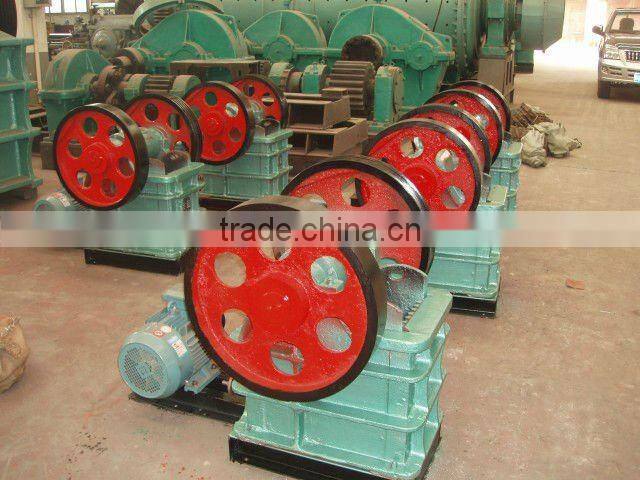

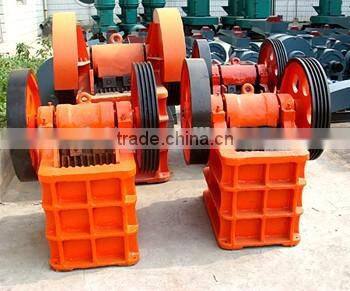

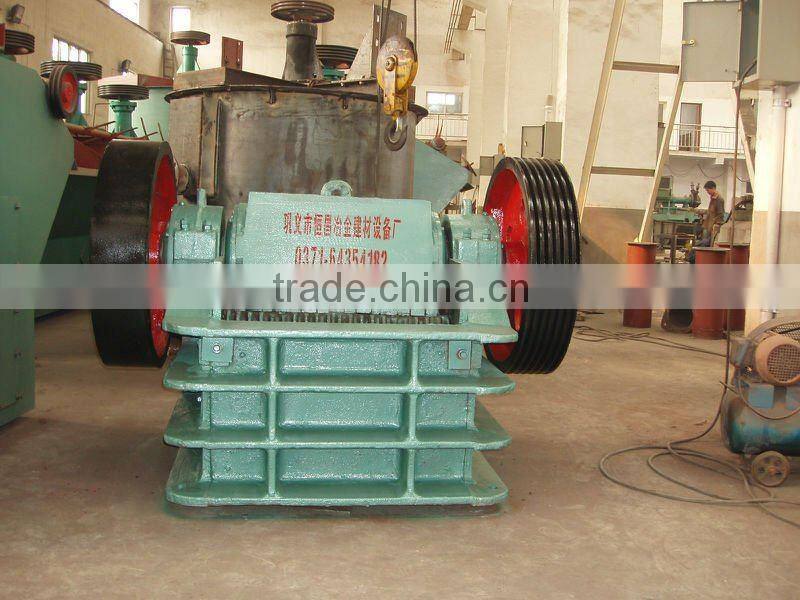

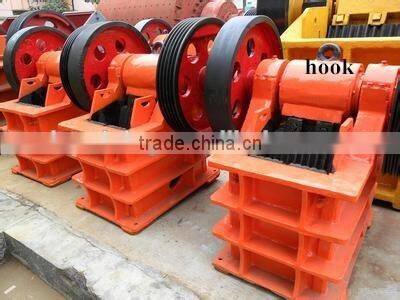

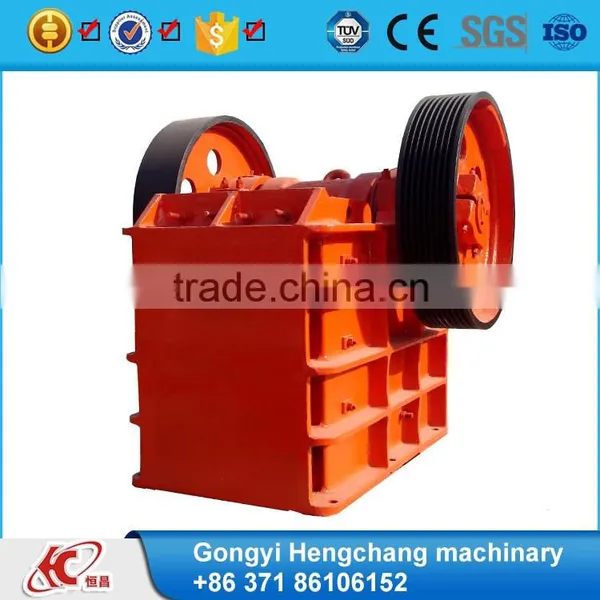

PE150*250 Jaw crusher
Intoducton of jaw crusher:
The PE and PEX series jaw crusher is widely used in mining, smelting, metallurgy, chemical industry, building, highway,water conservancy, light industry to crush the medium-grained ores and bulk materials which compression not more than 320Mpa. The broken small uniformed particles can be the corollary equipment of sand/stone making plant and ore beneficiation plant. Also it can produce road cornerstone stones and construction stone aggregate.

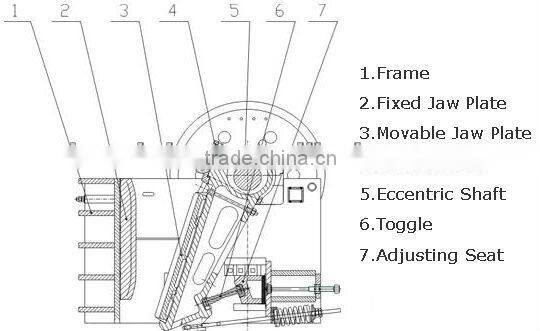

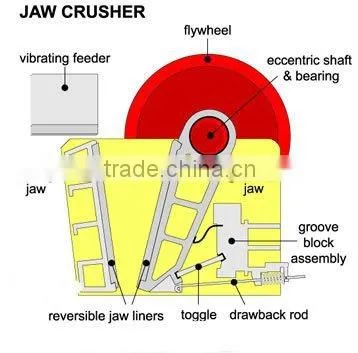

Structure of jaw crusher:

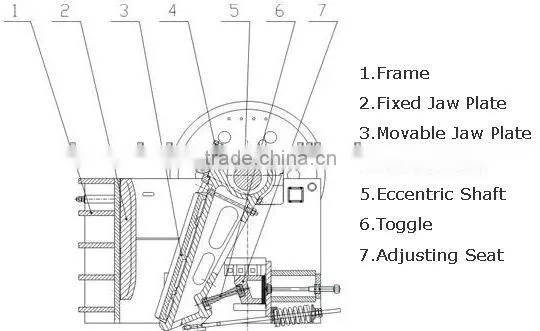

The PE serial jaw crusher mainly consists of main frame, movable( swing ) jaw, eccentric shaft, toggle plates etc.
Futures of jaw crusher:
1) Firm structure, stable performance
2) Convenient maintenance and economical running expense
3) large reduction ratio, even producing granularity.

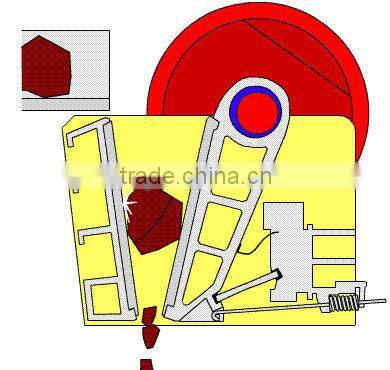

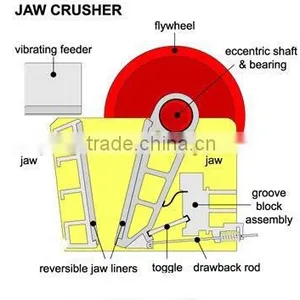

Working principle of jaw crusher:
The PE serial jaw crusher mainly consists of main frame, movable( swing ) jaw, eccentric shaft, toggle plates etc. The electric motor passes power via V-belt pulley to the eccentric shaft to make the movable jaw moves in mesh, therefore, materials in crushing chamber can be crushed.
Technical datas of jaw crusher
|
Model |
Max. Input Size (mm) |
Adjustment Range (mm) |
Capacity (t/h) |
Shaft Speed (r/min) |
Motor Power (kw) |
Overall Dimensions (mm) |
Weight (kg) |
PE150×250 |
125 |
10-40 |
1-3 |
285 |
5.5 |
922×745×933 |
750 |
PE200×300 |
165 |
15-50 |
2-8 |
265 |
7.5 |
1056×1100×1120 |
1100 |
PE250×400 |
210 |
20-60 |
5-20 |
300 |
15 |
1108×1142×1392 |
2900 |
PE400×600 |
340 |
40-90 |
25-64 |
280 |
30 |
1700×1732×1653 |
6900 |
PE500×750 |
425 |
50-100 |
34-68 |
275 |
55 |
2050×1860×2145 |
10500 |
PE600×900 |
480 |
65-160 |
56-192 |
250 |
75 |
2792×2168×2250 |
17500 |
PE750×1060 |
630 |
80-140 |
110-242 |
250 |
90 |
4180×2560×3070 |
27000 |
PE900×1200 |
750 |
100-200 |
158-256 |
250 |
110 |
5200×2900×3500 |
50000 |
PEX150×750 |
125 |
10-40 |
8-35 |
300 |
15 |
1220×1480×1180 |
3300 |
PEX250×1000 |
210 |
15-50 |
15-50 |
300 |
30 |
1580×1992×1380 |
7100 |
PEX250×1200 |
210 |
15-50 |
20-60 |
300 |
45 |
1730×2192×1380 |
8700 |
PEX300×1300 |
250 |
20-90 |
20-90 |
300 |
75 |
1930×2400×1747 |
11600 |
Certificatns and honours:
Just Contact me if any inquiry!
