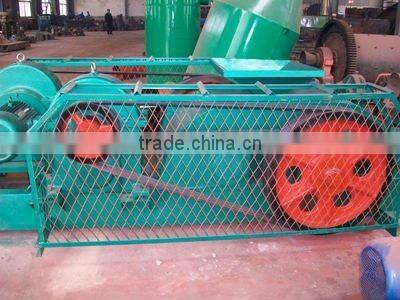

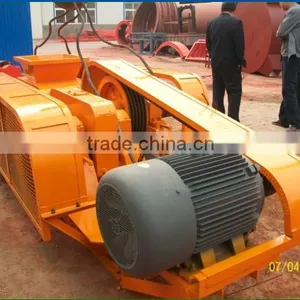

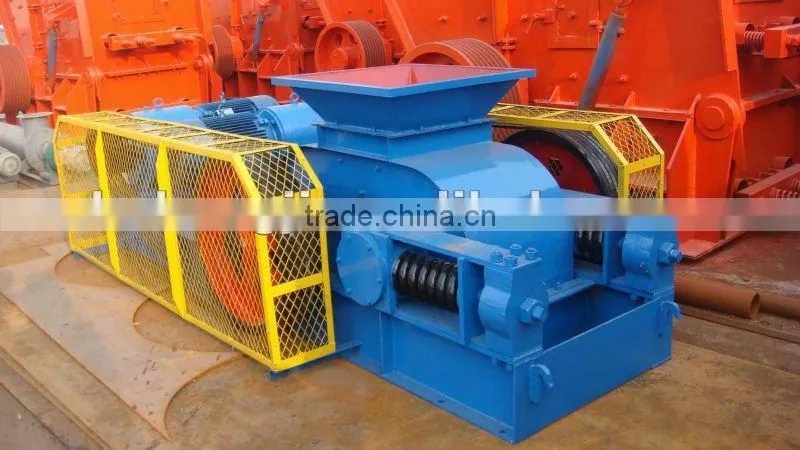

Help CenterRoll Crusher Used in Mining, Smelting, Building Material, Highway, Railway
Related Products
-
Crushing Screening SystemUS$ 8,000 - 30,000MOQ: 1 Set -
Asphalt Crusher 80-100TPHUS$ 7,352 - 18,382MOQ: 1 Set
-
Good Quality and Reasonable Price Mining Machinery of Hongji BrandUS$ 2,000 - 800,000MOQ: 1 Set
-
Stationary Stone Crushing Plant Specialized VendorUS$ 10,000 - 120,000MOQ: 1 Set
-
Stone Crushing Plant Belt ConveyorUS$ 10,000 - 120,000MOQ: 1 Set
Specifications
compact structure, light weight, small size , equipment PDG-II to roll crusher can save significant investment.1. Double Roll Crusher Usage:
It is widely used for secondary and fine crushing in the industry of mining, building materials, chemical industry, metallurgy and so on. It can crush materials in middle hardness such as rocks, ore, coke, lump coal, slag, mineral slag, cement clinker, fireproof materials, and so on.

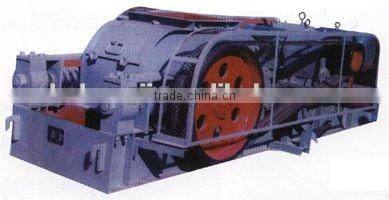

2. Double Roll Crusher Working Principle
The motor drives the fixed roller and movable roller to work via reducer, V-belts or coupling. Materials are put into the space between the two rollers via the feed entrance. As the two rollers inward turning, the input materials are crushed, pressed, ground, and at last come out from the base of the machine.
3. Double Roll Crusher Features
1. Compact structure, low noise and efficient;
2. Easy to install and only need simple foundation;
3. Can adjust the pressure and size easily.
4. Self-protection, the parts can not be damaged when hard materials such as the metals goes into the crushing cavity;
5. Low cost maintenance and easy to maintain.
4.Main technical parameters of the double roller crusher:
Model |
Feeding Size |
Output |
Capacity |
Motor Power |
Weight |
Overall Dimension |
2PG400×250 |
<35 |
≤2-8 |
2-10 |
2×5.5 |
1.3 |
2110×870×810 |
2PG610×400 |
<65 |
≤2-20 |
5-20 |
2×15 |
3.9 |
3510×1420×1030 |
2PG750×500 |
<75 |
≤2-25 |
10-40 |
2×18.5 |
9.5 |
4210×1630×1260 |
2PG800×600 |
<80 |
≤2-25 |
12-45 |
2×22 |
10.8 |
4505×1780×1320 |
2PG1000×700 |
<100 |
≤3-30 |
20-65 |
2×30 |
14.9 |
5310×2175×1595 |
2PG1200×800 |
<120 |
≤3-35 |
35-80 |
2×37 |
25.5 |
6290×2270×1870 |
2PG1500×800 |
<130 |
≤3-45 |
50-120 |
2×75 |
33.7 |
7460×2410×2290 |
2PG1600×1000 |
<150 |
≤3-50 |
60-140 |
2×90 |
41.2 |
8220×2680×2475 |
Henan Hongji Mine Machinery Co., Ltd. is the company which is specialized in manufacturing roll crusher, Jaw crusher, Cone Crusher, big and medium crushing equipment, sand making equipment, stone production line, mineral magnetic separating production line, mineral flotation separating production line, rotary kiln, ball mill and also can accept product line or turnkey project.
If you have any requirement or questions, please don't hesitate to contact Ms Winnie Lee.Your desire, we design.
Contact details:
Henan Hongji Mine Machinery Co., Ltd
Contact person:Vashti
Tel: +86-371-67197178
Fax: +86-371-67197178
Website:
Add: No.668, West Zhongyuan Road, Zhengzhou City,
Henan Province, China.
