PE250*400 Small Jaw Crusher Stone Jaw Crusher Price List

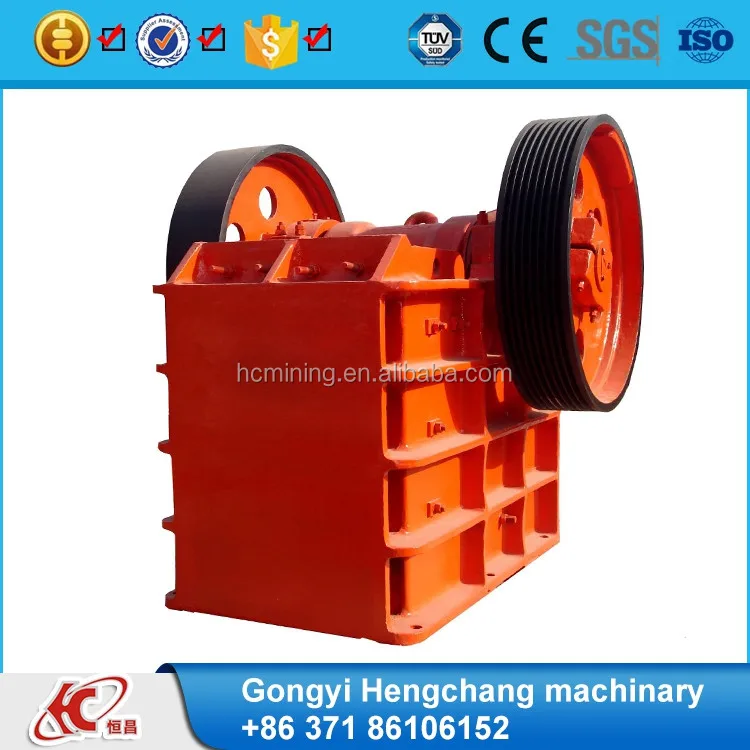

PE250*400 Small Jaw Crusher Stone Jaw Crusher Price List photo-1

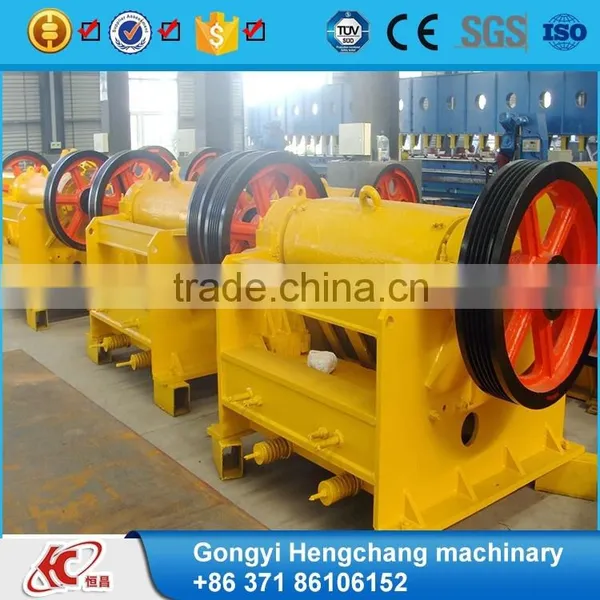

PE250*400 Small Jaw Crusher Stone Jaw Crusher Price List photo-2

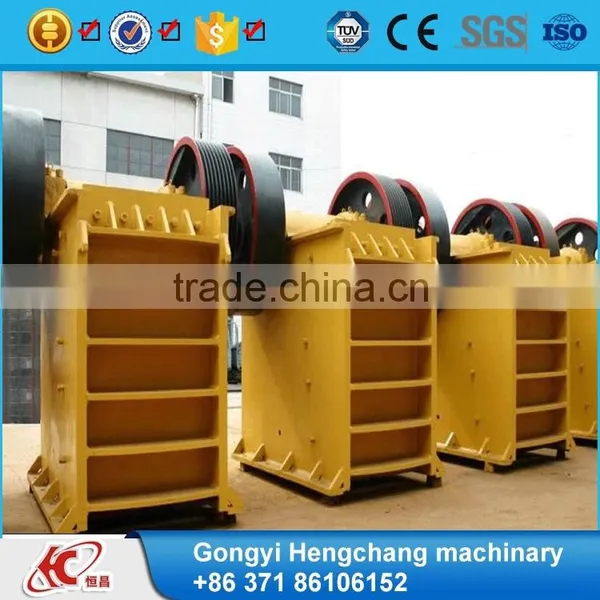

PE250*400 Small Jaw Crusher Stone Jaw Crusher Price List photo-3

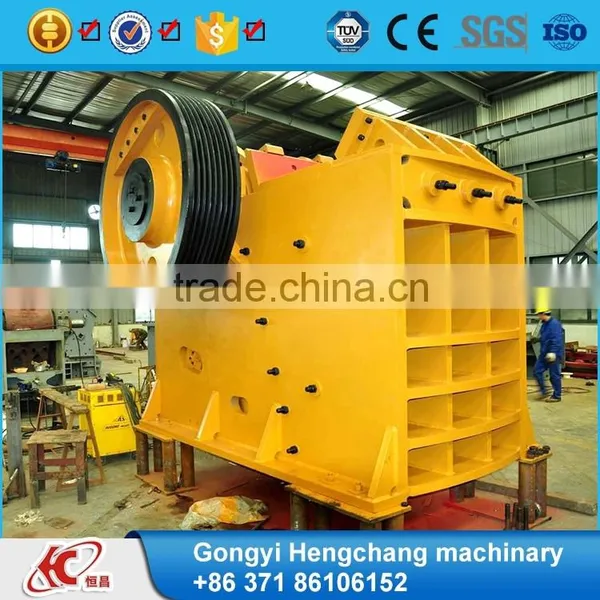

PE250*400 Small Jaw Crusher Stone Jaw Crusher Price List photo-4

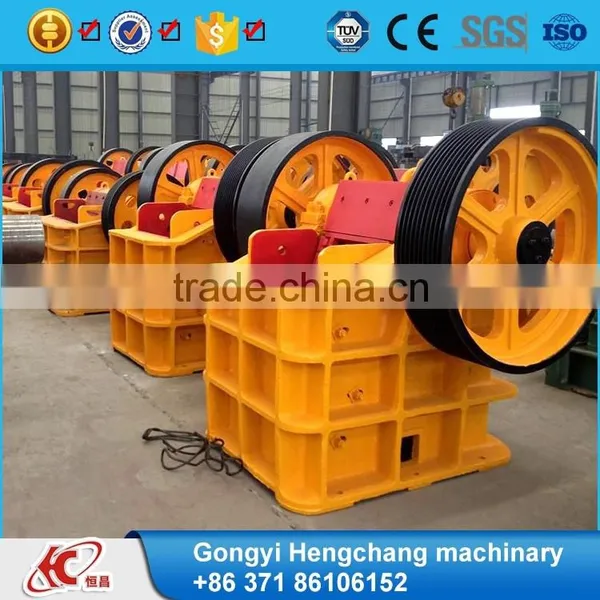

PE250*400 Small Jaw Crusher Stone Jaw Crusher Price List photo-5

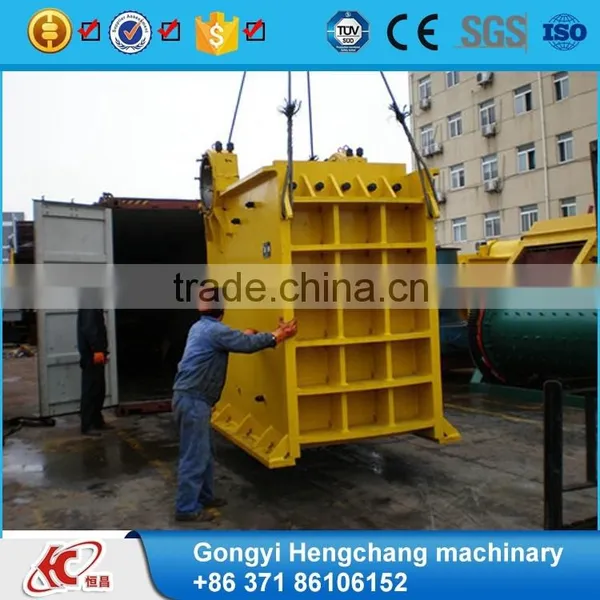

PE250*400 Small Jaw Crusher Stone Jaw Crusher Price List photo-6
US$ 1,500 - 150,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Jaw Crusher
Application:
Mining, Quary, Stone Crushing, etc.
Payment & Shipping
Payment Methods:
Port of Shipment:
Any sea port in China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Jaw Crusher
Application Mining, Quary, Stone Crushing, etc.
Motor Type AC Motor
Power(W) According to different model
Capacity(t/h) 1-500 ton/hour
Place of Origin Henan, China
Brand Name Hengchang
Model Number PE/PEX
Dimension(L*W*H) According to different model
Weight According to different model
Certification ISO9001:2008
Warranty One Year Excluding Wearing Parts
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application of PE250*400 small jaw crusher stone jaw crusher price list

PE series Jaw Crusher is mainly used to crush kinds of mining stones primarily, and the largest compression resistance of the material is 320MPa. The jaw crusher is widely used in stone mining, metallurgy industry, building material, highway, railway, and chemical industry.

Model
Max. Feeding Size
(mm)
Discharge Size
 (mm)
Capacity

(t/h)
Motor Power

(kw)
Shaft Speed

(rpm)
Weight
(kg)
PE150×250
125
10-40
1-3
5.5
285
750
PE200*300
165
15-50
2-8
7.5
265
1100
PE250*400
210
20-60
5-20
15
300
2900
PE400*600
340
40-90
25-64
30
280
6900
PE500*750
425
50-100
34-68
55
275
10500
PE600*900
480
65-160
56-192
75
250
17500
PE750*1060
630
80-140
110-242
90
250
27000
PE900*1200
750
100-200
158-256
110
250
50000
PEX150*750
125
10-40
8-35
15
300
3300
PEX250*1000
210
15-50
15-50
30
300
7100
PE2500*1200
210
15-50
20-60
45
300
8700
PE300*1300
250
20-90
20-90
75
300
11600

Main Features

-The deep crushing cavity increases the feeding capacity and output capacity;

-High ratio of crushing, homogeneous final product size;

-Adjusting the discharge opening through gasket, more convenient, it can meet different customers’ requirenment

-Lubricate system is safe and reliable, easy to change the spare parts;

-Simple structure, easy maintenance, consumption cost is lower;

-Energy-saving, for one set saving about 15%-30%;

-Little noise and dust.
Certifications
Detailed Images

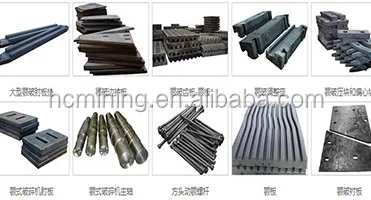

Machine Parts

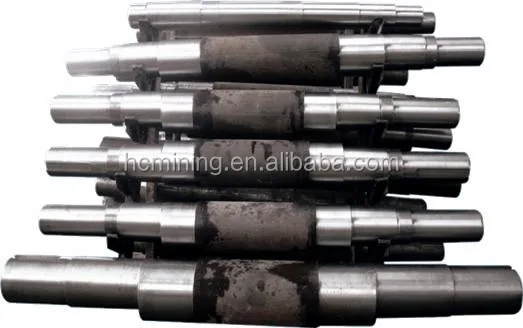

Name: Main Shaft

Main Features

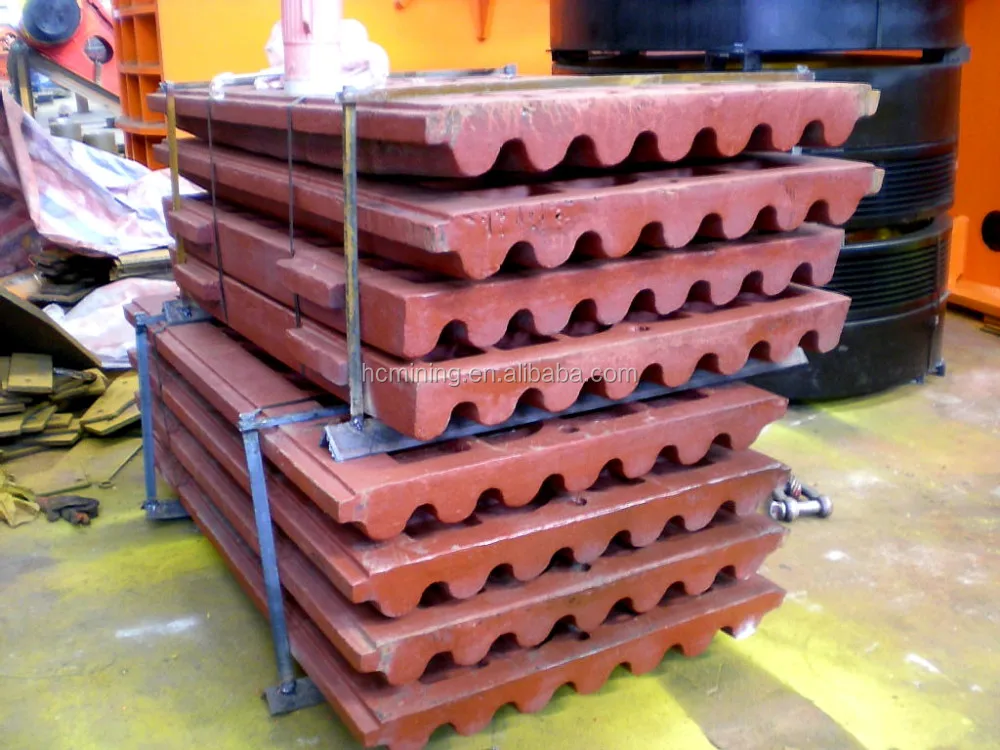

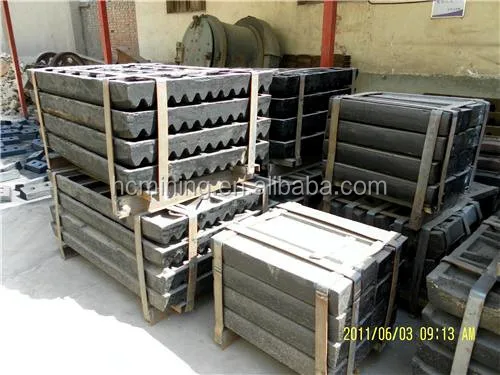

Name: Mn Jaw plate

Jaw plate is the wearing parts of  jaw crusher.

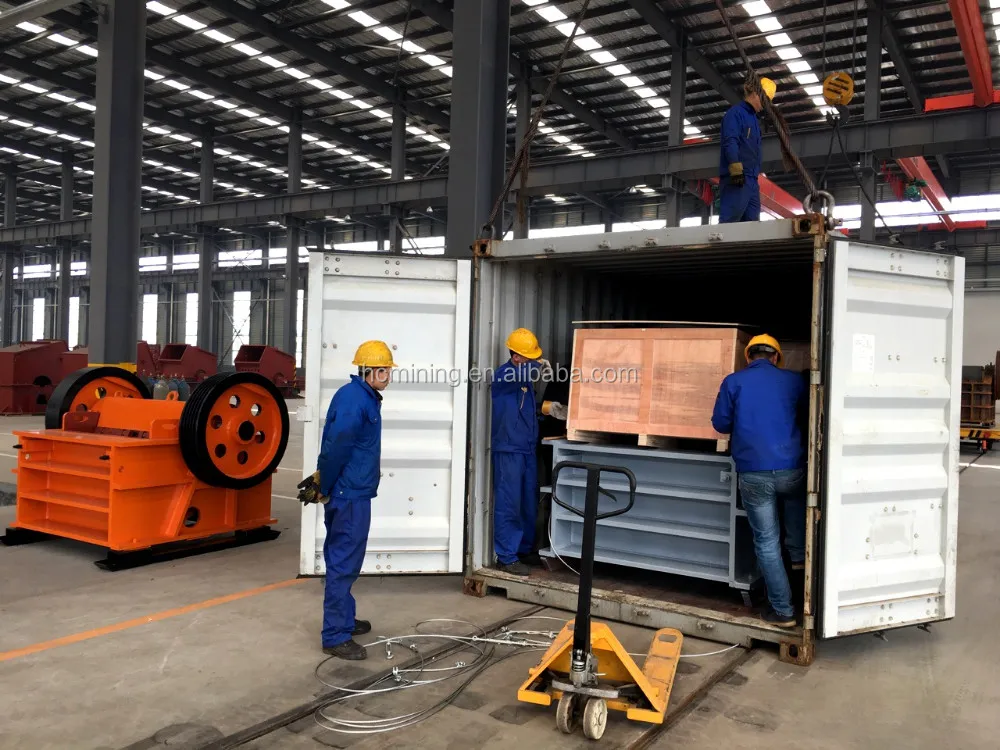

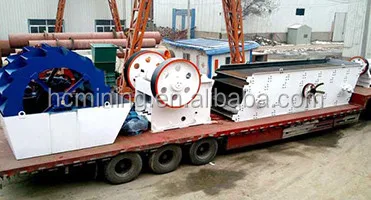

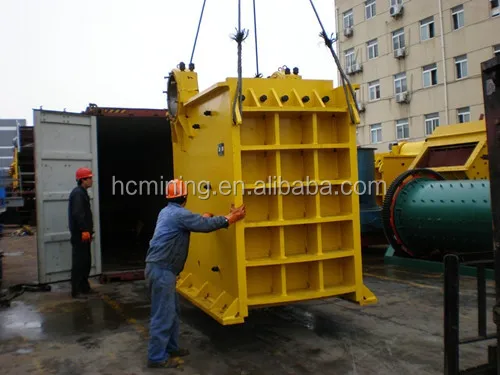

Loading container

For the big model jaw crusher, the fly wheel and motor shoue be taken while loading.

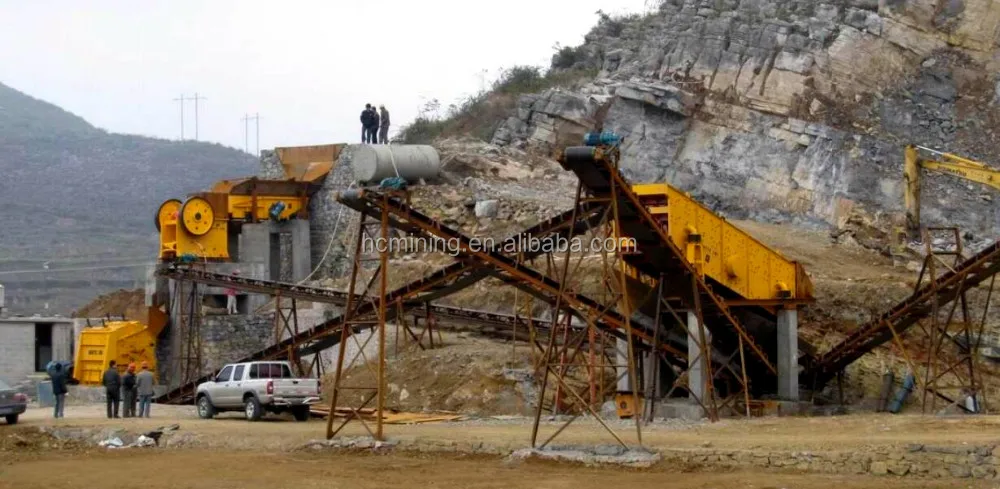

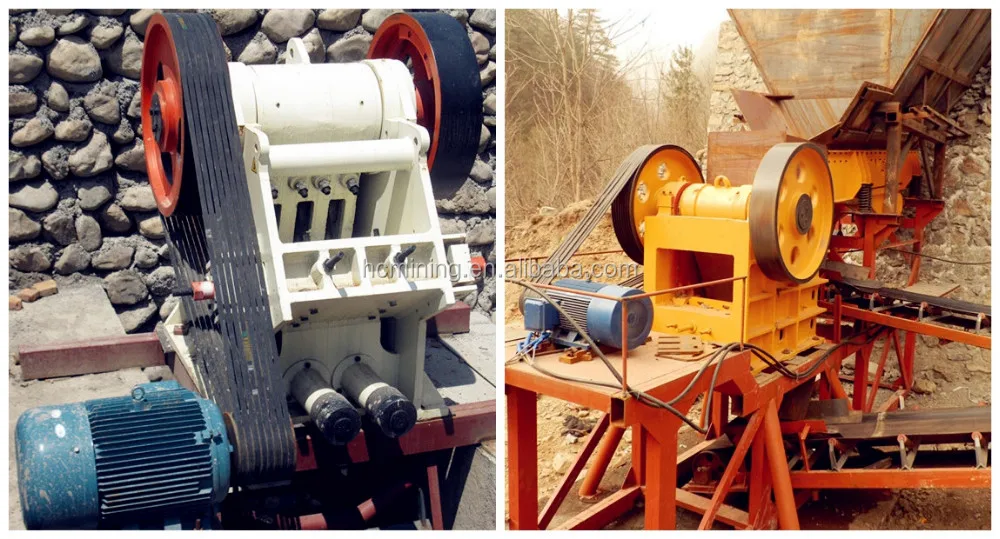

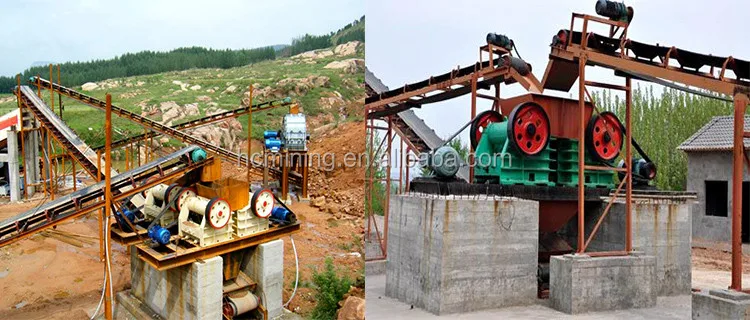

Installation Site


We provide guide installation, worker's training, trial running service after delivery.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* Project design

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* Spare parts supply

Packing & Delivery
Packaging
Size
20 feet container
Weight
15 ton



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
40 feet container
Weight
20 ton



Packaging Details
For the whole processing line or large order, we send the machine by containers.
