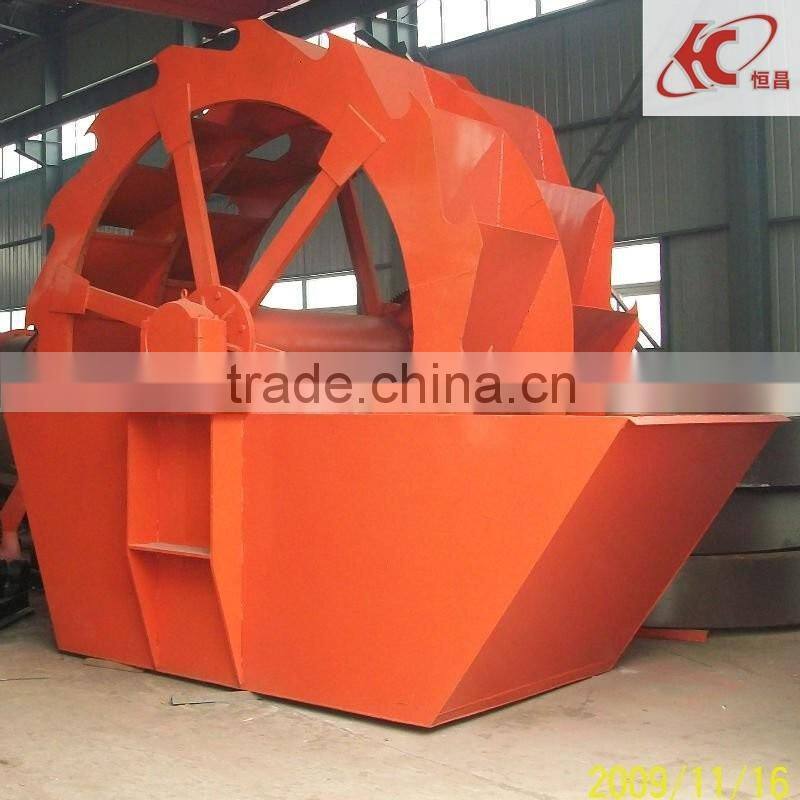

High Efficiency Sand Washing Machine Sand and Gravel Wash Plant

FOB Price

US$ 2,000 - 20,000 / Set

1 Set(Min. Order)

Port Qingdao Shanghai Tianjin
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Sprial Separator
Production Capacity	5-50t/h	Place of Origin	Henan, China
Brand Name	HC	Model Number	sand and gravel wash plant
Voltage	380V	Power(W)	5.5-22KW
Dimension(LWH)	differs to model type	Weight	3.2-9.8t
Certification	ISO9001:2008, CE	Warranty	one year except wearing parts, 12 Months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Product Application

High efficiency sand washing machine sand and gravel wash plant

LXS series spiral sand washing machine is applicable to sand washing, sand classification and dehydration the construction site, sand factory, glass factory, hydropower station, high-speed railway and highway for. It is also applies to ore dressing plant for the ore classification after ore grinding. XLS series have the advantages of low power consumption and high neatness.

Model	Spiral Dia.(mm)	Rotate Speed	input Size	Water Consumption	Capacity	Power (Kw)	Weight (Kg)
LXS -508	Φ508	(r/min)	(mm)	(T/h)	(T/h)	5.5	2670
LXS -610	Φ610	38	≤10	6-40	20-30	7.5	3800
LXS -762	Φ762	32	≤10	6-50	30-40	11	4020
LXS -914	Φ914	26	≤10	9-63	75	11	6500
LXS-1118	Φ1118	20	≤10	10-80	100	15	8690
LXS -1500	Φ1500	18	≤10	27-168	175	18.5	16580
2LXS -762	Φ762	13	≤10	27-180	220	11×2	8140
2LXS -914	Φ914	26	≤10	136-182	145	11×2	13500
2LXS-1118	Φ1118	21	≤10	120-150	200	15×2	19800

Main Features

1.Adjustable weirs

2.Sealed, submerged bearing

3.Optional automatic lubrication system

4.Rigid tank and substructure

5.Wide choice of tank design

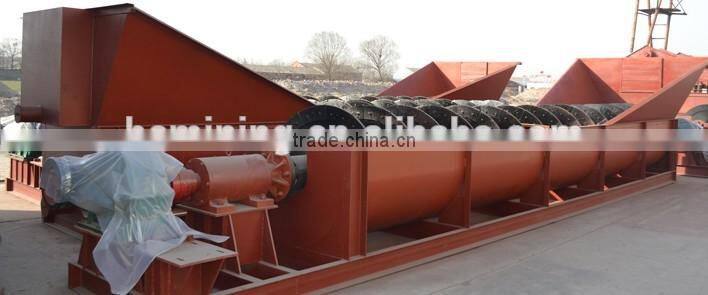

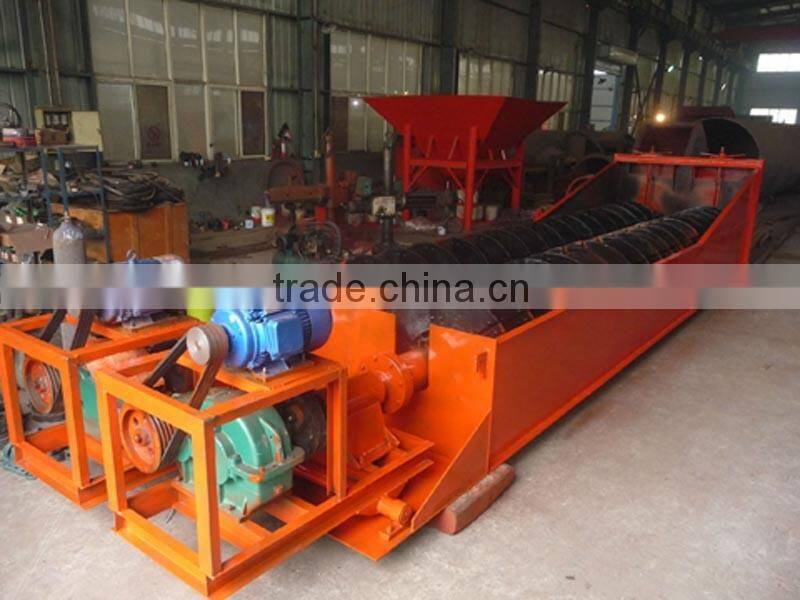

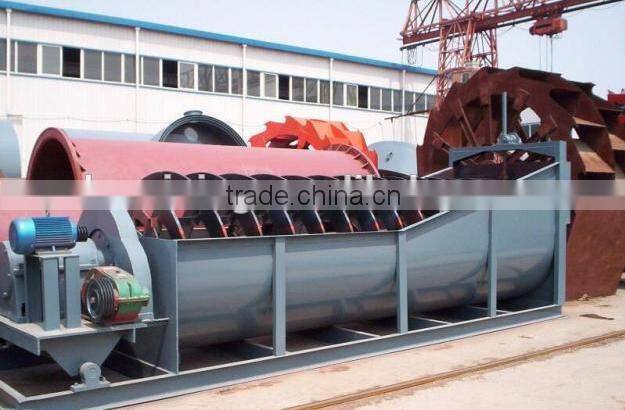

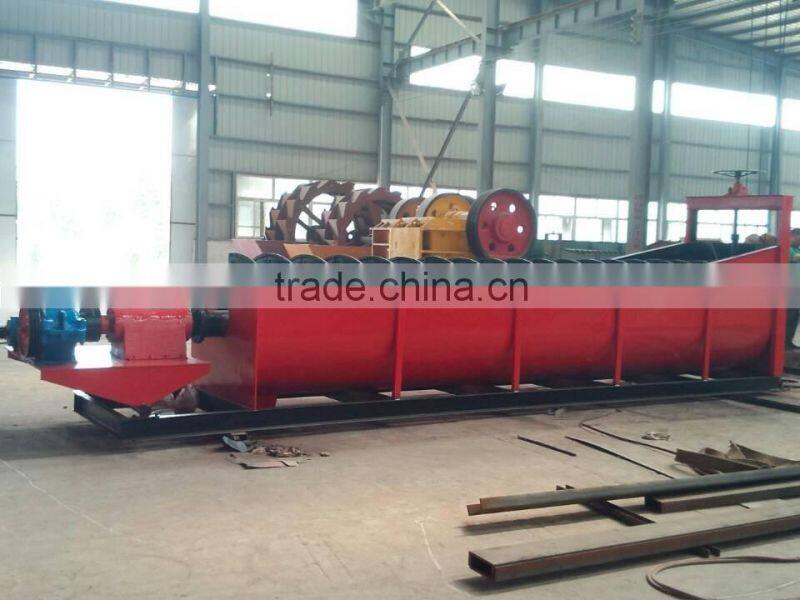

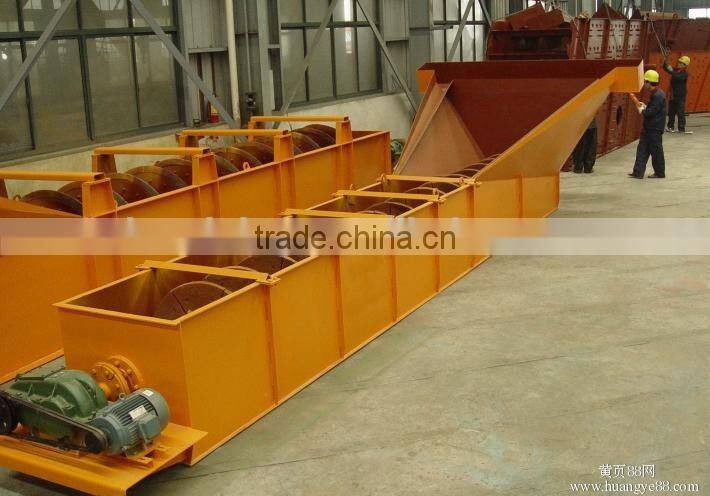

Detailed Images

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

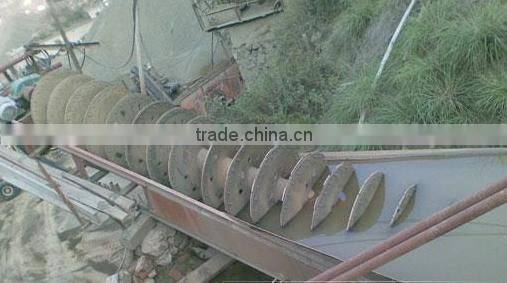

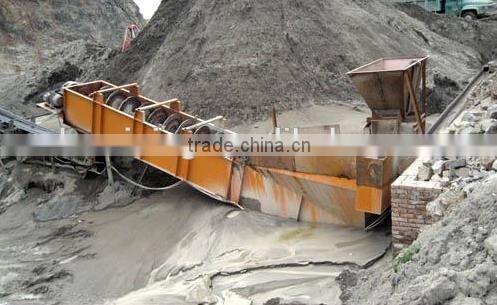

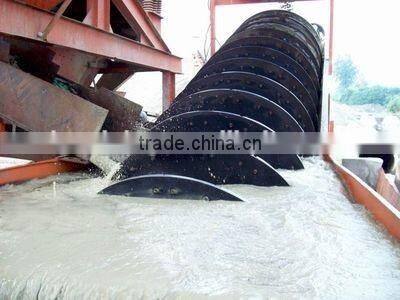

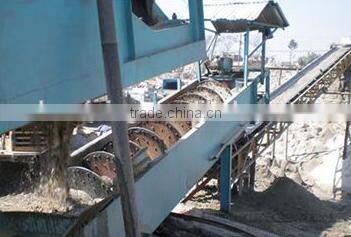

Customer plant site
