2016 hot sale sand vibrating screen separator
- 10 Set / Sets per Month
- Qingdao Tianjin Shanghai
- T/T Credit Card
Product Details
| Condition: | New | Type: | Circular | Application: | Ore |
| Place of Origin: | Henan, China | Brand Name: | Hengchang | Model Number: | YK.2YK.3YK.4YK |
| Voltage: | Required | Power(W): | 5.5-45kw | Dimension(L*W*H): | depends |
| Weight: | 1468-12068kg | Certification: | ISO9001:2008 | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

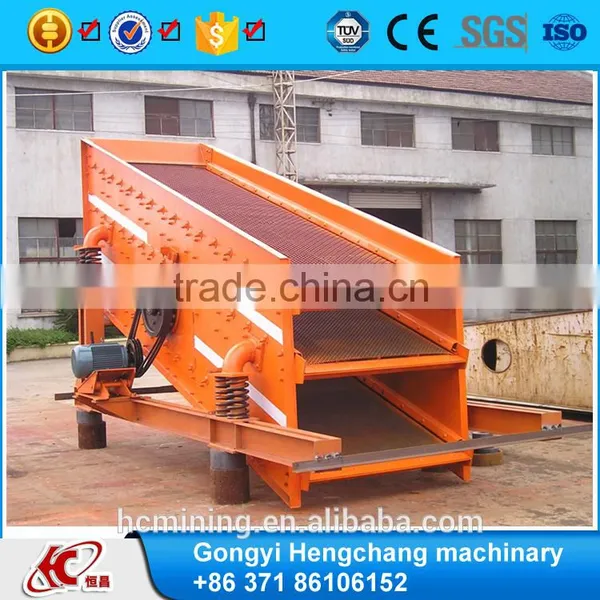

3YK1230 mining circular vibration screen for sale
Description of circular vibration screen:
Circular vibrating screen is important equipment to divided material into different size. It is widely used in mine, construction, coal dressing, energy source and chemical industry.
Circular Vibrating Screen produces vibrating force by vibrating generator, which makes screen body vibrate periodically according to vibrating direction. Materials are separated into different sizes according to different requests, and then transported to specified areas. Vibrating amplitude can be adjusted by eccentric block
Functions of circular vibration screen:
1) Grading and screening
2) Screening impurities
Technical Parameters of circular vibration screen:
Model |
Screen Deck | Installation Slope(°) | Screen Size(m2) | Screen Pore Size(mm) | Feeding Size(mm) | Capacity (t/h) | Motor Power (kw) | Weight (kg) | Dimension (LxWxH)(mm) |
YK1230 | 1 | 15 | 3.6 | 4-50 | ≤300 | 10-75 | 5.5 | 1468 | 3430×1860×1050 |
2YK1230 | 2 | 15 | 3.6 | 4-50 | ≤300 | 13-78 | 5.5 | 2253 | 3430×1860×1050 |
3YK1230 | 3 | 15 | 3.6 | 4-50 | ≤300 | 15-80 | 7.5 | 2978 | 3570×1860×1510 |
4YK1230 | 4 | 15 | 3.6 | 4-50 | ≤300 | 17-90 | 7.5 | 3892 | 3740×1860×2060 |
YK1235 | 1 | 15 | 4.2 | 4-50 | ≤300 | 20-150 | 5.5 | 1729 | 3605×2393×1050 |
2YK1235 | 2 | 15 | 4.2 | 4-50 | ≤300 | 20-150 | 5.5 | 2474 | 3605×2393×1050 |
3YK1235 | 3 | 15 | 4.2 | 4-50 | ≤300 | 22-150 | 7.5 | 3158 | 3725×1452×1200 |
4YK1235 | 4 | 15 | 4.2 | 4-50 | ≤300 | 22-150 | 7.5 | 4160 | 4010×1452×1200 |
2YK1545 | 2 | 20 | 6.75 | 5-50 | ≤300 | 22-150 | 11 | 5308 | 5042×3090×1230 |
3YK1545 | 3 | 20 | 6.75 | 5-50 | ≤300 | 50-180 | 15 | 5915 | 4972×3458×1610 |
4YK1545 | 4 | 20 | 6.75 | 5-50 | ≤300 | 50-180 | 15 | 7126 | 4915×3458×2060 |
2YK1554 | 2 | 20 | 8.1 | 5-50 | ≤300 | 50-200 | 15 | 5284 | 5830×3458×1230 |
3YK1554 | 3 | 20 | 8.1 | 5-50 | ≤300 | 56-200 | 15 | 6186 | 6110x3515x1610 |
4YK1554 | 4 | 20 | 8.1 | 5-50 | ≤300 | 56-250 | 18.5 | 7284 | 6320×3515×2060 |
2YK1854 | 2 | 20 | 9.72 | 5-80 | ≤300 | 56-200 | 18.5 | 5826 | 5880×2550×1420 |
3YK1854 | 3 | 20 | 9.72 | 5-80 | ≤300 | 56-300 | 18.5 | 7368 | 6080×2550×1610 |
4YK1854 | 4 | 20 | 9.72 | 5-80 | ≤300 | 56-300 | 22 | 8281 | 6280×2550×2160 |
2YK1860 | 2 | 20 | 10.8 | 5-80 | ≤300 | 60-400 | 22 | 6195 | 6552×3730×1320 |
3YK1860 | 3 | 20 | 10.8 | 5-80 | ≤300 | 80-400 | 22 | 7613 | 6862×3730×1610 |
4YK1860 | 4 | 20 | 10.8 | 5-80 | ≤300 | 90-500 | 30 | 8650 | 7123×3730×2061 |
2YK2160 | 2 | 20 | 12.6 | 5-80 | ≤300 | 100-720 | 22 | 6856 | 6552×3958×1320 |
3YK2160 | 3 | 20 | 12.6 | 5-80 | ≤300 | 100-720 | 30 | 9112 | 6862×3958×1610 |
4YK2160 | 4 | 20 | 12.6 | 5-80 | ≤300 | 100-720 | 30 | 10405 | 7123×3958×2061 |
2YK2460 | 2 | 20 | 14.4 | 5-80 | ≤300 | 130-750 | 30 | 8503 | 6552×4208×1320 |
3YK2460 | 3 | 20 | 14.4 | 5-80 | ≤300 | 130-750 | 37 | 10411 | 6862×4208×1610 |
4YK2460 | 4 | 20 | 14.4 | 5-80 | ≤300 | 130-750 | 45 | 12068 | 7123×4208×206 |
2) Order execution service: Provide equipment layout draw, foundation draw and detail equipment manauls. Timely report you the manufacturing schedule and related photos for keep monitoring.
3) After-sales service: Dispatch engineer to the site to guide installation, debugging and training operators. Installation and operation workers are offered if you need.
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry etc.
Thank you for your interest in Gongyi Hengchang Metallurgy Building Material Equipments Plant.
We look forward to new and old customers come to visit, study, trade negotiations, and we would like to cooperate and develop with you hand in hand
Tel:86-0371-86106152
Website:
Contact Us
- Gongyi Hengchang Metallurgical Building Material Equipments Plant
- Contact nameXingqi Li
- Phone86-371-86106152
- AddressEast Sec. Of Guangling Road, Gongyi
-
