Specifications
low power consumptionmulti-lanaguage,easy operation
durable,longer services life
better prices and professional services

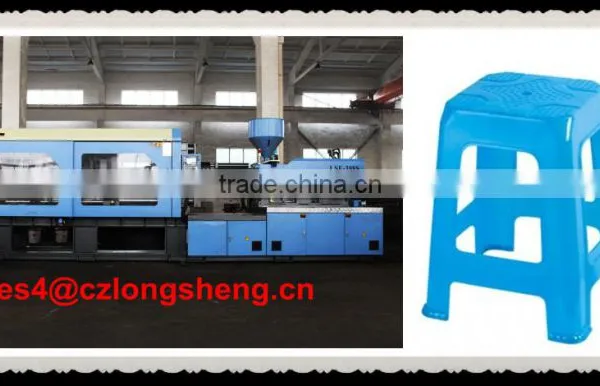

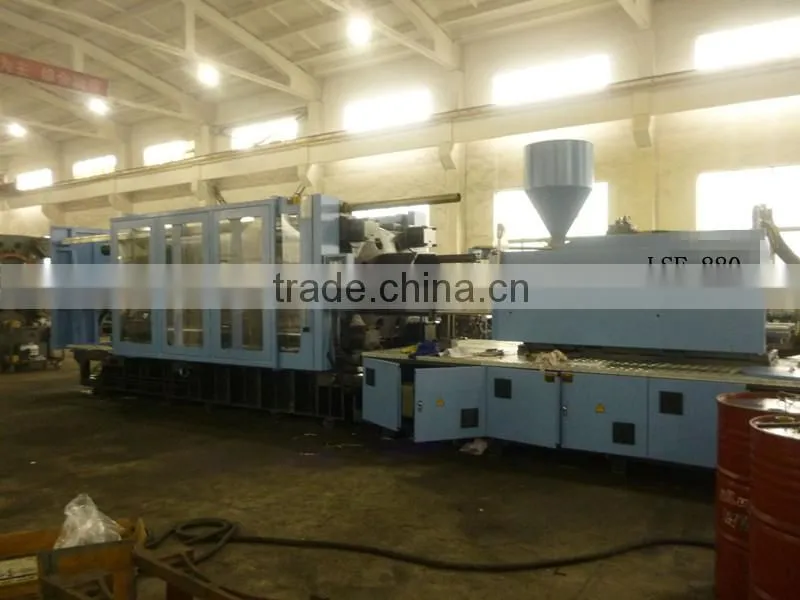

plastic chair injection moulding machine
We have small, medium and large chair making machines, which can meet all kinds of your chair production requirements.
Our strong technical team always offer timely and professional services which will give technology and production support to every customer.

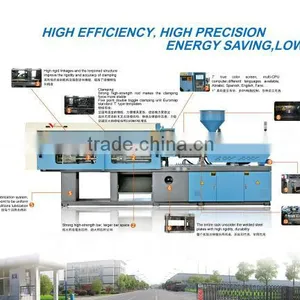

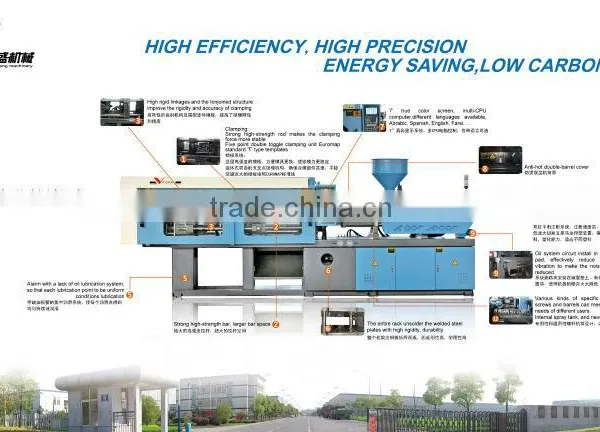

Features:

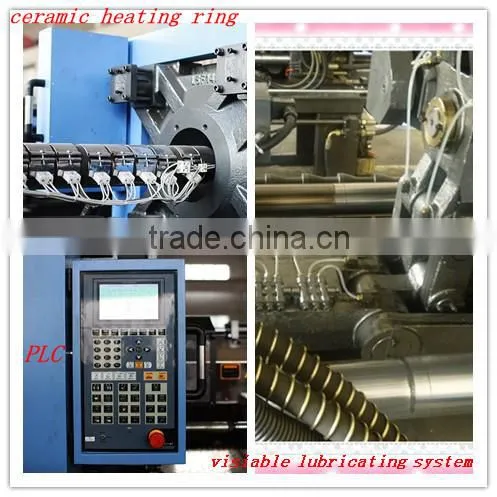

1) LCD computer control with big display screen
2) Hydraulic double proportional valve
3) Hard chrome plated high tensile strength steel tie bars
4) Generous space for fitting large moulds
5) Large opening stroke
6) Two position transducers to control Clamping and Injection
7) Four stages of injecting, independent velocity and pressure control
8) Hydraulic mould height adjustment device
9) Screw cold-start prevention device
10) Melt decompression control
11) Screw back pressure control
12) Multiple hydraulic ejection
13) Differential high speed clamping
14) Centralized lubrication system
15) Low pressure mould protection device
16) Mechanical safety interlock
17) Double electrical safety interlock
18) Oil return filter
19) Oil tank with inner stainless steel container
|
INJECTION UNIT |
|
Unit |
LSF-800 |
|||
|
A |
B |
C |
|||
Screw Diameter |
Mm |
|
110 |
115 |
120 |
|
Screw L/D Ratio |
L/D |
|
21 |
20.1 |
19.3 |
|
Short Size |
Cm3 |
|
4372 |
4778 |
5201 |
|
|
Injection weight |
G |
|
3979 |
4348 |
4733 |
|
oz |
|
129 |
141 |
154 |
||
Injection Pressure |
Mpa |
|
185 |
152 |
128 |
|
Screw Speed |
Rpm |
100 |
||||
|
CLAMPING UNIT |
Clamp Force |
KN |
8000 |
|||
Space Between Tie Bars |
mm |
1000*1000 |
||||
Toggle Stroke |
mm |
1000 |
||||
Max. Mold Height |
mm |
1120 |
||||
Min. Mold Height |
mm |
420 |
||||
Ejector Stroke |
mm |
320 |
||||
Ejector Tonnage |
KN |
235 |
||||
|
|
|
||||
|
OTHERS |
Max. pump Pressure |
Mpa |
16 |
|||
Pump motor powder |
Kw |
37+45 |
||||
Heater Power |
Kw |
60 |
||||
Oil tank capacity |
L |
1750 |
||||
Machine Dimension(L*W*H) |
M |
11.2*2.5*3.2 |
||||
Machine Weight |
T |
50 |
||||
one year guarantee
24 hours technical support by email
calling or door to door services
