Specifications
power saving by 60% With longer working lifeCeramic heating system
competitive prices and timely services
short cycle time

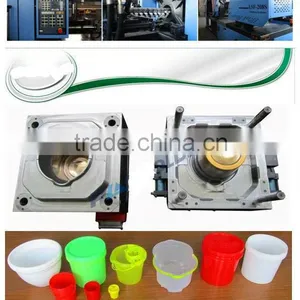

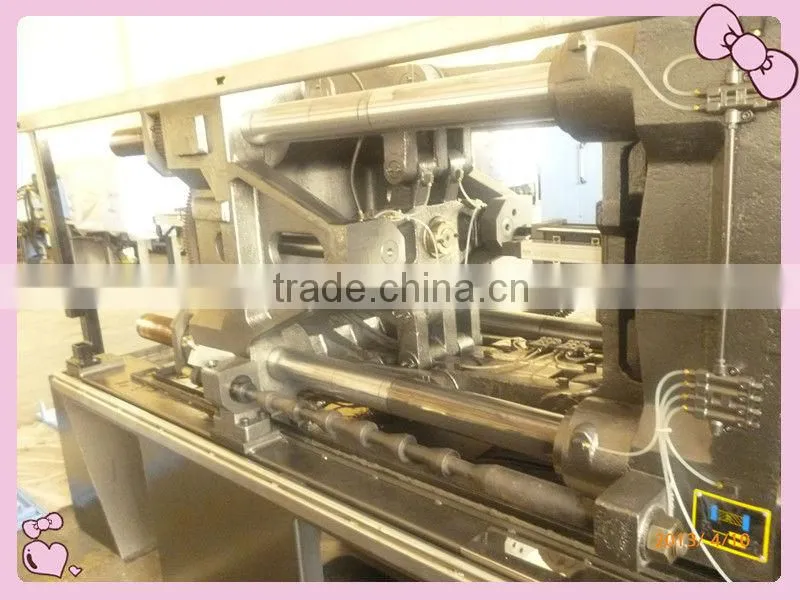

1-50L bucket injection molding machine
We are professional manufacturer of Injection molding Machine with different series, clamping from 600 to 32000KN, injection weight from 68g to 40570g,welcome contact us for more information.
TECHNICAL PARAMETER---LSF258
|
INJECTION UNIT |
|
Unit |
LSF-258 |
||
A |
B |
C |
|||
Screw Diameter |
Mm |
50 |
55 |
60 |
|
Screw L/D Ratio |
L/D |
24 |
21.8 |
20 |
|
Short Size |
Cm3 |
504 |
610 |
726 |
|
Injection weight |
G |
459 |
555 |
661 |
|
Injection Rate |
g/s |
32 |
146 |
174 |
|
Injection Pressure |
Mpa |
223 |
184 |
155 |
|
Screw Speed |
Rpm |
0-190 |
|||
|
CLAMPING UNIT |
Clamp Force |
KN |
2580 |
||
Space Between Tie Bars |
mm |
560X530 |
|||
Toggle Stroke |
mm |
505 |
|||
Max. Mold Height |
mm |
560 |
|||
Min. Mold Height |
mm |
200 |
|||
Ejector Stroke |
mm |
150 |
|||
Ejector Tonnage |
KN |
62 |
|||
Ejector Number |
P |
9 |
|||
|
OTHERS |
Max. pump Pressure |
Mpa |
16 |
||
Pump motor powder |
Kw |
22 |
|||
Heater Power |
Kw |
16 |
|||
Machine Dimension(L*W*H) |
M |
5.5X1.6X2.1 |
|||
Machine Weight |
T |
7.1 |
|||
Oil Tank Capacity |
L |
420 |
|||
INTRODUCTION :
1.Reliable plastic injection machine with servo motor ,equiped with servo motor , closed loop control for pressure and flow .low noise,high precision and energy saving .
We design,manuafcture and supply our own brand of injection molding machine called "Longsheng" with clamping force ranged from 600kn to 16800kn, injection weight from 80g to 10000g, and can provide custom-built machine.
2.Inject all kinds of plastic parts, bottle preform, engineering plastic, UPVC, PVC, PE pipes fitting, pomponents for automotive, household, eletronics, telecommunication, ETC
